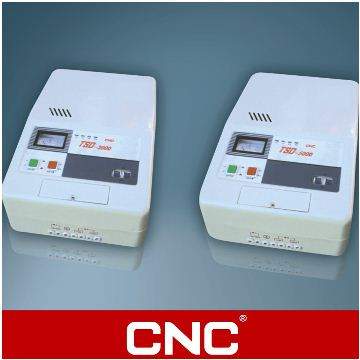

TSD Series Hanging-Style High Accuracy AC Voltage Stabilizer

Name: TSD Series Hanging-Style High Accuracy AC Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 681995005
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIP,others
Min Order:	20/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	High Frequency
Usage:	SVC
Phase:	Three Phase
Current Type:	AC

Product Description

TSD Series Hanging-style High Accuracy AC Voltage Stabilizer

General:
This series product is developed on the base of TND series high accuracy full-automatic AC voltage stabilizer. It forms the control system with linear integrated circuit, and drive the contact voltage regulator to start regulating by controlling the servo motor, it is provided with delay, over-voltage, under-voltage, over-current protection function to ensure the safety of the power supply. It has the advantage of high efficiency, no waveform distortion, stable output voltage, less electric consumption and can work continuously.

1. Exellent quality of output voltage, no transient electricity lost phenomenon.
2. Wide input voltage range, strong load adaptability.
3. With the over-current protection, under-voltage, over-voltage protection.
4. With two indicating for inout and output voltage.
5. Hanging installed with two output choice: Voltage regulating or direct output.

It is available in the power supply of the electric equipment and facilities in housing, factory, school, shop, office, precision instrument for science experiment.

	TSD 3000VA	TSD 5000VA	TSD 7000VA	TSD 10000VA
Max. rated output current	12A	20A	28A	40A
Input voltage rangge	160V~250V
Output voltage	220V± 3%, 110V± 4%			220V± 3%
Output over-voltage protection value	246± 4V
Output under-voltage protection value	184± 4V
Output voltage delay time	5± 2min
Frequency	50Hz / 60Hz
Regulating speed	< 1s (when input voltage varies 10%)
Temperatur-rise	< 60 º Cunder full-load condition
Rated output capacity	3000VA	5000VA	7000VA	10000VA
Ambient temp & relative humidity	-5º C~+40º C less than 90%
Efficiency	> 90%
Waveform distortion	no additional distortion
Withstand voltage	1500V /1min

Overall Size & Weight ( for reference only)

Model	Specification & capacity (VA)	Overall size (WDL) mm	TQY(PC)	Package size/set(WDL) mm	Gross weight kg	Net weight kg
Model	Specification & capacity (VA)	Overall size (WDL) mm	TQY(PC)	Package size/set(WDL) mm	Gross weight kg	Net weight kg
Single-phase hanging style TSD	TSD-500	185× 280× 125	4	460× 350× 340	17.5	16
	TSD-1000	185× 280× 140	4	460× 350× 360	21	19
	TSD-2000	185× 280× 140	4	460× 350× 360	38	36
	TSD-3000	260× 390× 160	1	310× 430× 185	12.5	11.5
	TSD-5000	280× 440× 165	1	350× 470× 225	17.8	17
	TSD-7000	280× 440× 165	1	350× 470× 225	23	21.8
	TSD-10000	300× 450× 180	1	385× 560× 280	26.5	25.5
