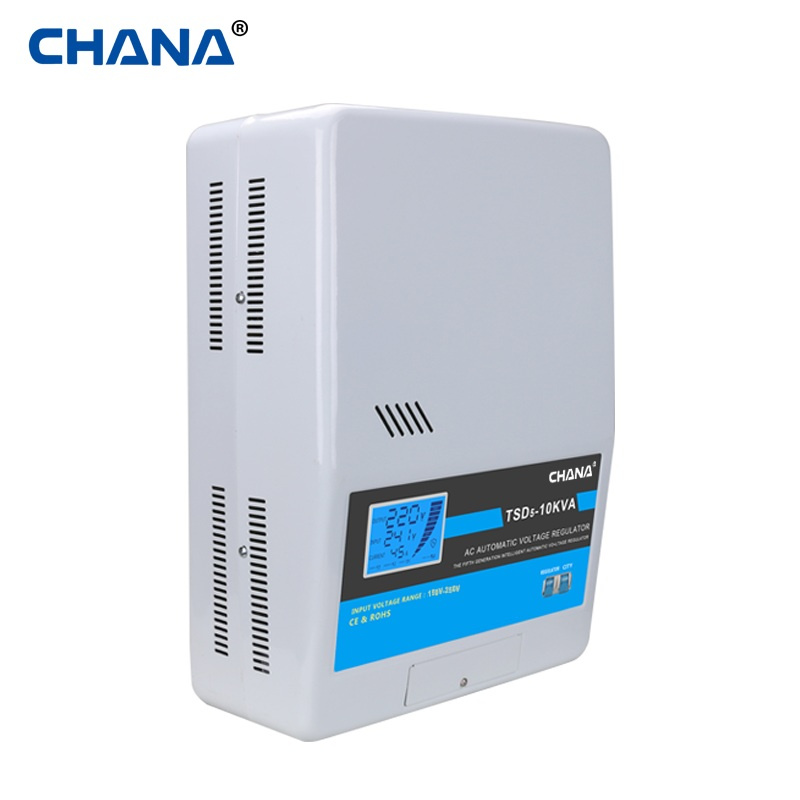

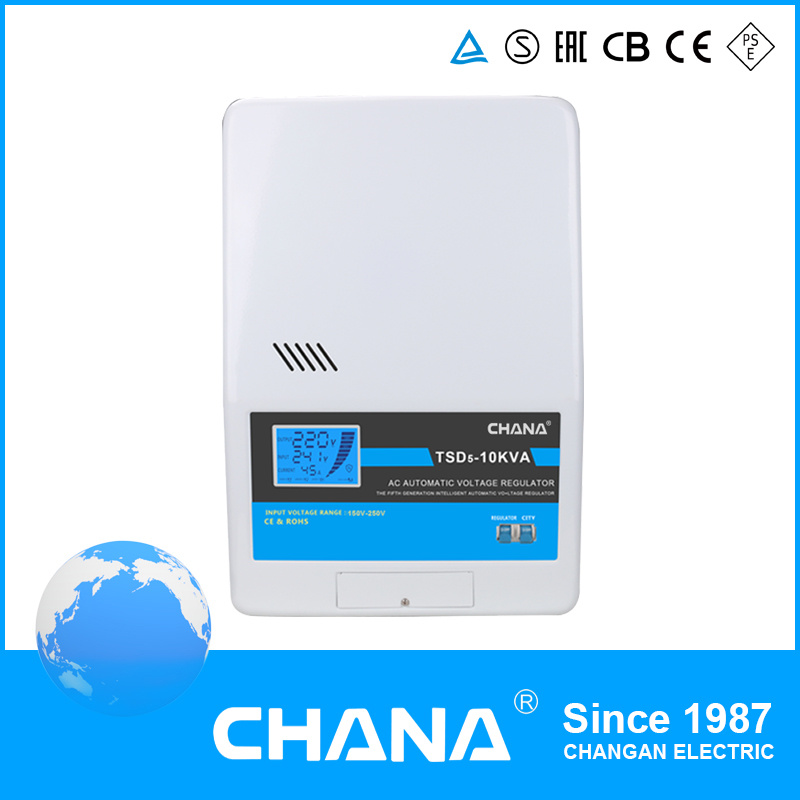

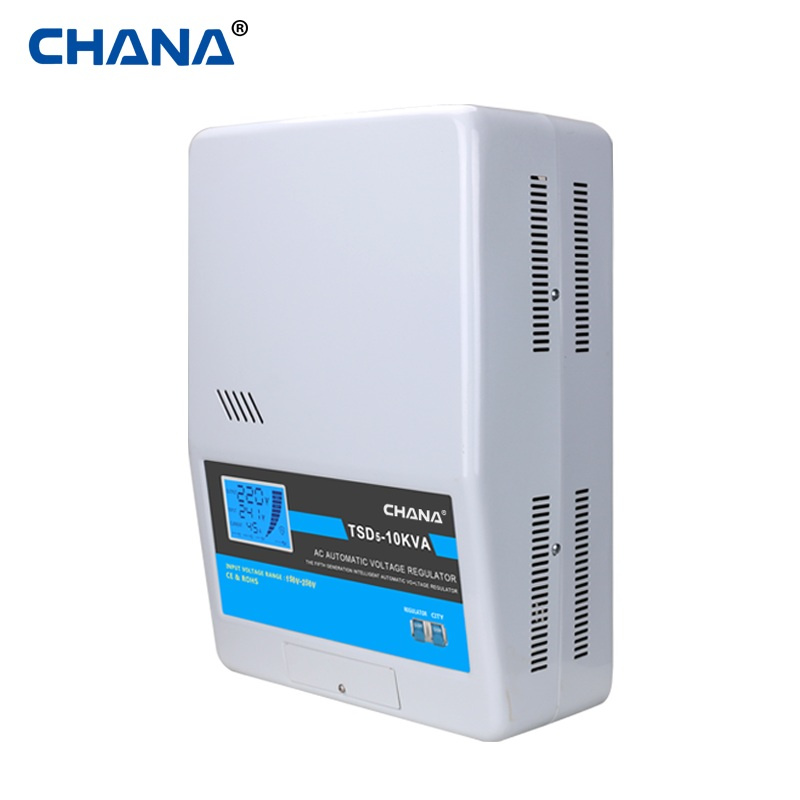

Tsd5 Wall-Mounted Series Voltage Regulator

Name: Tsd5 Wall-Mounted Series Voltage Regulator
Brand: all-electronics-online.com
SKU: 744539085
Availability: InStock
Rating: 4.5 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSD5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturer:	Original Factory
Company Size:	Over 2000 Stuff
Company Credit Rate:	AAA
Company Location:	Yueqing Wenzhou
Current Type:	AC
Phase:	Single Phase
Usage:	Tsd5 Wall-Mounted Voltage Regulator
Frequency:	Industrial Frequency
Brand:	Chana or OEM

Product Description

Introduction
TSD series wall-mounted voltage regulators have delay,over voltage,under voltage,over heat,over load protections.it also has bypass function.it is widely applied in home,hospitals,offices etc.

Technical Parameter

Input Voltage	130V-250V
Output Voltage	220V
Accuracy	3%
Frequency	50/60HZ
Efficiency	>90%
Adjust Time	<1S
Temperature	-10ºC ~ +40 ºC
Insulation Resistance	>5M
Waveform Distortion	No waveform distortion
Protect Function	Over voltage,over current,under voltage protection,over heat protection
Delay Time	(Long time Delay) 52min

Dimension,Package

Model (KVA)	Rated Power (KVA)	Net Weight (KG)	Size (Width×Depth×Height) CM
TSD5-3K	3	27	392615
TSD5-5K	5	32	412818
TSD5-8K	8	40	412818
TSD5-10K	10	45	412818
TSD5-12K	12	51	324420.5

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
