Tsm1 MCCB Moulded Case Circuit Breaker

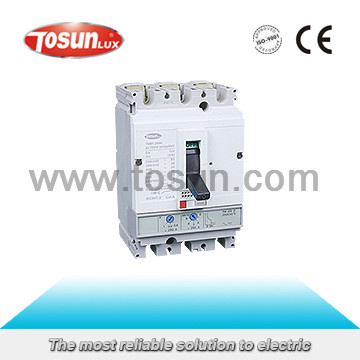

Name: Tsm1 MCCB Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 754786695
Availability: InStock
Rating: 4.4 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSM1-250N 3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	up to AC 690V
Rated Current:	12.5A-1600A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	TUV
Function:	Overload, Short-Circuit, Undervoltage

Product Description

APPLICATION

1. TSM1 Moulded Case Circuit Breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology.

2. Suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 1600A.

3. Rated insulation voltage: 690V.

4. It can make and break the non-frequent circuit in the normal conditions.

5. It takes protect effect when squirrel-cage motors non-frequent start, breaking off working and protecting
overloads, short circuit and lacking voltage.

6. It complies with IEC60947-2.

SPECIFICATION

Type	Rated Current (A)	Number of Phase	Rated Insulating Voltage (V)	Rated Ultimate Short Circuit Breaking Capacity lcs at380/415V (kA)	Rated Service Short Circuit Breaking Capacity lcs at380/415V (kA)	Operating Performance (times)
						ON	OFF
TSM1-100N	12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100	3, 4	750	25	25	1500	8500
TSM1-100H				70	70
TSM1-100L				150	150
TSM1-160N	16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160			36	36	1000	7000
TSM1-160H				70	70
TSM1-160L				150	150
TSM1-250N	160, 180, 200, 225, 250			36	36	1000	7000
TSM1-250H				70	70
TSM1-250L				150	150
TSM1-400N	315, 350, 400			45	45	1000	4000
TSM1-400H				70	70
TSM1-400L				150	150
TSM1-630N	400, 500, 630			45	45	1000	4000
TSM1-630H				70	70
TSM1-630L				150	150
TSM1-1250N	800, 1000, 1250			50	37.5	1000	4000
TSM1-1600N	1000, 1250, 1600			50	37.5

WHY US?

1. Clients' benefit first.

2. Experinced in the line for more than 21 years.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

6. Unique design for packing.

7. Experienced salesmen offer one-to-one service.

FOR MORE INFORMATION

www.tosun.com
www.tosunlux.com

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
