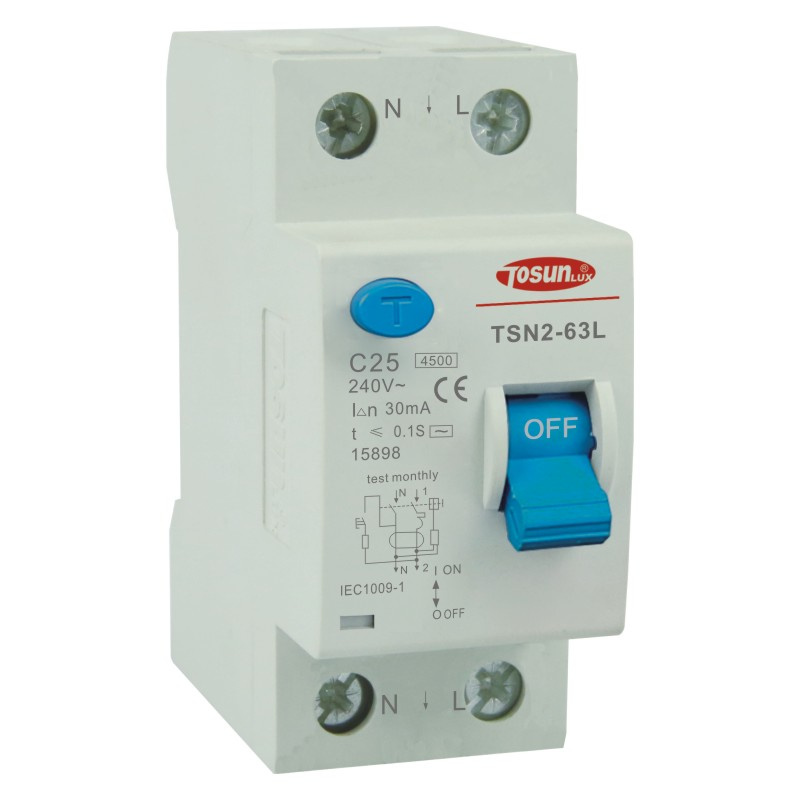

Tsn2-63L Residual Current Operated Circuit Breaker

Name: Tsn2-63L Residual Current Operated Circuit Breaker
Brand: all-electronics-online.com
SKU: 822388515
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 3-4/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSN2-63L
Rated Current:	6, 10, 20, 25, 32A
Rated Residual Operating Current:	10, 30, 100 Ma
Rated Residual Non-Operating Current:	5, 15, 50 Ma
Max. Breaking Time:	IΔn: 0.1s,2IΔn: 0.05s,0.25/500A: 0.04s
Rated Voltage:	240V
Insulation Voltage:	500V
Electrical Life:	≥6000 Operations
Mechanical Life:	(O-C) ≥20000 Operations
Protection Degree:	IP20
Characteristic:	B, C
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Certification:	TUV
Poles Number:	1p+N

Product Description

Application:
TSN2-63L RCBO is used in the single phase circuit of AC 50/60Hz, rated voltage240V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time. It also protect person from electric shock when the live wire connected opposite.

The products comply with the standards of IEC61009.

Specification:

Number of Poles	1P+N
Rated Current(A)	6,10,16,20,25,32,40,50,63
Related Residual Operating Current I△N(mA)	30
Related Residual Non-Operating Current I△NO(mA)	15
Type	AC, A
Short Circuit Capacity (Icu) (A)	6000
Rated Voltage(v)	240
Characteristic	B, C
Residual Current Off-time (s)	≤0.1
Protection Degree	IP20
Dimensions	84x70x36mm

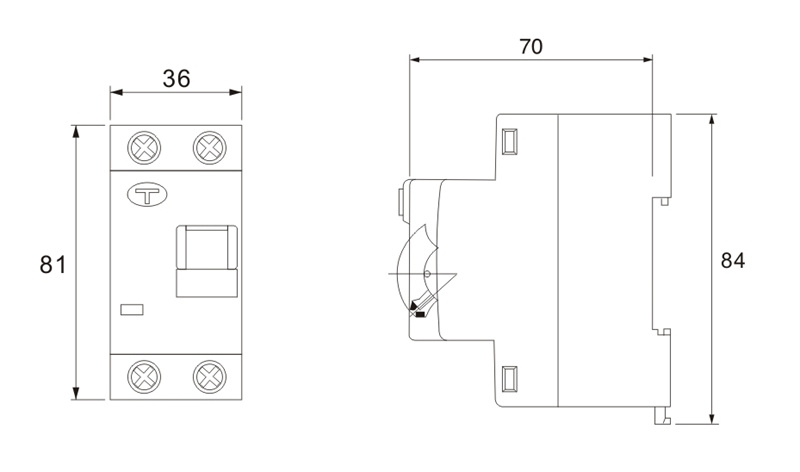

Dimensions (mm)

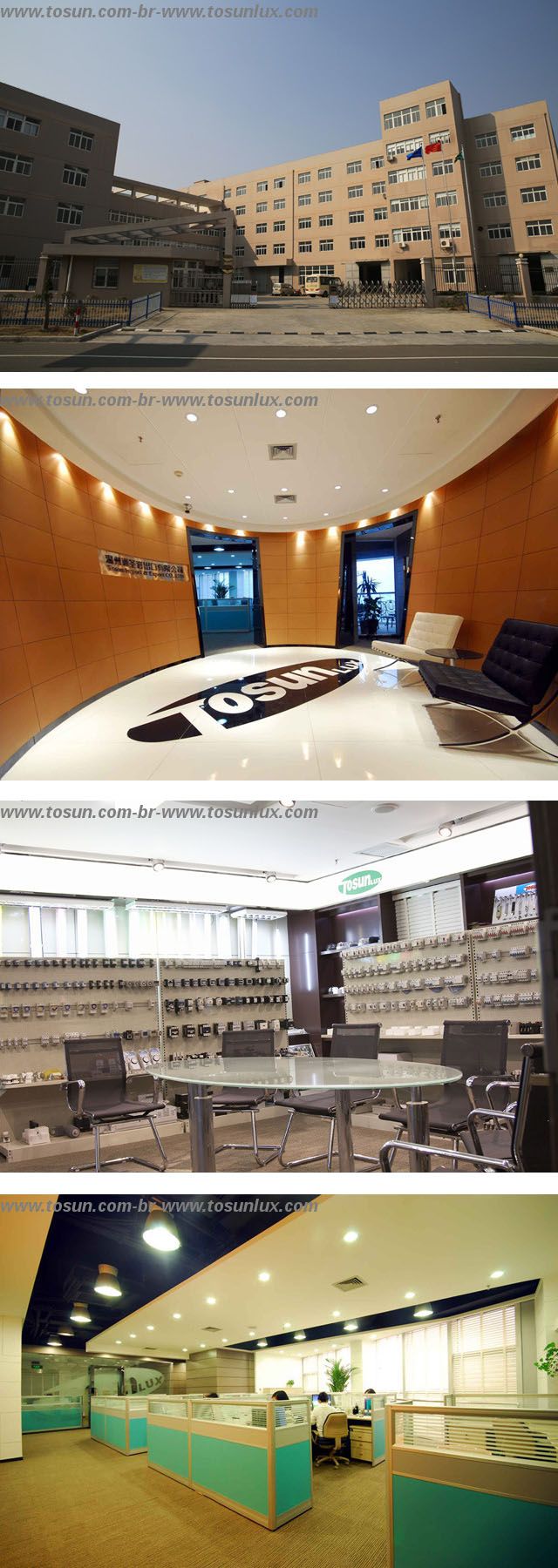

About Tosun Electric

Why us?
1. Clients' benefit first.
2. Over 24 years' experience.
3. Reasonable price and good source of raw material.
4. A group of professional inspectors monitor quality.
5. TUV, SEMKO, CE, CB, ROHS Approval for products.
6. Unique design for packing.
7. Experienced salesmen.

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
