Tu Spade Naked Terminal

Name: Tu Spade Naked Terminal
Brand: all-electronics-online.com
SKU: 682649475
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	Negotiable
Trade Terms:	by Sea, by Air, by Express
Min Order:	10000/Piece

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

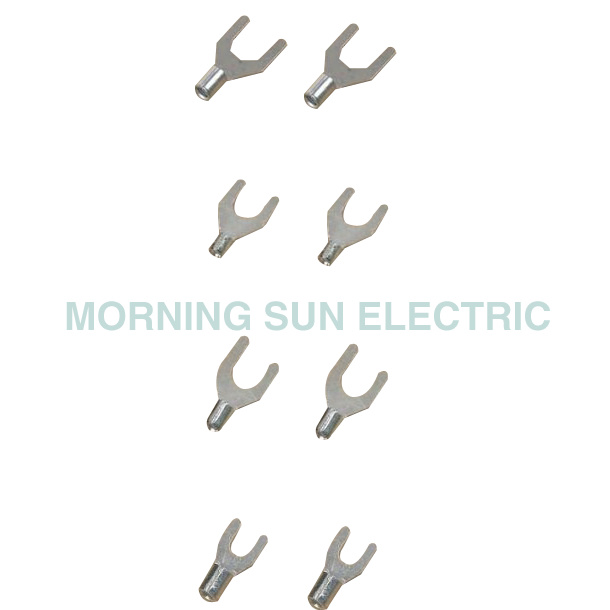

Tu Spade Naked Terminal

0.5-1.5mm 2 (22-16) 2max=19A

ITEM. NO.	USA screw	screw dia. d2(mm)	DIMENSION
ITEM. NO.	USA screw	screw dia. d2(mm)	B(mm)	L(mm)	F(mm)	E(mm)	D(mm)	d(mm)
SNB 1.25-3	#4	3.2	5.7	16.0	6.5	4.8	3.4	1.7
SNBS 1.25-3.5	#6	3.7	5.7	16.0	6.5
SNBL 1.25-3.5	#6	3.7	6.4	16.0	6.5
SNBS 1.25-4	#8	4.3	6.4	16.0	6.5
SNBM 1.25-4	#8	4.3	7.2	16.0	6.5
SNBL 1.25-4	#8	4.3	8.1	16.0	6.5
SNBS 1.25-5	#10	5.3	8.1	16.0	6.5
SNBL 1.25-5	#10	5.3	9.5	16.0	6.5
SNBS 1.25-6	1/4	6.4	9.5	16.0	6.5
SNBL 1.25-6	1/4	6.4	12.0	22.0	11.0

1.5-2.5mm 2 (16-14) 2max=27A

ITEM. NO.	USA screw	screw dia. d2(mm)	DIMENSION
ITEM. NO.	USA screw	screw dia. d2(mm)	B(mm)	L(mm)	F(mm)	E(mm)	D(mm)	d(mm)
SNB 2-3	#4	3.2	5.7	16.0	6.5	4.8	4.1	2.3
SNBS 2-3.5	#6	3.7	5.7	16.0	6.5
SNBL 2-3.5	#6	3.7	6.4	16.0	6.5
SNBS 2-4	#8	4.3	6.4	16.0	6.5
SNBM 2-4	#8	4.3	7.2	16.0	6.5
SNBL 2-4	#8	4.3	8.1	16.0	6.5
SNBS 2-5	#10	5.3	8.1	16.0	6.5
SNBL 2-5	#10	5.3	9.5	16.0	6.5
SNBS2-6	1/4	6.4	9.5	16.0	6.5
SNBL 2-6	1/4	6.4	12.0	22.0	11.0

2.5-4mm 2 (14-12) 2max=37A

ITEM. NO.	USA screw	screw dia. d2(mm)	DIMENSION
ITEM. NO.	USA screw	screw dia. d2(mm)	B(mm)	L(mm)	F(mm)	E(mm)	D(mm)	d(mm)
SNB 3.5-3	#4	3.2	5.7	18.3	7.0	6.0	5.0	3.0
SNB 3.5-4	#8	4.3	8.0	18.3	7.0
SNB 3.5-5	#10	5.3	8.0	18.3	7.0
SNB 3.5-6	1/4	6.4	12.0	21.5	12.1

4-6mm 2 (12-10) 2max=48A

ITEM. NO.	USA screw	screw dia. d2(mm)	DIMENSION
ITEM. NO.	USA screw	screw dia. d2(mm)	B(mm)	L(mm)	F(mm)	E(mm)	D(mm)	d(mm)
SNB 5.5-3.5	#8	3.7	8.3	19.5	7.5	6.8	5.6	3.4
SNBS 5.5-4	#10	4.3	8.3	19.5	7.5
SNBL 5.5-4	#8	4.3	9.0	19.5	7.5
SNB 5.5-5	#10	5.3	9.0	19.5	7.5
SNBS 5.5-6	1/4	6.4	9.0	19.5	7.5
SNBL 5.5-6	1/4	6.4	12.0	25.5	12.0
SNB 5.5-8	5/16	8.4	14.0	24.5	11.5

ITEM. NO.	USA screw	screw dia. d2(mm)	DIMENSION
ITEM. NO.	USA screw	screw dia. d2(mm)	B(mm)	L(mm)	F(mm)	E(mm)	D(mm)	d(mm)
SNB 8-4	#8	4.3	8.7	23.0	6.0	8.5	7.2	4.5
SNB 8-5	#10	5.3	12.0	24.5	5.7	8.5	7.2	4.5
SNB 8-6	1/4	6.4	12.0	24.5	5.7	8.5	7.2	4.5
SNB 8-8	5/16	8.4	14.5	28.0	8.3	8.5	7.2	4.5
SNB 14-6	1/4	6.4	12.0	28.0	7.5	10.5	9.0	5.8
SNB 14-8	5/16	8.4	14.0	28.0	7.5	10.5	9.0	5.8
SNB 22-8	5/16	8.4	14.0	34.5	9.0	12.0	11.5	7.7

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
