| Prod Model: |
ZS-Solarcable16-6-193 |
| Supplier's Nature: |
Manufacturer |
| Specification Type: |
4mm2,6mm2,10mm2 |
| Section -Cross Dia: |
1.5-35mm2 |
| Norminal Voltage: |
Uo/U-600/1000V |
| Temp. Rating: |
-45°c ~ 125°c Max |
| Features: |
Low Smoke Zero Halogen |
| Range Of Application: |
PV Power Generation System |
| Certificate: |
ISO, TUV, CCC, IEC |
| ODM: |
Ok |
| OEM: |
Ok |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Certification: |
TUV |
| Insulation Material: |
PV |
| Sheath Material: |
PV |
| Wire Core Material: |
Tinned Copper |
| Model: |
Zs-Solarcable16-6-193 |
| Brand: |
Dayuan |
Product Description

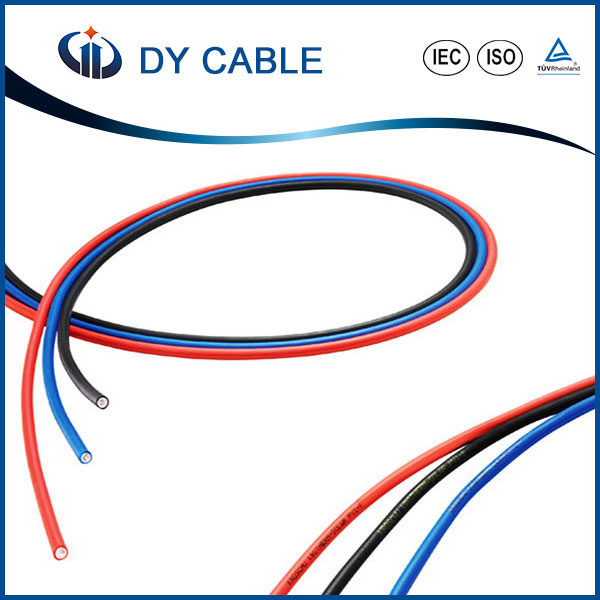

UL and TUV Approved 2.5mmsq/4.0mmsq/6.0mmsq PV Solar Power Cable
Executive Standard:
PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).
No-haogen PV-Cable Type:
PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.
Application:
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
Solar Cable Information
| Item | Performance | Parameter |
| 1 | conductor | tinned copper wire |
| 2 | insulation | XLPO |
| 3 | jacket | XLPO |
| 4 | color | black, red, blue... |
| 5 | rated voltage | AC: 0.6/1kv; DC:1.8kv |
| 6 | working temperature | -40ºC~+90ºC |
| 7 | projected lifetime | 25years |
| 8 | certification | TUV |
| 9 | features | Low smoke zero halogen,
excellent properties of cold-resistant,
UV-resistance, ozone-proof and weather-proof.
Flame retardant, resistance to cut marks and penetration. |
Single Core Solar Cables Main type specification
Please note that we can make as your requirements
| Type | Sectional area
(mm2) | Conductor | Insulation | Jacket | Weight(kg/km) |
| No./dia | dia | mm | Dia | mm | Dia |
| PV1-F | 1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 0.80 | 4.70 | 37.4 |
| PV1-F | 2.5 | 49/0.25 | 2.10 | 0.75 | 4.10 | 0.80 | 5.20 | 64.6 |
| PV1-F | 4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 0.80 | 5.70 | 64.6 |
| PV1-F | 6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 0.80 | 6.30 | 85.6 |
| PV1-F | 10 | 84/0.4 | 4.70 | 0.75 | 6.20 | 0.80 | 7.80 | 142.1 |
| PV1-F | 16 | 126/0.4 | 5.80 | 0.75 | 7.30 | 0.80 | 8.90 | 197.7 |
| PV1-F | 25 | 196/0.4 | 7.60 | 0.75 | 9.10 | 0.80 | 8.90 | 197.7 |
Double Core Solar Cables Main type specification
| Type | Sectional area
(mm2) | Conductor | Insulation | Jacket | Weight(kg/km) |
| No./Dia | Outer dia | Thickness | Dia | Thickness | Dia |
| PV1-F/Round | 2x1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 1.00 | 8.20 | 98.6 |
| PV1-F/Round | 2x2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 1.00 | 9.20 | 131.2 |
| PV1-F/Round | 2x4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 1.00 | 10.20 | 171.0 |
| PV1-F/Round | 2x6 | 78/03 | 3.20 | 0.75 | 4.70 | 1.00 | 11.40 | 225.8 |
| PV1-F/Flat | 2x1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 0.80 | 4.7x9.5 | 76.2 |
| PV1-F/Flat | 2x2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 0.80 | 5.2x10.5 | 100.4 |
| PV1-F/Flat | 2x4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 0.80 | 5.7x11.5 | 130.7 |
| PV1-F/Flar | 2x6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 0.80 | 6.3x12.7 | 172.7 |
About Package
simple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement
About Asian Sun Group(Dayuan Cable)
1: Group with seven sub-companies
2: Factory about 200,081 square meters;
3: 800 staffs and 40 engineers, 11 production lines;
4: production capacity: 100,000m/day.
Our service
1) Inquiries are answered within 12 hours and OEM is welcome.
2) 11 production lines, experienced QC to control the quality of kinds of cables.
3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.
4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.\
5) Ship your order immediately after contracted. We ship worldwide.
6) 800 staffs and 40 engineers, we all glad to provide you best service.
