| Prod Model: |
pv1-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Norminal Voltage: |
600/1000 V AC/ 1000/1800V DC |
| Test Voltage: |
6500V;50Hz |
| Temperature Rating: |
45 Centigrate Upto 125 Centigrate |
| Ambient Temperature: |
-40 Centigrade up to 90 Centigrade |
| Smoke Emission: |
IEC 61034;En50268-2 |
| Fire-Resistance Performance: |
IEC 60332-1 |
| Approvals: |
TUV 2pfg 1169/0.8. 2007 PV1-F |
| Warranty: |
25 Years |
| Name: |
TUV Approved Electrical DC Solar PV Cable 6mm |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Photovoltaic Solar Station |
| Insulation Material: |
XLPE |
| Certification: |
PSE/TUV |
| Conductor Material: |
Tinned Copper |
| Sheath Material: |
Polyolefin Copolymer Electron-Beam Cross-Linked |
| Material Shape: |
Flat Cable or Round Cable |
| Range Of Application: |
Photovoltaic Power Station |
| Brand: |
Jiukai |
Product Description

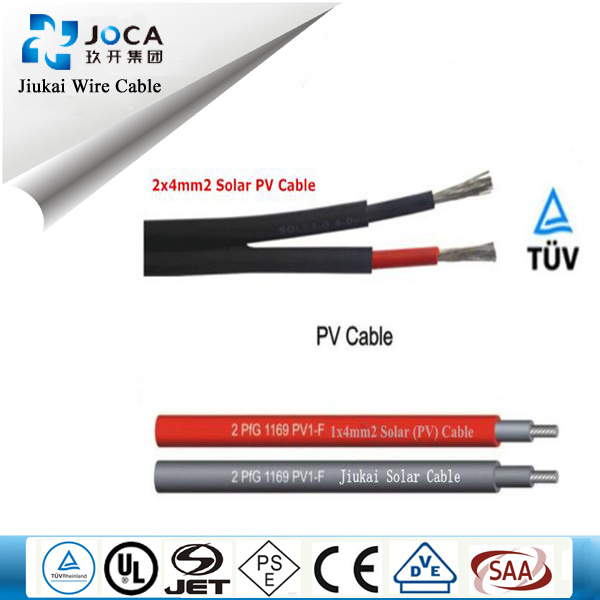

TUV Approved Electrical DC Solar PV Cable 6mm for Photovoltaic System
Product Description &Parameters of solar power cable| Construction | Conductor Construction | Insulation Thickness | Sheath Thickness | Outer ø | Resistance Max. | Current Carring Capacity | Approx Weight |
| n×mm² | n/m | mm | mm | mm | Ω/Km | A | Kg/Km |
| 2×1.5 | 30/0.25 | 0.7 | 0.8 | 8.3±0.2 | 13.3 | 30 | 7.2 |
| 2×2.5 | 50/0.25 | 0.7 | 0.8 | 9.2±0.2 | 7.98 | 41 | 9.4 |
| 2×4.0 | 56/0.3 | 0.7 | 0.8 | 12.0±0.2 | 4.75 | 55 | 14.2 |
| 2×6.0 | 84/0.30 | 0.8 | 0.9 | 13.5±0.2 | 3.39 | 70 | 20 |
| 2×10.0 | 142/0.30 | 0.9 | 1.1 | 17.6±0.2 | 1.95 | 98 | 29 |
| 2×16.0 | 228/0.30 | 1.1 | 1.1 | 19.8±0.2 | 1.24 | 132 | 43 |
Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c -40°F upto +257°F
Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X Occasionally moved>5X

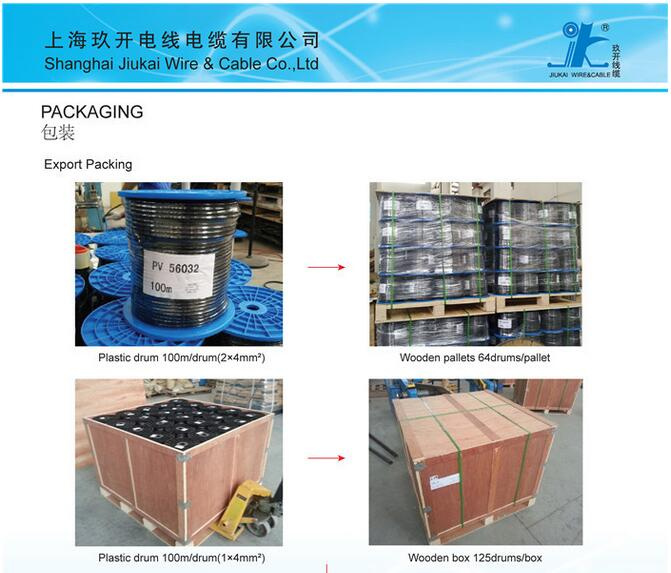

Packaging &Shipping of solar power cable

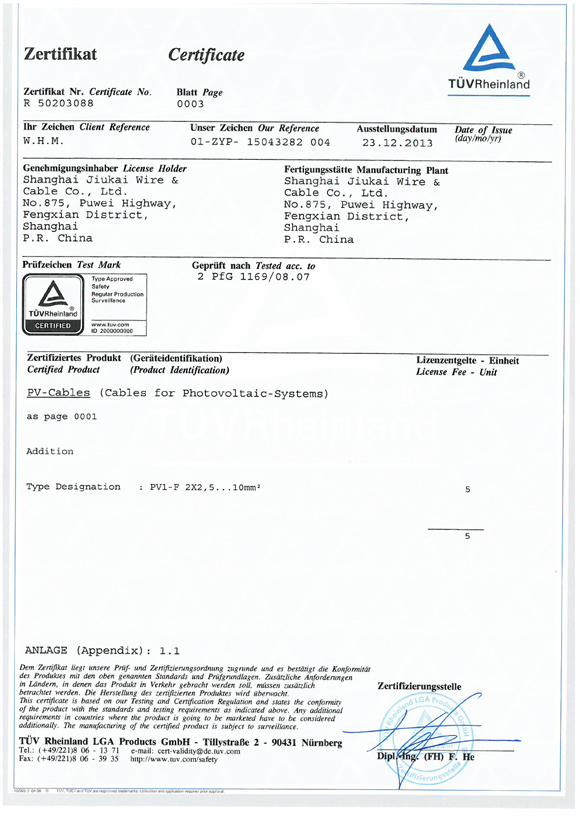

Certification of solar power cable
Related Product of solar power cable
MC4 solar cable connetor
Rated voltage | 1000v |
Rated current | 22A(2.5mm2)/30A(4/6mm2) |
Contact resistance of plug connectors | ≤5m |
Dia. Of pin or socket | MC4 4mm/MC3 3mm |
Protection degree (mated/unmated) | Ip67/IP2X |
Operating temperature | -40ºC+85ºC |
Insulation material | PC/PA/PPO/TPE |
Contact material | Sliver plated copper |
Locking system | Snap in |
Cable cross section on request | MC4 2.5/4.0/3.0mm2/MC3 2.5/4.0mm2 |
Why choose us for solar power cable
- Be cost-effective from factory
- Cooperation partner of a big brand
- 25 years warranty
- We passed CE / FCC / RoHs / TUV /UL
- Free sample

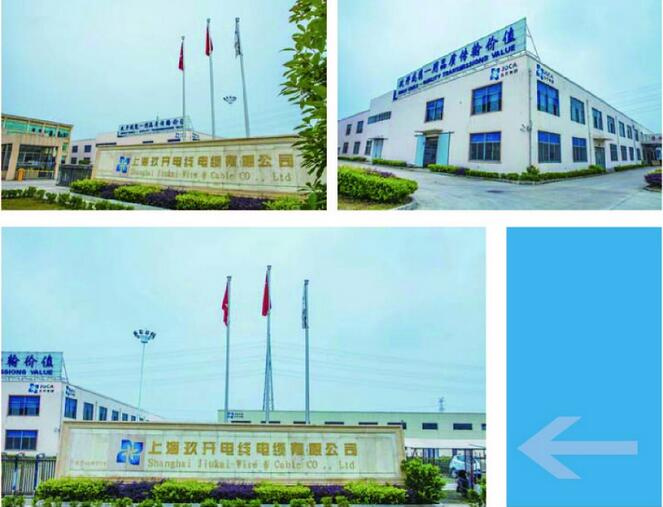

Company information for solar power cable
We consistently dedicate to the R&D, production and sales of wires and cables.We mainly produce nearly 10 categories(thousands of kinds) cables, such as audio&video cable, elevator cable, data cables, computer cable, CAT5E LAN cable, CAT6E LAN cable, solar pv cable, UL wire, flexible cable and special cable., And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE Certificate, German TUV, Quality System certification certificate ISO9001:2000
FAQ of solar power cableQ:How long is the product's service life?
A: Very long service life more zhan 25 years at 90ºC
Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibility
Q:Scope of application?
A:Compatible to all popular connectors
Q:What is the size of your company?
A:JOCA holding group is an enterprise group, integrated research, manufacture & trade.
The group has he group total registered capital RMB 250 million & occupied area 1800 thousand sqm including building area 1000 thousand sqm.
The group has more than 800 sets nowadays domestic & foreign advanced cable equipment, yearly production capacity RMB 1.6 billion,600 employees and nearly domestic & overseas representative offices or branch companies.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.
Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico
