| Prod Model: |
HBY090-11/22TS |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
22mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V,300V,500V.600V |
| Termianl: |
Screw Terminal |
| IP: |
IP40 |
| Crust Material: |
Plastic |
| Switch Rating: |
10A/600V AC |
| The Front Shape: |
Mushroom |
| Operation Pressure: |
4n |
| Operation Stroke: |
About 2.5 mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Contact Type: |
Za |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description

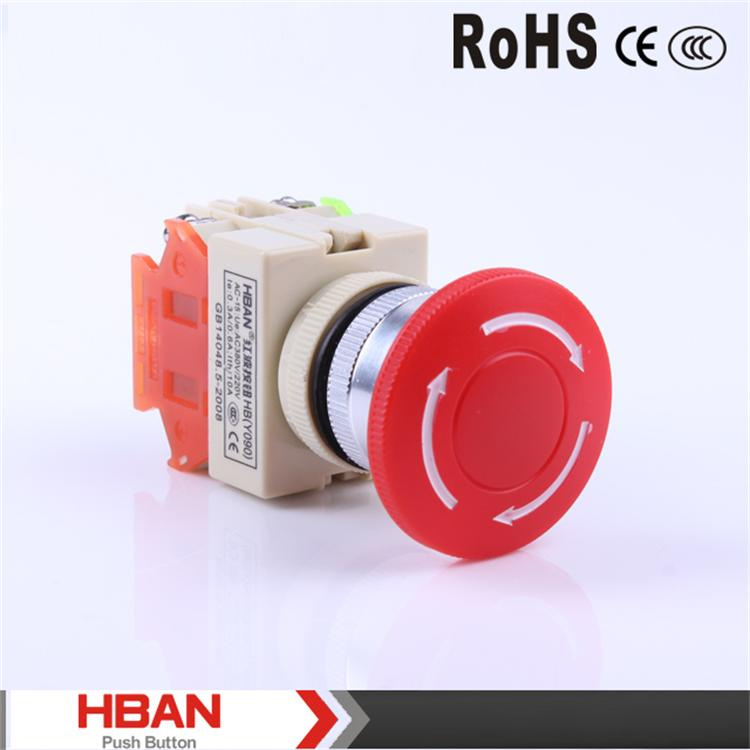

Premeters:Emergency stop push button switch
Mounting Hole Size: Φ 22mm
Contact Configuration: 1NO1NC
Operation Type: Latching
Protection Degree: IP40, ( IP65 Can be made to order )
Tel: 0086-577-62708000 Fax: 0086-577-62708007
| Working Temperature | -25°C ~ +55°C No frozen |
| Protection Degree | IP40 |
| Workenvironment humidity | 45-85%RH |
| Contact material | Silver cadmium oxideS ilver plated gold plating thickness |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100mΩ |
| Contact between lamp bead pin | 2000VAC |
| Between same class terminal | 1000VAC |
| Between different electrode terminal | 2000VAC |
| Vibration proof | 50HZ,Amplitude about 1.2mm |
| Impact resistance | Greater than 10g |
| Mechanical Life | 1,000,000 times |
| Electric Life | Above 30,000 times |
| Operating distance | button about3mm |
| Solder heat resistance | Not more than 3 seconds when 230°C |
| Specified value of the switch |
| Rated insulation voltage | AC600V |
| Heating current | 10A |
| Rated current | 24V | 48V | 110V | 220V | 380V | 500V |
| DC | 8A | 4A | 2.2A | 1.1A |
|
|
| PF=0.7AC |
|
| 10A | 6A | 4A | 2A |
Product pictures:
Packing details:We pack each diameter 22mm plastic push button switches packed into a small box separately. Then will put 10 small boxes into a 3 layers corrugated inner box with 1 piece of guarantee card. Finally, we packed 50 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
About Us:
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more
Than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other i
Ndustries.
We can customize push button switch according to your specification, If you have
Any requirement or question, please feel free to contact us.
FAQ
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
Within 15 days

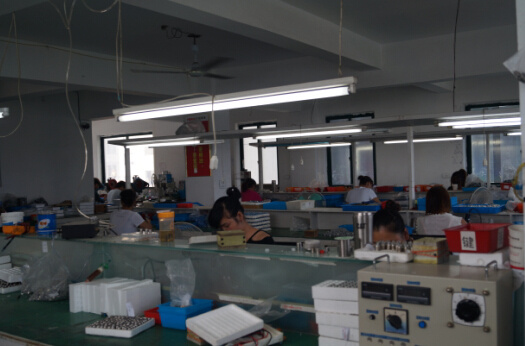

Company information

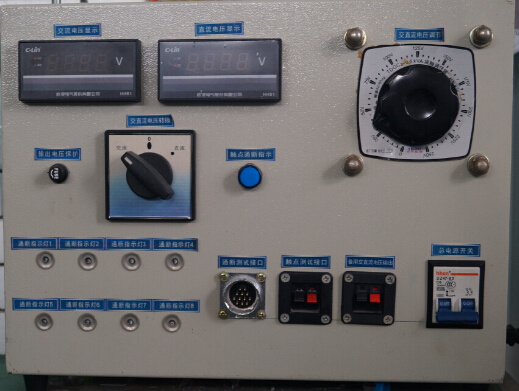

Testing product
packing information
Product application
Tel : 0086-577-62708000 Fax : 0086-577-62708007
mobile:+8615098072722
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
