| Prod Model: |
HBS1-AGQH-11E/11EZ/S/22E. 22EZ |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
19mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik09 |
| Crust Material: |
Stainless Steel |
| Switch Rating: |
5A/250V AC |
| The Front Shape: |
Flat Round |
| Operation Pressure: |
3.5n |
| Operation Stroke: |
About 3.1mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
TUV RoHS |

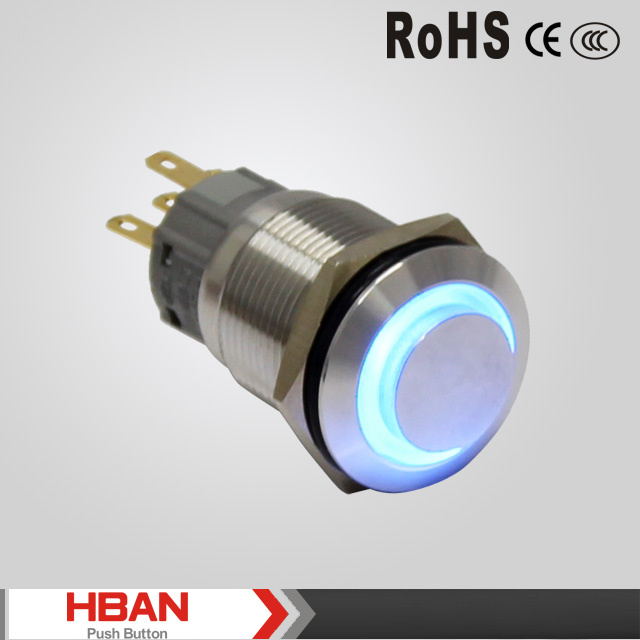

Product Description
Premeters:TUV UL ROHS HBAN 19MM power symbol TUV UL push button illuminated switchesPart Number: HBS1-AGQ-11D/T/S 11DZ/T/S 22D/T/S 22DZ/T/S 11E/T/S 11EZ/T/S 22EZ/T/S.
1. Mounting Hole Size: Φ 19mm
2. Switch Rating: 5A/250VAC
3. Contact Configuration: 1NO1NC, 2NO2NC
4. Operation Type: Momentary/Latching
5. TheFront Shape: Flat Round
6. The Crust Meterial: Stainelss steel
7. Protection Degree: IP67, IK09
8. Terminal Type: Pin Terminal
9. Illuminated type: DOT
10. Rated voltage: 6V/12V/24V/110V/220V
11. Color: R/G/Y/O/B/W
12. Lamp life: 50000 Hours
| Item No. | HBS1-AGQH-11E/S | HBS1-AGQH-11EZ/S |
| Specification | Ring 1NONC Momentary | Ring 1NO1NC Latching |
| Item No. | | HBS1-AGQ-22E/S HBS1-AGQ-22EZ/S |
| Specification | | Ring 2NO2NC Momentary Ring 2NO2NC Latching |
| Item No. | | HBS1-AGQ-E/S |
| Specification | | Single Lamp |
| Front Head Shape | | High Round |
| Terminal Type | | Pin Terminal (2.8*0.5mm) |
| Switch Type | | C(Single-break fast-motion changeover contact ) |
| Switch Specification | Ith:5A Ui:250VAC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >1,000,000 times |
| Electrical Life | >200,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | 3-5N |
| Operating Stroke | About 3.1 mm |
| Protection Degree | IP67,IK09 |
| Material | Contact | Sliver Alloy |
| Button | Stainless Steel |
| Case | Stainless Steel | |
| Base | PC |
| RoHS | Can be made to order |
Packaging Details:
We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
Company Information
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
FAQ
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
Within 15 days

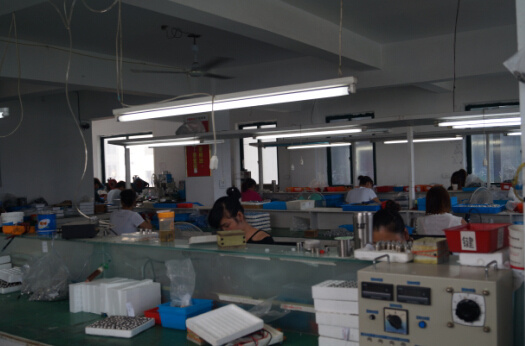

Company information

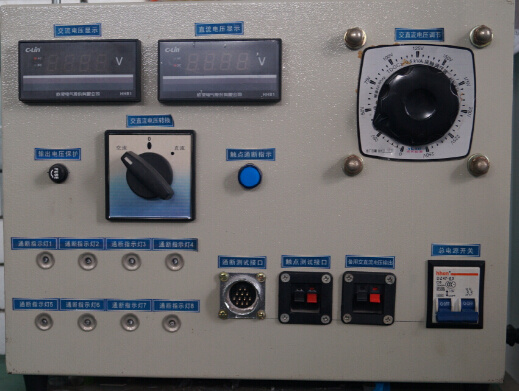

Testing product
