| Prod Model: |
HBS1GQ-11/22 |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
19mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP65, Ik09 |
| Crust Material: |
Stainless Steel |
| Switch Rating: |
5A/250V AC |
| The Front Shape: |
Flat Round |
| Operation Pressure: |
4n |
| Operation Stroke: |
About 2.5 mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Contact Type: |
Za |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description
Premeters:HBS1GQ-11/22 19mm Metal push buttron switch
Item NO.: HBS1GQ-11/22
Mounting Hole Size:dia.19mm
Lamp Type:LED
Protection Degree:IP65,IK09
Lamp Color:Red / Green / Yellow / Orange / Blue / White
The Crust Material:Stainless Steel/nickel-plated brass
CE ROHS CERTIFICATE
PUSH BUTTON SWITCH

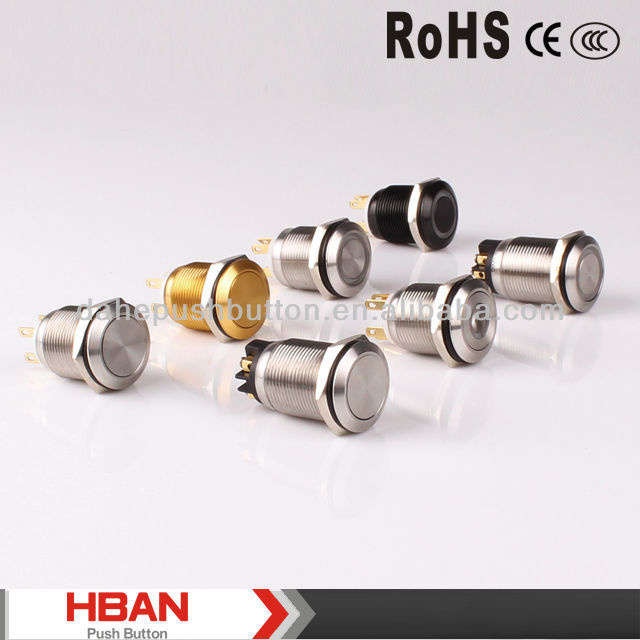

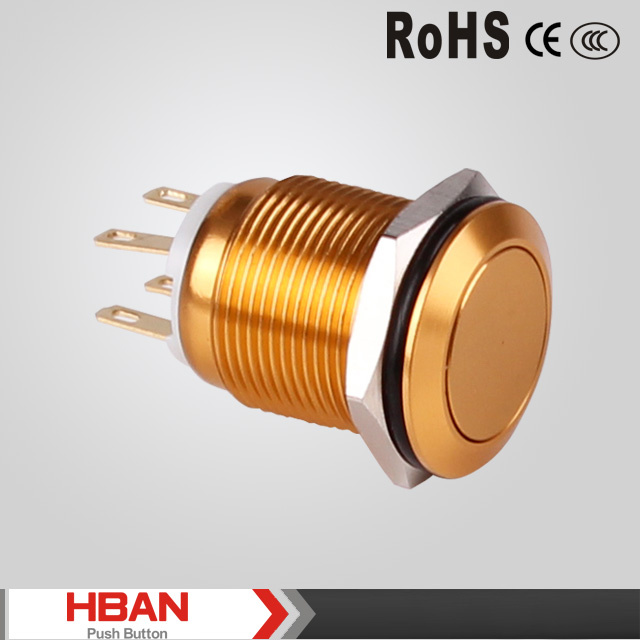

Product pictures:
Packing Details:
We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,aluminum ,plastic
Company Information
We, HBAN, are committed to researching and studying the latest technologies and highest quality Metal and Plastic push buttonswitch, Piezo Switch,Micro Switch and signal light,led indicator,buzzers.
From around the world to enable our customers to get the best products available in the market.Such as Medical, Salon, Industrial,housing,architecture... For this purpose we have at hand a team of highly skilled technical staff, our greatest asset being our vast experience. Now our items passed CE ROHS UL and CCC certificate. Sincerely hope to do business with you.
FAQ
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
Within 15 days

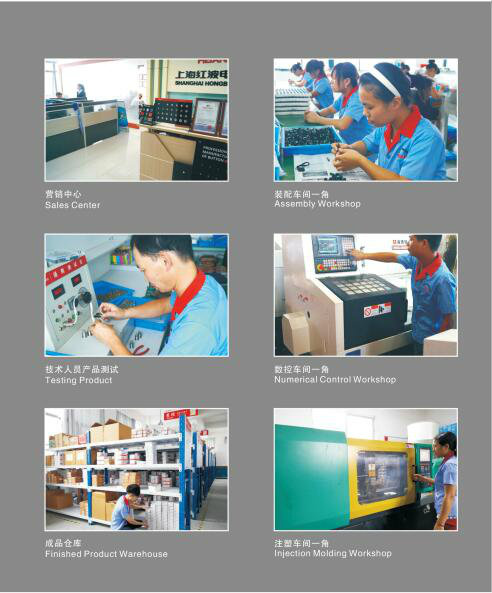

Company information

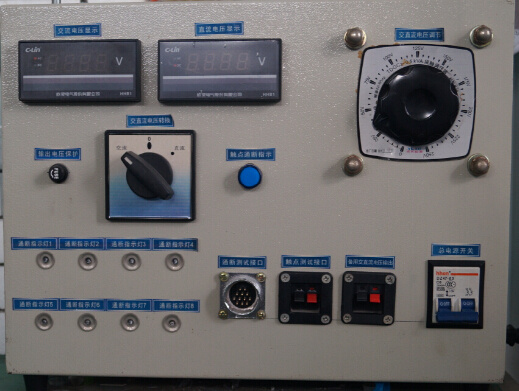

Testing product
packing information
Product application
Tel : 0086-577-62708000 Fax : 0086-577-62708007
| Specifications | HBS1GQ-11/S | HBS1GQ-11Z/S |
| The Front Shape | Flate Round | Flat Round |
| Switch Configuration | 1NO1NC |
| Switch Rating | 5A/250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100 MΩ |
| Contact between lamp bead terminal | 1500V AC |
| Between same calss terminals | 1000V AC |
| Between different electrode terminal | 2000V AC |
| Operating Temperature | -25°C ~ +55°C |
| Mechanical Life | 200,000 times |
| Electrical Life | >30,000 times |
| Protection Degree | IP40 |
| Lamp Type | AC LED Lamp (Standard) |
| LED Rated Voltage | AC/DC 6V,AC/DC12V,AC/DC/24V,AC/DC110V,AC/DC220V |
| LED Color | Red,Green,Yellow,Orange,Blue,Whie,Black,Hyaline |
| LED Lifetime | About 40,000 hours |
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
