TUV UL RoHS Hban (LA-S1GQ) 19mm DOT-Illuminated LED Light Switch

Name: TUV UL RoHS Hban (LA-S1GQ) 19mm DOT-Illuminated LED Light Switch
Brand: all-electronics-online.com
SKU: 793866945
Availability: InStock
Rating: 4.5 (102 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBS1GQ-11D, 11DZ
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	19mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V
Termianl:	Pin Terminal
IP:	IP65, Ik09
Crust Material:	Stainless Steel
Switch Rating:	5A/250V AC
The Front Shape:	Flat Round
Operation Pressure:	4n
Operation Stroke:	About 2.5 mm
Type:	Composite
Usage:	Reset Button
Kind:	Double-pole on-off Switch
Contact Type:	Za
Brand:	Hban
Certification:	TUV RoHS

Product Description

TUV UL ROHS HBAN (LA-S1GQ) 19MM dOT-Illuminated LED light switch
Premeters:

Specifications	HBS1GQ-11/J/S(pin terminal lno 1nc switch) HBS1GQ-11/L/S(screw terminal 1no1nc switch) HBS1GQ-E/S(Signal light) HBS1GQ-11E/S (Mometary,1NO1NC) HBS1GQ-11EZ/S (Latching,1NO1NC) HBS1GQ-11D/J/S (dot_illuminated !no!nc switch) HBS1-11ET/J/S (Power symbol illuminated switch momentary)
The front shape	Flat
Terminal Type	Pin terminal(2.8*0.5mm)
Switch Type	C Single breakpoint snap-action changeover contacts
Switch Specifications	Ith:5A Ui:250V AC
Contact Resistance	≤ 50m Ω
Insulation Resistance	≥1000 m Ω
Dielectric Strength	2000V AC
Operating Temperature	-20 ºC~+55 ºC
Mechanical Life	>1,000,000times
Electric Life	>50,000times
Panel Thickness	1-10mm
Torque	5-14Nm
Operating Pressure	3~5N
Operating Stroke	about 3.1mm
Protection Degree	IP40/IP67,IK09
Contact Material	Silver alloy
Button Material	Stainless Steel ,Nickel-plated brass
Case Material	Stainless Steel,Nickel-plated brass
Base Material	PBT
RoHS	Can be made to order
Lamp Type	Ring-illumination (LED)
Rated Voltage	6V/12V/24V/110V/220V
Lamp Led	R G Y O B W
Lamp lifetime	50,000 hours

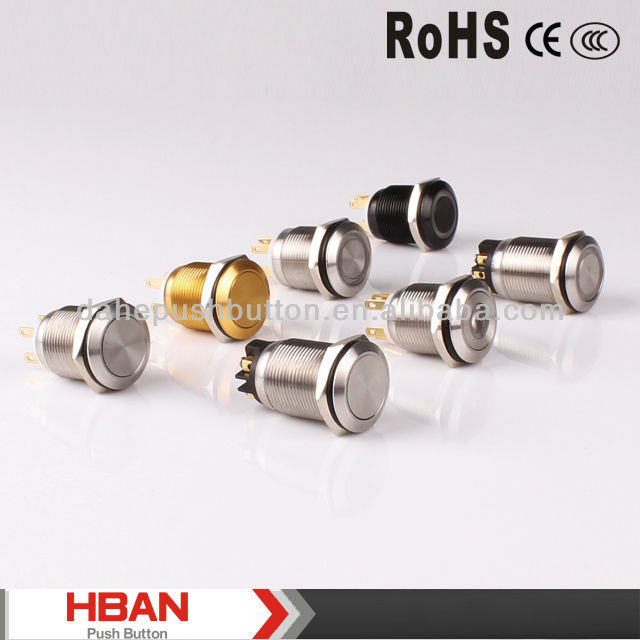

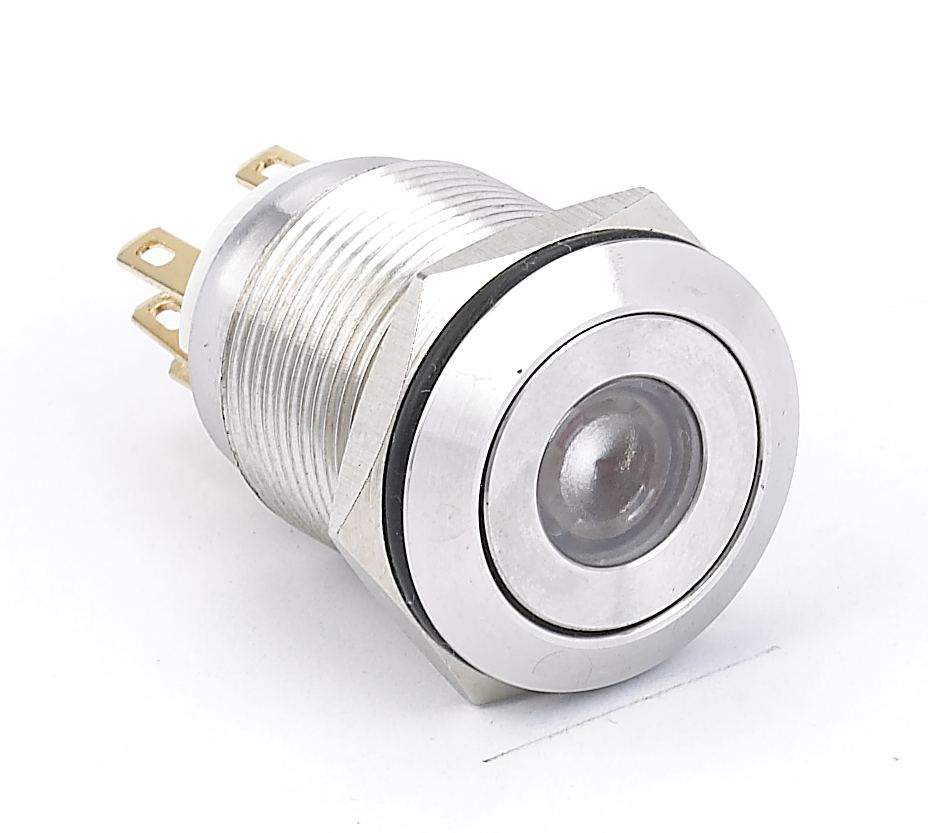

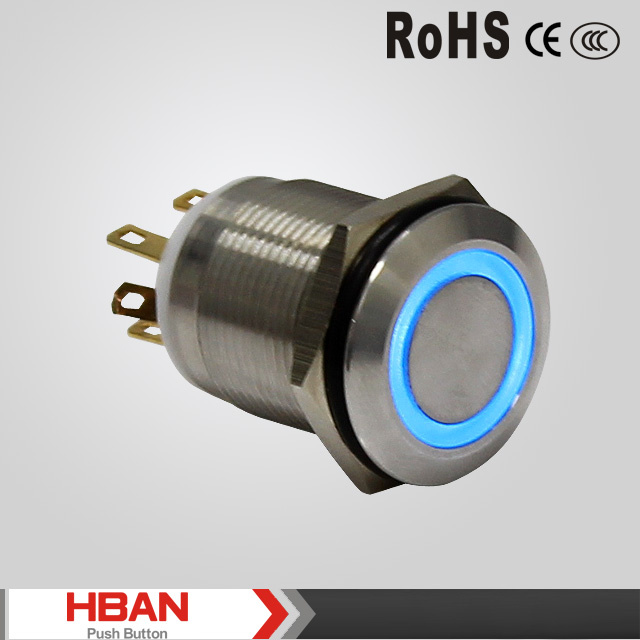

Product pictures

Packing Details:

We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

If you do not know which you need, please reply the following question, we can recommend of you.

1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM

2.Operation type: Momentary or Latching

5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle

6.The crust material: plastic, nickel-plated Brass, stainless steel or others

7.Pretection DegreeIP40 IP65 IP67

Would you need LED lamp and push button switches? If yes, please reply the following question.

1.LED type: Ring or Dot

2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v

3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White

4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed

5.Switch size: 10,12,16,19,22,25,28,30mm.

6.Switch operation type: momentary or latching

7.switch material,zn-al alloy,nickel-plated,alluminum,plastic

Company Information

We, HBAN, are committed to researching and studying the latest technologies and highest quality Metal and Plastic push buttonswitch, Piezo Switch,Micro Switch and signal light,led indicator,buzzers.

From around the world to enable our customers to get the best products available in the market.Such as Medical, Salon, Industrial,housing,architecture... For this purpose we have at hand a team of highly skilled technical staff, our greatest asset being our vast experience. Now our items passed CE ROHS UL and CCC certificate. Sincerely hope to do business with you.

FAQ

1.Are you maufactuer?

Yes, we are manufactuer

2.What's the difference between SHANGHAI HONGBO AND DAHE company?

We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou

3.How about the payment?

West Union, Paypal, Bank,T/T

4.Dlivery time

Within 15 days

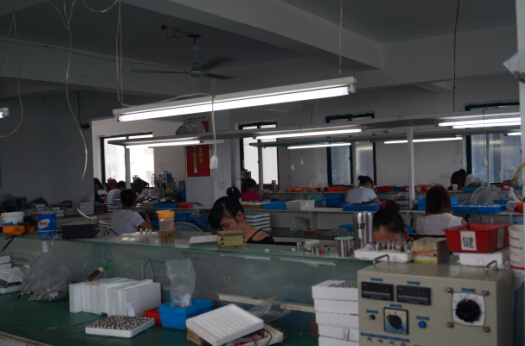

Assembly line

Production application

Tel : 0086-577-62708000 Fax : 0086-577-62708007

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
