Tvs Diode Array Dalc208sc6 Diode of Electronic Component

Name: Tvs Diode Array Dalc208sc6 Diode of Electronic Component
Brand: all-electronics-online.com
SKU: 796877265
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	US $ 0.34/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DALC208SC6

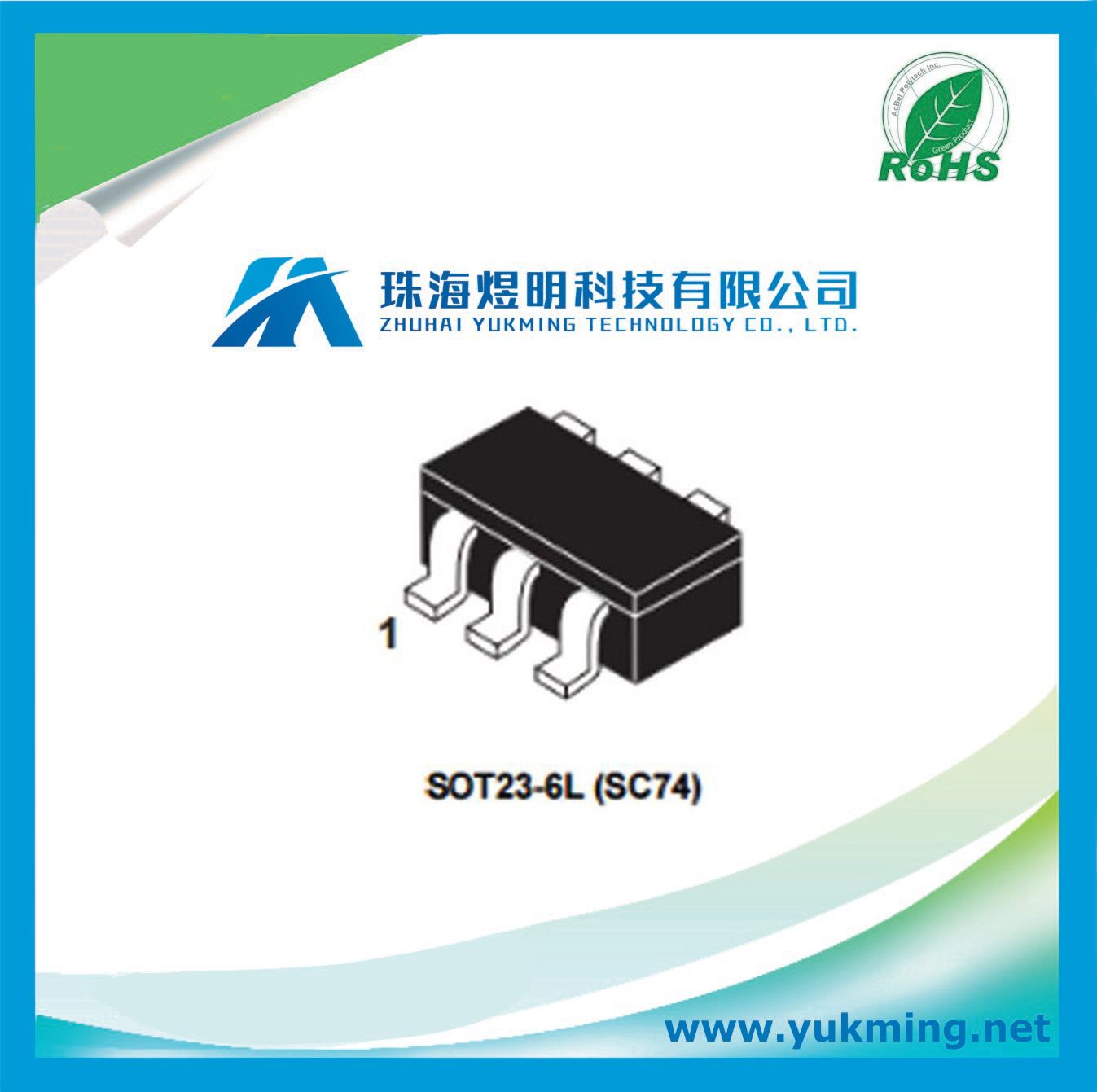

Shape:	Sot-23

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
ESD Suppressors

DESCRIPTION
ESD Suppressor Diode Arrays 9V Automotive 6-Pin SOT-23 T/R

Protect your investments from electrostatic discharge by implementing this diode array DALC208SC6 ESD protection device from STMicroelectronics. This ESD diode has a maximum ESD protection device voltage of ±15@Air Gap/±8@Contact Disc kV. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a octal configuration. Its capacitance value is 10 pF.

SECIFICATIONS
EU RoHS Compliant
Configuration Octal
Type Diode Arrays
Direction Type Uni-Directional
Maximum Working Voltage (V) 9
Maximum ESD Protection Voltage (kV) ±15@Air Gap/±8@Contact Disc
Capacitance Value (pF) 10
Number of Elements per Chip 8
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Mounting Surface Mount
Package Height (mm) 1.3(Max)
Package Length (mm) 3.05(Max)
Package Width (mm) 1.75(Max)
PCB changed 6
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 6
Lead Shape Gull-wing

MAIN APPLICATIONS
Where ESD and/or over and undershoot protection
for datalines is required :
Sensitive logic input protection
Microprocessor based equipment
Audio / Video inputs
Portable electronics
Networks
ISDN equipment
USB interface

FEATURES
PROTECTION OF 4 LINES
PEAK REVERSE VOLTAGE:
V_RRM = 9 V per diode
VERY LOW CAPACITANCE PER DIODE:
C < 5 pF
VERY LOW LEAKAGE CURRENT: IR < 1 µA
