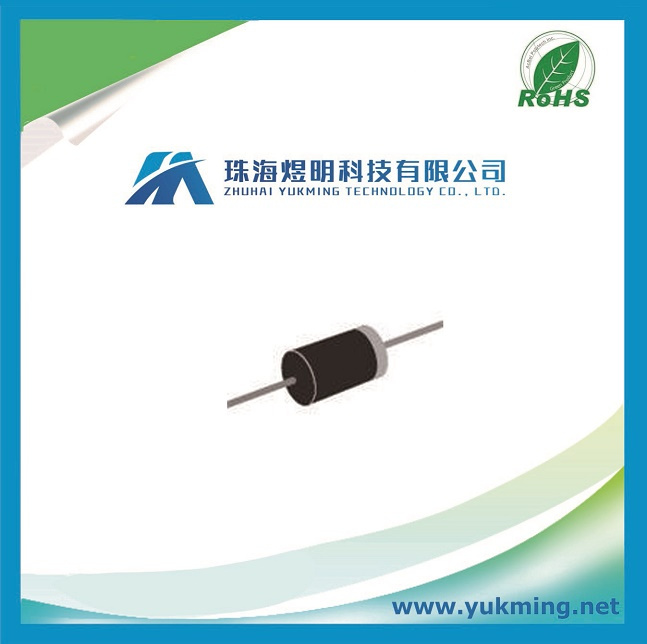

Tvs Diode P6ke200A-E3/54 Voltage Suppressors of Electronic Components

Name: Tvs Diode P6ke200A-E3/54 Voltage Suppressors of Electronic Components
Brand: all-electronics-online.com
SKU: 800662985
Availability: InStock
Rating: 4.7 (33 reviews)

Price:	US $ 0.0167/Piece
Min Order:	6000/Piece
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	P6KE200A-E3/54
Family:	Tvs Diode
Operation Voltage:	171 V
Series:	P6ke
Operation Temperature Range:	-65 to 185
Shape:	Do-204AC

Product Description

PRODUCT CATEGORY
TVS

DESCRIPTION
Diode TVS Single Uni-Dir 171V 600W 2-Pin DO-15 T/R

This P6KE200A-E3/54 TVS diode from Vishay is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its test current is 1 mA. Its peak pulse power dissipation is 600 W. This device's maximum clamping voltage is 274 V and minimum breakdown voltage is 190 V. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

Specifications
EU RoHS Compliant
Direction Type Uni-Directional
Maximum Reverse Stand-Off Voltage (V) 171
Maximum Reverse Leakage Current (uA) 1
Maximum Clamping Voltage (V) 274
Maximum Peak Pulse Current (A) 2.2
Minimum Breakdown Voltage (V) 190
Test Current (mA) 1
Peak Pulse Power Dissipation (W) 600
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175
Operating Junction Temperature (°C) -55 to 175
Number of Elements per Chip 1
Packaging Tape and Reel
ESD Protection Unknown
Package Diameter (mm) 3.6(Max)
Mounting Through Hole
Package Length (mm) 7.6(Max)
PCB changed 2
Standard Package Name DO-204-AC
Supplier Package DO-15
Pin Count 2
Lead Shape Through Hole
