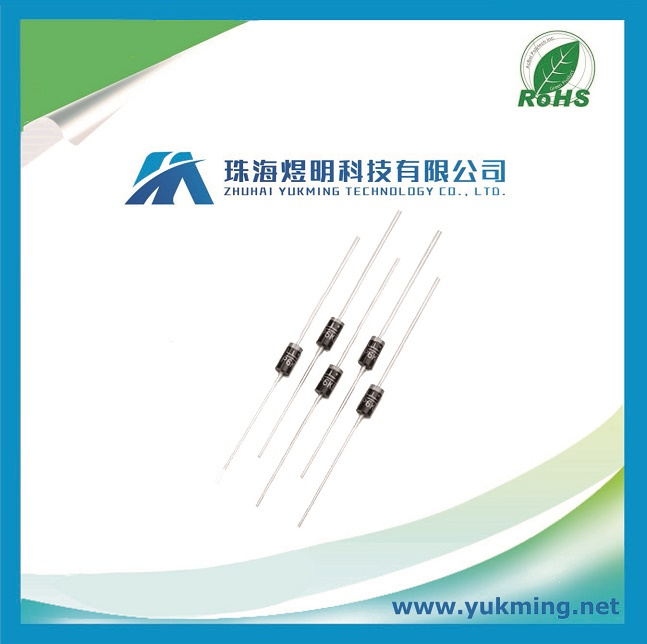

Tvs Diode P6ke6.8A Transient Voltage Suppressor of Electronic Components

Name: Tvs Diode P6ke6.8A Transient Voltage Suppressor of Electronic Components
Brand: all-electronics-online.com
SKU: 800652435
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 0.0167/Piece
Min Order:	6000/Piece
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	P6KE6.8A
Family:	Tvs Diode
Operation Voltage:	5.8 V
Series:	P6ke
Operation Temperature Range:	-55 to 175
Shape:	Do-204AC

Product Description

Features
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Glass passivated junction
• 600W peak pulse power capability with a 10/1000µs
waveform, repetition rate (duty cycle): 0.01%
• Excellent clamping
capability
• Low incremental surge resistance
• Fast response time: typically less
than 1.0ps from 0 Volts to V(BR) for
uni-directional and 5.0ns for bi-directional types
• Typical ID less than 1µA above 10V
• High temperature soldering guaranteed:
265°C/10 seconds, 0.375" (9.5mm) lead length,
5lbs. (2.3 kg) tension

MECHANICAL DATA

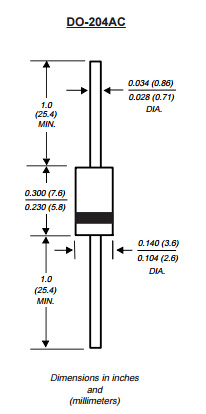

Case: JEDEC DO-204AC molded plastic body over
passivated junction
Terminals: Solder plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: For uni-directional types the color band denotes
the cathode, which is postitive with respect to the anode
under normal TVS operation
Mounting Position: Any
Weight: 0.015 ounce, 0.4 gram
