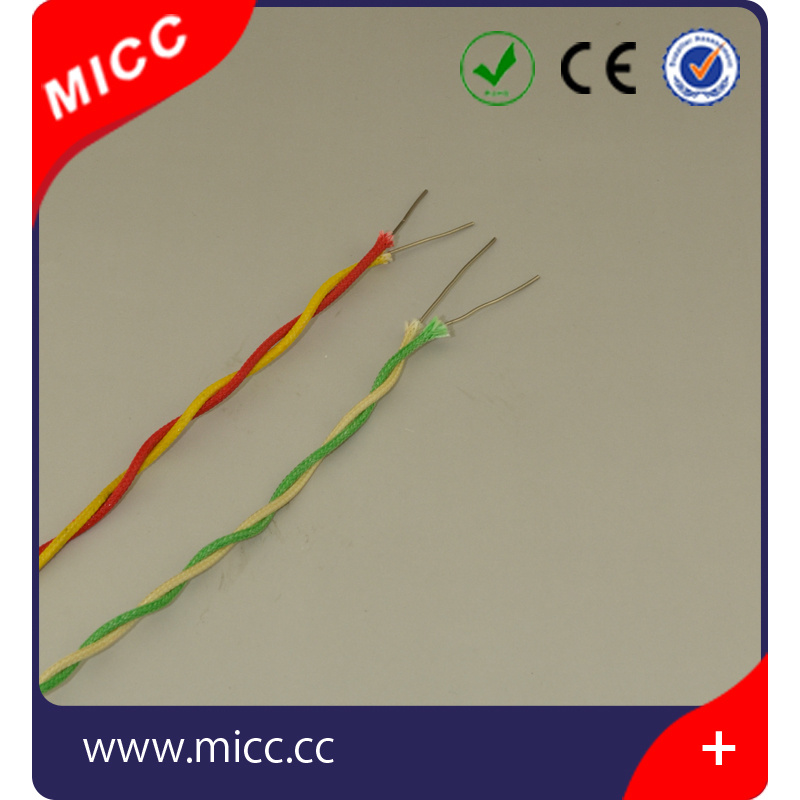

Twisted Type K Fiberglass Insulation Thermocouple Extension Wire

Twisted Type K Fiberglass Insulation Thermocouple Extension Wire
Price: US $ 0.7/Meter
Trade Terms: FOB,CIF,EXW
Min Order: 100/Meter
Pay Type: T/T
Prod Model: k fiberglass thermocouple extension wire
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: ANSI,IEC,DIN
Max Temperature: 400c
Size: 14-32AWG
MOQ: 100m
Sample: Available
Package: Roll or Spool
Type: Insulated
Certification: ISO9001
Conductor Type: Solid
Insulation Material: Fiberglass
Application: Temperature Sensor
Range Of Application: Thermocouple
Brand: Type K Fiberglass Insulation Thermocouple Extensi
Sheath Material: Glass Fiber
Conductor Material: Positive: Chromel, Negative: Alumel

Product Description

 twisted type k fiberglass insulation thermocouple extension wire

1, SUBJECT
Twisted Fiberglass braided insulated thermocouple wire, type K, solid wire
2x20 AWG, standard tolerances and color coding according to ANSI/ASTM E230.
TECHNICAL  FEATUREScolor
ConductorsSolid  thermocouple  grade  wireConductor  Size  (AWG)20
No.   of  Strands  &   Gauge1/20  AWG  (Ø 0, 81mm)
InsulationBraided  Twisted  Fiberglass  (400º C)
Nominal  Insulation  Thickness:   0.25mm





PositiveChromel


Yellow
NegativeAlumel


Red
AssemblyTwo  conductors  (positive  and  negative)  twisted  construction.
Dimensions  /  tolerances  (mm)


  2, 5  ± 0.25  × 3.5  ± 0.25
CALIBRATION  TOLERANCETemperature  range    0  to  400º C

Standard  tolerance    ± 2, 2º C  or  0.75%

Special  tolerance  ± 1, 1º C  or  0, 4%
