Two Bolts Ttd Series Insulation Piercing Cable Terminal Connector

Name: Two Bolts Ttd Series Insulation Piercing Cable Terminal Connector
Brand: all-electronics-online.com
SKU: 715860642
Availability: InStock
Rating: 4.7 (25 reviews)

Price:	US $ 0.5-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TTD
Rated Voltage:	20kv,10kv,1kv or Below
Bolt:	H.D.G Steel
Waterproof Sealing:	Rubber
Type:	Electric Tap Connectors, Piercing Connector
Application:	Wire Connector
Gender:	Electric Tap Connectors

Product Description

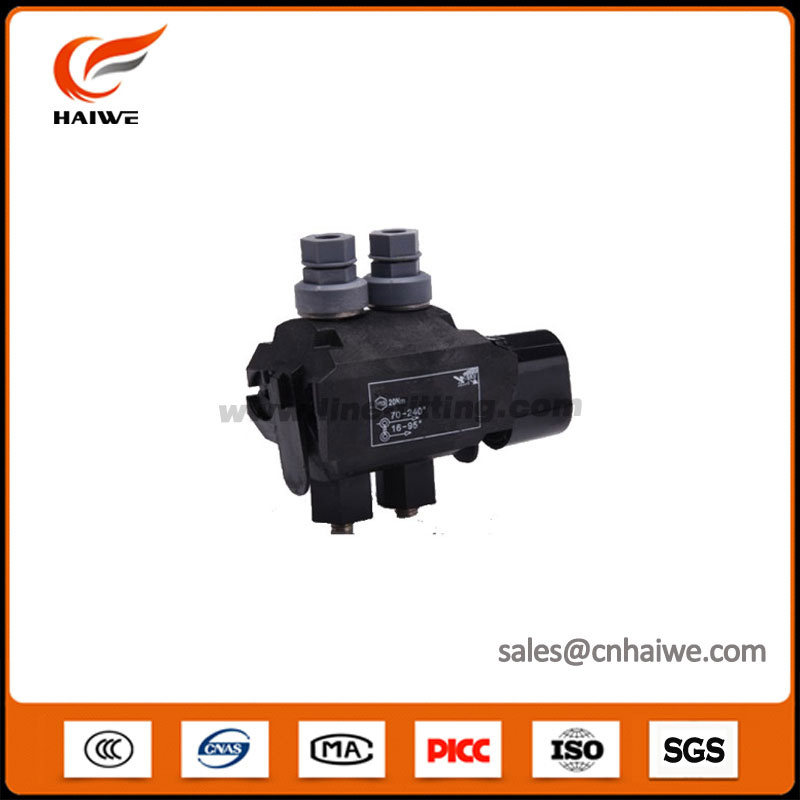

Two bolts TTD series insulation piercing cable terminal connector

Application:
The insulation piercing connector is suitable for contact live or dead line work, and the main & tap line
was all for insulated Aluminum or Copper conductor.

Features:
(1)Withstanding flashover under the water :6kV.
(2)Easy to install and safe to use.
(3)The branch can be on the left or on the right.
(4)with high tightening torque.
(5)Its insulating body is highly climatic and mechanically resistant.

Material:
(1)Weather resistant glass fiber reinforced polymer.
(2)Contact teeth: tinned brass or copper or aluminum.
(3)Bolt :dacromet steel.

Type	Equivalent Type	Main line mm²	Branch line mm²	Max current (A)	Bolt		Torque nut
					Number	H(mm)
					Number	H(mm)
HW041FJ	TTD041FJ	6~35	1.5~10	86	1×M8	13	F1309
HW051FJ	TTD051FJ	16~95	1.5~10	86	1×M8	13	F1309
HW101FJ	TTG101FJ	6~50	2.5(6)~35	200	1×M8	13	F1309
HW151FJ	TTD151FJ	25~95	2.5(6)~35	200	1×M8	13	F1314
HW201FJ	TTD201FJ	35~95	25~95	377	1×M8	13	F1318
HW241FJ	TTD41FJ	50~150	2.5(6)~35	200	1×M8	13	F1314
HW251FJ	TTD251FJ	50~150	25~95	377	1×M8	13	F1314
HW281FJ	TTD281FJ	05~185	2.5(6)~35	200	1×M8	13	F1314
HW401FJ	TTD401FJ	50~185	50~150	504	2×M10	13	F1318
HW431FJ	TTD431FJ	70~240	16~95	377	2×M10	17	F1720
HW441FJ	TTD441FJ	95~240	50~150	504	2×M10	17	F1725
HW451FJ	TTD451FJ	95~240	95~240	530	2×M10	17	F1725
HW551FJ	TTD551FJ	120~400	95~240	679	2×M10	17	F1737

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet

5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free

6.How to contact us?
A:Send your inquiry details in the below,Click "send" now!
