| Prod Model: |
CDR700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
AC/DC |
| Item: |
CDR700 |
| Mode: |
Switching Power Supply |
| Color: |
Black |
| Size: |
214*290*297 |
| Scope: |
Motorola Gm338 Radio |
| Weight: |
6kg |
| Application: |
Two Way Radio |
| Output Type: |
Single |
| Output Power: |
101 - 200W |
| Input Voltage: |
220V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Samyang |
Product Description
Why choose us?
1.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
2. Over 21 years electroplating rectifier telecommunication power supply manufacture in China.
3. We are one of the limited liability company in our city.
4. We have 17 patents.

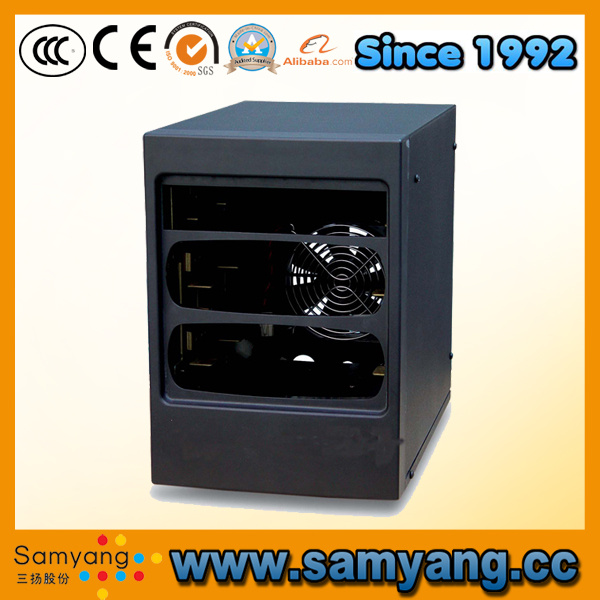

Two way radio power supply for Motorola CDR700 repeater
Indicated parameters:
1) Input voltage: AC 187V - 242V /110VAC
2) Output voltage: DC 13.8V
3) Output current: 15A
4) Ripple: ≤ 10mV (P-P)
5) Charge current: 1A
6) Output over current, over voltage protection
7) Automatically change to the battery supply if AC power is lose
8) Can install two GM338 radios
9)Dimension: : 290× 214× 297(L× W× H)
Summary
CDR700 DC regulated power supply is special for telecom station. It has the characteristics of high precision output, multifunctional protection, compact and firm construction radio station, it is especially fit for the use at public security, water conservancy, transportation Department, and all the industrial mineral enterprises.
Front panel instructions( re. To attached drawing )
1, Front panel 2, Place for mounting radios 3, Back panel
4, Fan 5, Earth 6, Antenna port
7, Antenna port 8, AC 9, AC cable
FOUR, Notices:
1. The AC input earthplating must connect to the real protective grounding line, not connect to neutral line or far grounding line in order to improve the thunder proof and anti-jamming function.
2. Make sure the right polarity when connect the battery.
3. There must allow over 100mm space in front of the power and home front of
The power when installation in order to make sure it vents well.
4. The operating environment must pay attention to dustproof, dampproof, far form heat source and electromagnetism interference, no causticity gas and metal dust. If can not confirm the good environment, you must clear the dust, sundries in certain time in order to assure it is vents well and the reliability.
|
Ambient Temperature |
-10°C---50°C |
|
Input Voltage |
AC220V or AC110V |
|
Output Voltage |
13.8V±0.2V |
|
Output Current |
15A |
|
Working |
intermission: <15A, continuum: <5A |
|
Output voltage stability |
≤1% |
|
Max current |
16A_17A |
|
Output over voltage protection |
16.5V±1.5V |
|
Reflex current |
2A_3A |
|
Source effect |
≤5×10-4 |
|
Load effect |
≤5×10-4 |
|
cycle and random excursion |
≤15mVP-P |
|
Charging battery voltage |
12V |
|
Charging current |
1A±0.2A |
|
Size |
214 * 290 * 297 mm |
|
Feature |
Install two GM338 radios |
