| Prod Model: |
PS110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
PS110 |
| Color: |
Blue |
| Output Voltage: |
13.8V |
| Output Current: |
25A |
| Over Current Protection: |
16.5V |
| Charging Current: |
1A |
| Cooling Mode: |
Air Cooling |
| Size: |
19 Inch 3u Rack |
| Output Type: |
Single |
| Output Power: |
201 - 300W |
| Input Voltage: |
220V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
1 Year |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Samyang |
Product Description
Why choose us?
1.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
2. Over 21 years electroplating rectifier telecommunication power supply manufacture in China.
3. We are one of the limited liability company in our city.
4. We have 17 patents.

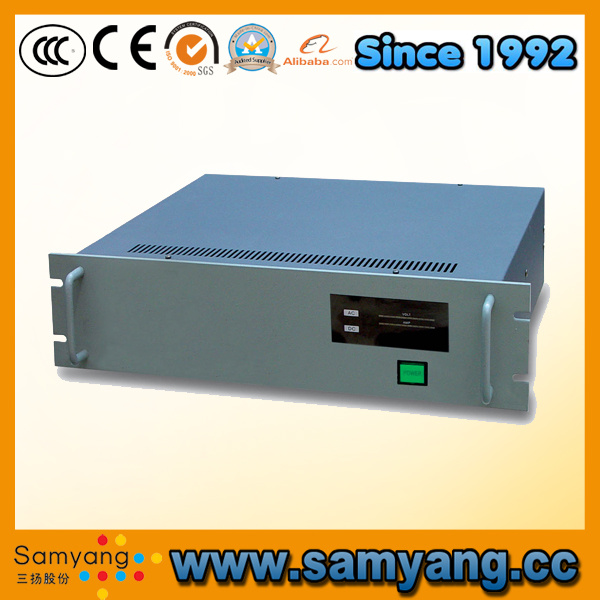

Repeater Housing Power Supply for KG110 radio AC DC
ONE, INSTRUCTIONS:
AC indicator light: Orange light on, when 220VAC power gets through, the orange light is on...(This light will be on when put on the plug, has no relation with the switch)
DC indicator light: Green light on, When there is 13.8VDC output, the light is on.
POWER light: Green light on, when green light of the switch is on, means the power is on.
VOLT light: Indicate the output voltage
AMP light: Indicate the output current
The three pins socket at the back of the machine is the output socket, connects to KG110 station.
The two pins socket at the back of the machine is the charging output, connects to 12VDC accumulator.
TWO, SPECIFICATION:
1. Operating voltage: 198VAC~242VAC
2. Output voltage: 13.8VDC± 0.2V
3. Output current: 20A (rated), 25A(Max)
4...Output ripple: ≤ 100 mVP--P
5. Source effect: ≤ 5× 10-4
6. Load effect: ≤ 1× 10-3
7. Temperature coefficient: 1× 10-3 +1mV/ oC
8. Operating circumstance temperature: -20 oC~+55 oC
9. Over voltage protection voltage: 16.5VDC± 1.5V
10. Charge current: 1A
11. Radiator: Air cooling
12. Working mode:
A, All day long working under rated load. There is a back-up
Battery connects to the battery, it will switch to the back-up
Battery automatically where there is no power.
B, After power off, connects the battery to the battery port, there is no automatic switch. Let the anode of the battery and the anode of 13.8V output have a short circuit, and it can achieve switchover.
|
Operating voltage |
198VAC~242VAC |
|
Output voltage |
13.8VDC± 0.2V |
|
Output Current |
20A (rated),25A(Max) |
|
Working |
intermission: <15A, continuum: <5A |
|
Output ripple |
≤100 mVP--P |
|
Source effect |
≤5×10-4 |
|
Load effect |
≤1×10-3 |
|
Temperature coefficient |
1×10-3 +1mV/ oC |
|
Operating circumstance temperature |
-20 oC ~+55 oC |
|
Charging current |
1A |
|
Over voltage protection voltage |
16.5VDC±1.5V |
|
Radiator |
air cooling |
|
Working mode |
A, All day long working under rated load. There is a back-up
battery connects to the battery , it will switch to the back-up
battery automatically where there is no power . |
|
B,After power off, connects the battery to the battery port, there is no automatic switch. Let the anode of the battery and the anode of 13.8V output have a short circuit, and it can achieve switchover. |
