| Prod Model: |
STP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Items: |
STP |
| Output Voltage: |
6V/12V/15V/24V |
| Output Current: |
300A/500A/750A/1000A |
| Color: |
Blue and Gray |
| Cooling Mode: |
Air Cooling |
| Feature: |
High Efficiency Low Ripple |
| Power Mode: |
Switching Mode |
| Module: |
IGBT Module |
| Waveform: |
Smooth Waveform |
| Type: |
AC DC Rectifier |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
>500W |
| Input Voltage: |
380V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Samyang |
Product Description
Why choose us ?
1.Over 23 years electroplating rectifier and telecommunication power supply manufacture in China.
2.5 plating rectifier sole agents in United Kingdom,Poland,South Africa,Thailand,Colombia promised recommend.
3.2008 Olympic Games and 2010 Asia Games appointed power supply supplier.
4.50 peoples development team and strong R&D department.
5.Top 10 plating enterprise in China.
6.ISO9001,SGS,CE certification.
7.Direct factory price.
8.Technology support
9.Strict QC control system.
10.Lowest material cost.

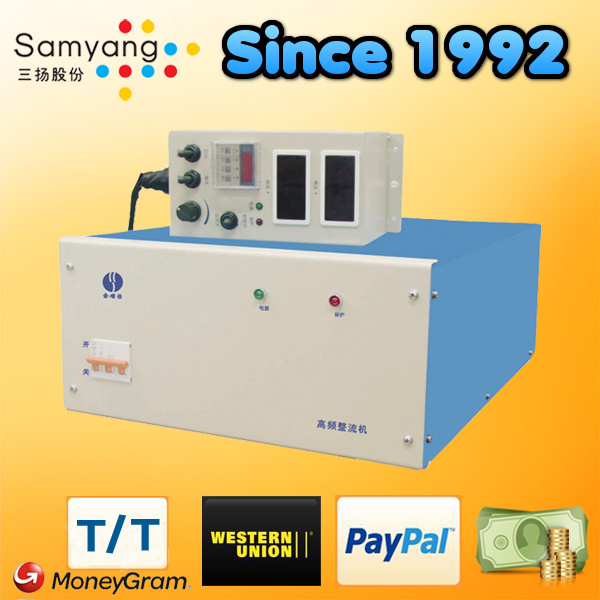

Switching mode AC to DC power supply rectifier for electroplating with IGBT
Specification:
Input voltage | 380VAC 350VAC-450VAC (three phase) 50Hz
|
| Output Voltage | 0- 6V,12V,15V,24V continuously adjustable |
| Output Current | 0- 300A,500A,750A,1000A continuously adjustable |
| Output current stability | ≤2% |
| Output voltage stability | ≤1% |
| Efficiency | ≥85% |
| Power factor | ≥0.9 |
| Start-up postponing time | ≤10s |
| Inverting frequency | 18kHz ± 2kHz |
| 8kHz ± 2kHz |
| Cooling mode | air cooling |
| Remote control | Voltage and current display, start/stop,indicator light of protect and
power , adjustment of output value, CC/CV,timer. |
| Display | Digital meters or touch screen , Ampere hour meter ,timer alarm ,etc |
| Signal interface | PLC 0~10V , RS485 |
| Modulation mode | PWM control |
| Complete protection functions | over current,over voltage,over heat ,short circuit,phase lack ,
input undercurrent protection,over temperature,diode defect. |
Product features: | 1. Small size, light weight, high efficiency, high control precision. |
2. High -frequency pulse current output, Suitable for plating small
sized no-ferrous metal and alloy work pieces, it has high enetration ability,
strong adhesive force, and can effectively enhance the brightness
of the plated surface. |
3. Output voltage and current can be adjusted, limiting voltage and
current can be adjusted,greatly enhance application flexibility of the
product for users. |
4. With complete protection functions, over current, over heat Protection functions.
High power factor, less pollution to the electric network, no interference. |
| Scope of application | It is suitable for acidic copper, alkaline copper, multi-layer
nickel, Chrome ,zinc , gold ,silver , indium,rhodium, anodizing,
electrolysis degreasing ,and single or double-clad plated printing process. |
Power supply rectifier Product details:
Power supply rectifier Six advantages:
Scope of application:
1.Plating: gold,silver,chrome,nickel,zinc,copper,indium,rhodium,acidic copper, alkaline copper
2.Electrolysis: copper, zinc, tin, lead aluminum foil, copper foil production
3.Electrochemical machining
4.Anodizing: anodizing, hard anodizing
5.Electrophoresis
Function and lowest material cost:
Every plating rectifier can add the functions : (timer is our general function so that is for free)
1.PLC (0-10V)
2.RS485
3.Ramp time
4.Adjustable potentiometer
5.Timer
6.Ampere hour meter
Lowest material cost
All the PCB(main control board, driver card,etc),Transformer, inductor ,radiator are manufactruing by our factory, so we can confirm the lowest material cost and give customer the highest quality and reasonable price.
| Compare with Italy and Taiwan brand: |
| Italy and Taiwan brand | Their plating rectifier is good quality,but their price and spare parts are very very high. |
| Our Samyang brand | Our plating rectifier is high quality,customers can purchase many spare parts from us with
much lower price,that many spare parts are making by ourself and we only sell you a material cost,
so as to support your repair work strongly. |
After sale service
1.Your inquiry related to our products or prices will be replied in 24hours.
2.1 years warranty,by replace/repair/free spare parts for bulk order.
Within the first year, if you need any spare parts for replacement, we can provide to you without paid. And we will offer lifelong technical support and service.
3. Considering the expensive shipping cost for you,broken rectifier is no need to send back to China, just let us know the problem through a video or a picture, then,we will send the replacement to you immediately.
4.Any questions or confustion, please feel free to let us know.
About Payment
Payment by TT/,Paypal, Western Union,Money Gram will be acceptable.
Please note: Our trade term is EXW,so the price is not includeing the shipping cost).
About shipping
1. Shipping way: Fedex,UPS,DHL, EMS, TNT, China POST, customer can choose the shipping way by themselves.
2. Before shipping we will pack the goods well in case for damage and for the shipping time depends on which shipping way you choose and the courier company and local customs, duties, thank you for your understanding in advance.
About MOQ
MOQ about the electroplating rectifier is 1 pcs .
SHUNDE SAMYANG Co., Ltd., original called Guangdong Kingsunny Technology Co., Ltd. is a subordinate enterprise of Shunde Communication Equipment Co., Ltd., which was established in 1992 and has manufactured power supplies over 20 years.
On the base of communication switching power supplies, our company successfully developed electroplating switching power supplies. We succeed to the persistent tenet of "Shunde power supply" and "Being determined and dauntless in innovation and striving for improvement ". Under the arrangement of leaders, our company introduced an advanced human resource administrating mode from abroad and improved our personnel system. In this way, our company has recruited a large number of highly qualified professionals and forms an effective operating system. Soft switching - an advanced technology of switching power supply in the 90s of the 20th century are used as the main circuit when developing high-frequency switching power supplies for galvanization.
Furthermore, microcomputer technology is applied to products to achieve remote supervision and to assist the electroplating industry in automated production management. In respect of marketing management, our company lays stress on establishing the sales network. Our market positioning is all electroplating factories oriented and our interest is every customer concerned. With regard to the management of logistics and production planning, our company has achieved scientific administration and we can timely deliver products to customers as scheduled by using our LAN and ERP management system.
Now our company boasts a building area of 13, 500 square meters. All production test facilities are introduced from the U. S. A and Japan and all activities concerned with product quality are carried out in controlled mode as per ISO9001 standards. Top quality, fine manufacturing techniques, perfect after-sales services, competitive price and scientific management are our guarantee for customers.
