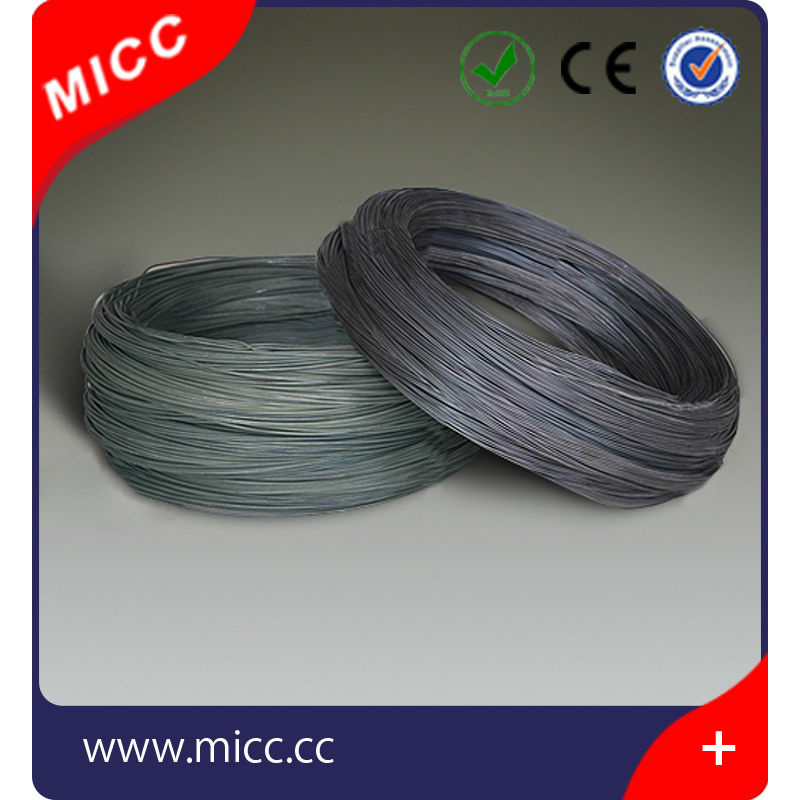

Type K Bright Thermocouple Bare Wire (K-3.2mm)

Name: Type K Bright Thermocouple Bare Wire (K-3.2mm)
Brand: all-electronics-online.com
SKU: 725910895
Availability: InStock
Rating: 4.7 (66 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	50/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	K-3.2MM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	for Thermocouple
Type:	Bare Wire
Material:	Nicr-Nisi
Operating Principle:	Bare Wire for Thermocouple
Brand:	Micc

Product Description

thermocouple bare wire
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

thermocouple bare wire

Thermocouple Variety and Index
Variety	Type	Measurement Range(°C)
NiCr-NiSi	K	-200-1300
NiCr-CuNi	E	-200-900
Fe-CuNi	J	-40-750
Cu-CuNi	T	-200-350
NiCrSi-NiSi	N	-200-1300
NiCr-AuFe0.07	NiCr-AuFe0.07	-270-0

thermocouple bare wire type and grade

Thermocouple Type	Grade	Temperature Range(°C)	Allowable Deviation
type K and type N	I	-40-1100	±1.5°C or±0.4%t
	II	-40-1300	±2.5°C or ±0.75%t
	III	-200-40	±2.5°C or ±1.5%t
type E	I	-40-1100	±1.5°C or ±0.4%t
	II	-40-1300	±2.5°C or ±0.75%t
	III	-200-40	±2.5°C or±1.5%t
type J	I	-40-750	±1.5°C or ±0.4%t
type J	II	-40-750	±2.5°C or ±0.75%t
type T	I	-40-350	±0.5°C or± 0.4%t
	II	-40-350	±1.0°C or± 0.75%t
	III	-200-40	±1.0°C or± 1.5%t
NiCr-AuFe0.07	I	-270-0	±0.5°C
NiCr-AuFe0.07	II	-270-0	±1.0°C

thermocouple bare wire of alloy wires

Anode		Cathode		Diameter(mm)	Maximum Temperature(°C)
name	code	name	code	Diameter(mm)	long-time using	short-time using
NiCr10(Chromel)	KP	NiSi3(Alumel)	KN	Φ0.3	700	800
				Φ0.5	800	900
				Φ0.8 Φ1.0	900	1000
				Φ1.2 Φ1.6	1000	1100
				Φ2.0 Φ2.5	1100	1200
NiCr14.2Si	NP	NiSi4	NN	Φ3.2	1200	1300
NiCr10(Chromel)	EP	CuNi45(Copel)	EN	Φ0.3 Φ0.5	350	450
				Φ0.8 Φ1.0 Φ1.2	450	550
				Φ1.6 Φ2.0	550	650
				Φ2.5	650	750
				Φ3.2	750	900
Fe(Iron)	JP	CuNi45(Copel)	JN	Φ0.3 Φ0.5	300	400
				Φ0.8 Φ1.0 Φ1.2	400	500
				Φ1.6 Φ2.0	500	600
				Φ2.5 Φ3.2	600	750
Cu(Copper)	TP	CuNi45(Copel)	TN	Φ0.2 Φ0.3	150	200
				Φ0.5 Φ0.8	200	250
				Φ1.0 Φ1.2	250	300
				Φ1.6 Φ2.0	300	350

MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!

According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.

We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
