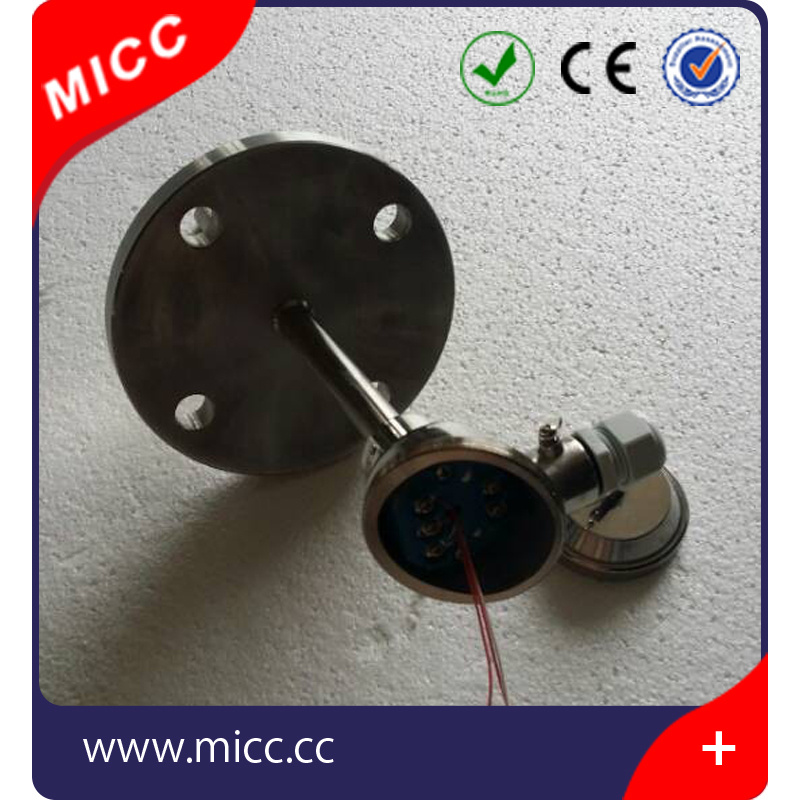

Type K Thermocouple with Flange

Name: Type K Thermocouple with Flange
Brand: all-electronics-online.com
SKU: 729480735
Availability: InStock
Rating: 5 (89 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Flange thermocouple
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Specifications

-Supply WRN-122 WRN-123, WRN2-123 fixtures thermocouple
-Thermocouple
-temperature sensor

Assurance Gas Fireplace Thermocouple

Main Thermocouples
1
Armored Thermocouple
Small diameter
Flexibility
Resistance to high pressure and vibration
Rapid thermal response
High reliability
2
Assembly Thermocouple
High temperature measuring,
Commonly used in Steel and Metallurgy industry

Technical Data for Gas Fireplace Thermocouple

Gas Fireplace Thermocouple
Category
Code
Temperature Range
Ni-Cr-Si----Ni-Si-Mg
N
-40° C to 1000° C
Ni-Cr----Ni-Si
K
-40° C to 1000° C
Ni-Cr----Cu-Ni
E
-40° C to 800° C
Fe----Cu-Ni
J
-40° C to 750° C
Cu----Cu-Ni
T
-40° C to 350° C
Pt-Rh13----Pt
R
0° C to 1000° C
Pt-Rh10----Pt
S
600° C to 1600° C
Pt-Rh30----Pt-Rh6
B
600° C to 1700° C

Main Features of Gas Fireplace Thermocouple

Gas Fireplace Thermocouple
Name
Gas Fireplace Thermocouple
Code
K E J T N R S B
Level
I grade II grade
Temperature Measurement Point
Pick shell Insulation Dew Point
Thread
1/4 5/16 M4 M6 M8 M12
Pipe Diameter
Φ 1.0 to Φ 8
Pipe Material
304 316L etc.
Lead Wire
PVC /glass fiber/teflon/silicone/SS
Max Temperature
1600° C

Gas Fireplace Thermocouple
Grounded
1 rapid response
2 no suitable in case with interference
Ungrounded
1 It responses more slowly than that of the case-connected type.
2 Long service life
3 Resistance to electric interference
Exposed
1 rapid response
2 suitable to measure the temperature of gas
3 poor mechanical strength in contact with other measuring structures
