| Prod Model: |
mining cable |
| Cross Section Of Conductor: |
1.5--500mm2 |
| Core Of Cable: |
1, 2, 3, 4, 5, 6 |
| Rated Voltage: |
600V |
| Color: |
as Your Request |
| Model Number: |
Type W G Gc |
| Insulation: |
Epr |
| Certificate: |
UL, Msha, RoHS |
| Standard: |
UL1650 |
| Conductor: |
Type Rhh or Rhw-2 |
| Sheathed: |
CPE Rubber or a Braid or Serve of Synthetic Materi |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
Rubber |
| Certification: |
Kema, TUV, Psb |
| Range Of Application: |
Mining Cable |
| Brand: |
Rneda |
| Sheath Material: |
CPE |
| Application: |
Mining Cable |
Product Description
Packaging & Delivery
Packaging Details: wooden drum, steel wooden drum for 0.6/1kV PVC Insulated Copper Tape Shield PVC Sheath Control Cable (CVVS, CCVS, CCES, TFR-CVVS, HFCCOS)
Delivery Time: within 20days when receiving your deposit
TOP TEN CABLE MANUFACTURER/EXPORTER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY
2000Volt Single and Multi conductor Type W G GC Portable Power Cable with UL and MSHA certifications
1 APPLICATIONS
Type W G GC Portable Power Cable is suitable for use in Industrial and light-to-medium mining applications, heavy-duty service and temporary as power supply cables. Motor, battery and generator leads. It is also used for mobile and portable electrical equipment.
2 SPECIFICATIONS
• UL Listed - Type W per UL 1650
• Conductors are manufactured in accordance with ASTM and B-172
• Made in accordance with ICEA S-75-381
• NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
• MSHA accepted, P-136-135, LR65300
• UL Listed as Type RHH or RHW-2
• CSA or c(UL) Certified as applicable
• RoHS Compliant
• Meets FT-5 Flame Test
3 CONSTRUCTION
Conductor: 8 AWG to 500 MCM fully annealed stranded bare copper Stranding per ASTM B 174
INSULATION: Premium grade oil resistant Ethylene Propylene (EPDM)
JACKET:Premium grade, water, sunlight, and oil resistant, flame-retardant, Chlorinated Polyethylene (CPE)
4 Features:
Excellent impact and abrasion resistance
Withstand exposure to oil, acids, alkalies, heat, moisture and most chemicals
Indent printed for easy identification
Rope lay stranding for maximum flex life
Cable core bound for superior flexibility and toughness
Resists:Heat ,Oil,Weather,Ozone,Abrasion
Temp range:-40°C to 90°C Dr
-40°C to 75°C Wet

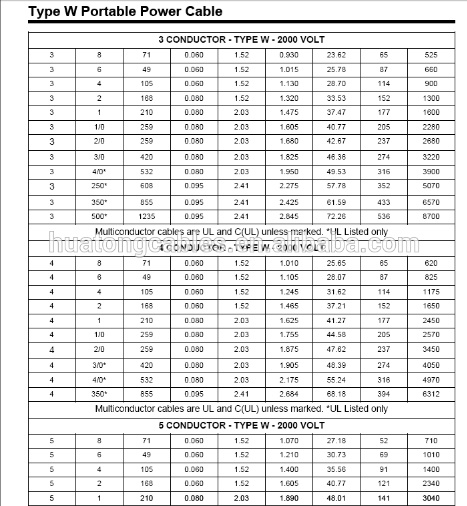

5 Data sheet of Type W cable:

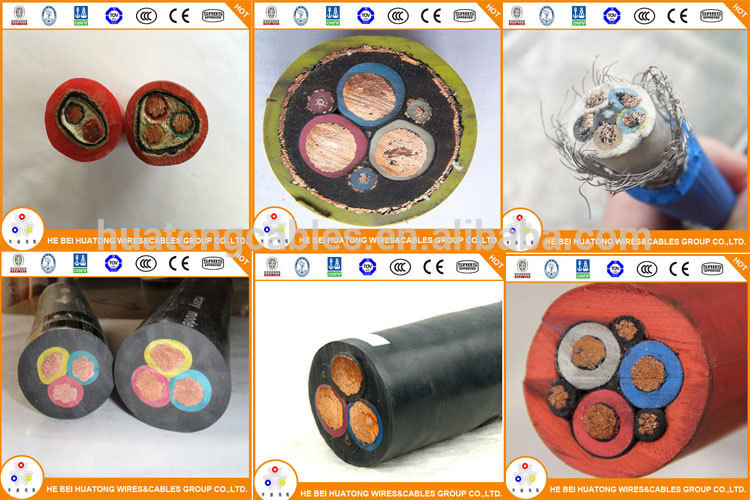

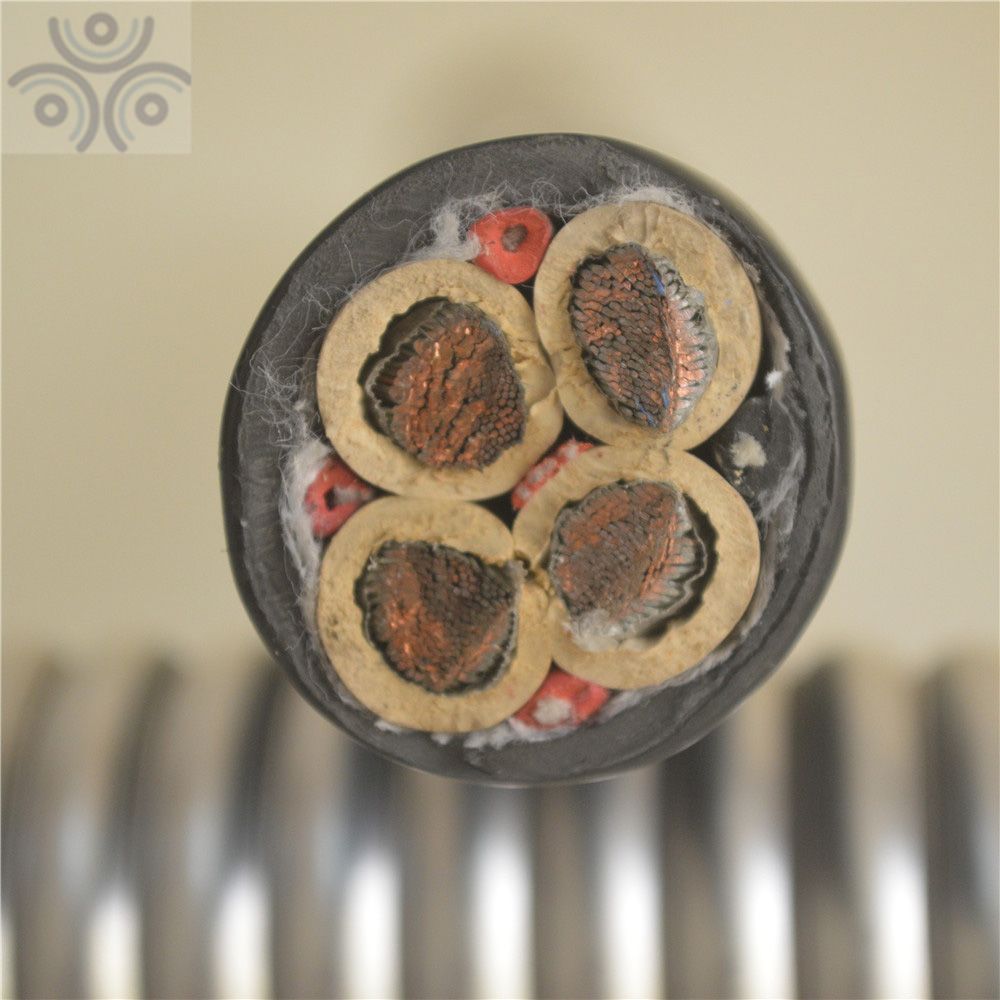

Details show

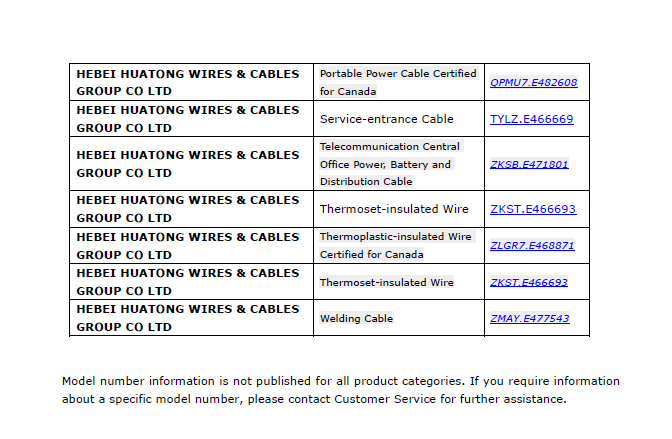

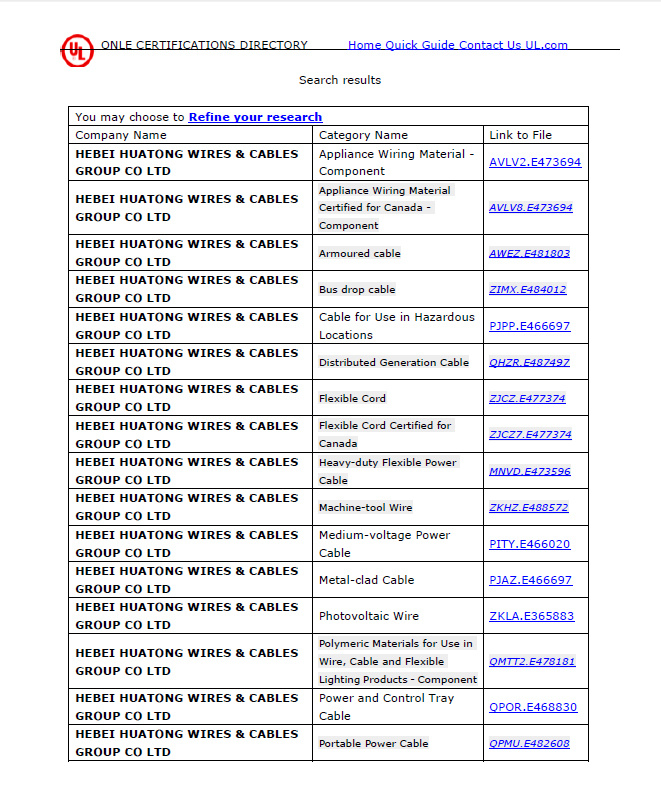

Certificate
We are one of China top rank cable&wire manufacturer.
Our products meet standards of GB, IEC DIN ASTM, JIS,NF, AS/NZS CSA GOST and so on.
we have obtained ISO9001,ISO14001,OHSAS18001,
UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
Company Information
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
