Types Porcelain Power Cutout Fuse (XM-1)

Name: Types Porcelain Power Cutout Fuse (XM-1)
Brand: all-electronics-online.com
SKU: 701066655
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 20.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain
Rated Voltage:	12kv
Rated Current:	100A, 200A
Breaking Current:	6300A, 10000A
Impulse Voltage:	110 Bil
Leakage Distance:	230mm
Service:	OEM, ODM
Sample:	Available
Delivery:	as Required
Operation:	Electric Type
Breaking Capacity:	High Voltage
Type:	Fuse
Usaga:	Outdoor Electric

Product Description

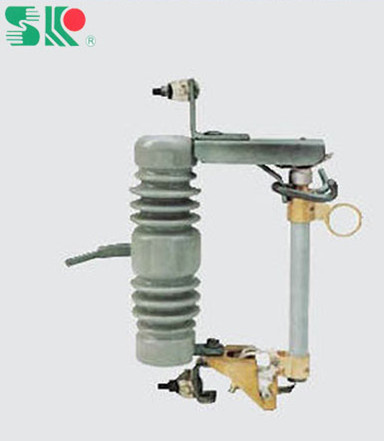

Export types porcelain power cutout fuse is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.

Type	Rated voltage (KV)	Rated current (A)	Breaking current (A)	Impulse voltage (BIL)	Power-frequency withstand voltage (KV)	Leakage distance (mm)	Weight (KG)	Dimensions
XM-1	12	100	6300	110	42	230	7.5	413112.5
XM-1	12	200	10000	110	42	230	8	413112.5

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
