U Type Mosi2 Mosi2 Electric Furnace Heating Element

Name: U Type Mosi2 Mosi2 Electric Furnace Heating Element
Brand: all-electronics-online.com
SKU: 730798332
Availability: InStock
Rating: 4.4 (102 reviews)

Price:	US $ 180/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-H1800

Product Description

U type MoSi2 mosi2 electric furnace heating element

Specifications of MoSi2 Heaters for Furnace

Materials: MoSi₂
Max. surface temperature: 1750 °C
Working temperature:Volume Density: 5 ~ 5.6g/cm3Bend strength: 15 ~ 25kg/cm3
- 1700°C (in air) Max. ( < 1 hour )
- 1600°C ( in air) continuous
- 1600°C (in N₂)
- 1220°C ~ 1500°C (in H₂)
Vickers hardness: (HV) 570kg/mm2)
Porosity rate: 7.4%
Water absorption: 2%
Heat extensibility: 4%

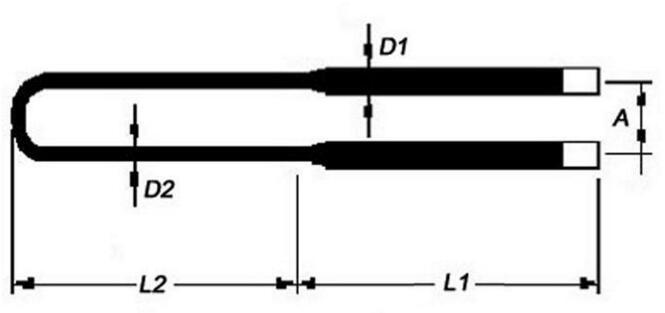

Dimension:

D1: Ø12mm
D2: Ø6mm
A: 30mm
L=L1+L2:=150+100=270mm

Resistivity Properties of MoSi₂ Heating Element

The resistivity of MoSi₂ heating elements rises with increase in temperature (shown in the graph below).
When the temperature of the heating stage is below 300°C,
less than 35% of the total output power should be applied to avoid stressing the elements with excessive current.
Generally the resistance of heating elements will not be affected by aging under normal operating conditions,
therefore old elements can be used together with new ones.

Zhengzhou CY Scientific Instrument Co., Ltd. Materials Science and Technology Co., Ltd. is a high and new technology enterprise registered in Zhengzhou city of Henan province, mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet. On the basis of sticking to independent innovation, the company absorbs extensively the advanced technology of excellent products at home and abroad. Meanwhile, the company studies, develops and manufactures various kinds of heating equipment and experimental instrument with consideration of our comprehensive national conditions. The company has solid technical force and forms a thorough research and development system by cooperating closely with a number of research institutes.
