Ucs2/UC2 Ceramic Capacitive Pressure Sensor, Ceramic Sensor with Compensated Sensor Output Signal, High Pressure Sensor, High Accuracy Sensor

Prod Model:	UCS2/UC2
Output Signal Type:	Mv

Product Description

Product overview

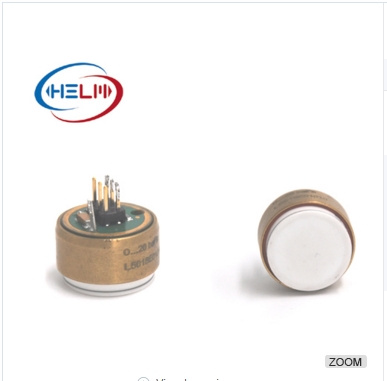

    UCS2/UC2 pressure sensor is a dry ceramic capacitive pressure sensor made of ceramic material using special process. Ceramics is a recognized highly elastic material resistant to corrosion, abrasion, shock and vibration. Its thermal stability can make its operating temperature reach up to -40 ~ 125 ºC, and it is provided with high measurement accuracy and high stability. Its biggest feature is: the measuring range can be as small as 500Pa and anti-overload capacity can reach up to 200 times the range, having completely solved the disadvantages of other types of sensors without a small range and with poor anti-overload capacity and poor medium compatibility in a small range. Besides the range of general sensors, the most distinctive features of this pressure sensor is its positive and negative gauge pressure function, e.g.: ± 2.5kPa, ± 10kPa and so on.

    UCS2/UC2 ceramic sensor will not produce process pollution because it does not have any filling liquid or liquid transfer. Therefore, it is extensively used in food, medicine and other industries. Additionally, as it is dry ceramic diaphragm, it will not be affected by the installation direction. The pressure transducer with it as the sensitive element is widely used in various places for pressure measurement.



Application
• The pressure sensor element Ceracore UCS2 delivers
a pressure-proportional voltage signal
• We offer support for the integration of
the Ceracore UCS2 into the customized application
• Dry capacitive ceramic sensor
• Basic ceramic material (99.9 % Al ₂O₃ )

- extremely high overload limit
- absolutely resistant to wear
- high temperature stability
- high long-term stability
- no hysteresis
- corrosion-resistant
• Active electronics
- sensor-specific signal conditioning
- high-accuracy pressure measurement with tempera-
ture stability

Diagram


Input
Measured variable:Choice of gauge pressure or absolute pressure
Measuring range:Gauge pressure measurement 0.1 to 70 bar, absolute pressure measurement 0.2 to 70 bar

Output
Zero point :0.50 V ± 0.05 V; applies to the respective lower range-value of the measuring range
Span:4.00 V ± 0.05 V
Characteristic curve:linear; max. non-linearity ≤0.2 % of span
Load:≥10 kΩ or ≤300 pF (with signal deviation <0.1 % of span)
Rise time:approx. 1 ms
Switch-on time:max. 10 ms
Long-term stability:max. 0.1 % of span per year
Output signal:0.5 to 4.5 V

Power supply
Supply voltage:
• 5 V DC stabilized, minimum 4.5 V / maximum 5.5 V
• Influence of supply voltage: no influence on linearity / proportional on lower range-value/ proportional on span, no influence on temperature compensation
Current consumption :Maximum 2 mA at a supply voltage of 5 V

Operating conditions: Installation
Orientation: Arbitrary. Operate the sensor system with the diaphragm pointing downwards. Otherwise
observe the position dependent zero point shift for small pressure ranges (≤ 400 mbar).
Weight:approx. 17 to 23 g, depending on measuring range
Dimensions Electrical connection

Operating conditions: Environment
Ambient temperature range:-40 °C to +125 °C (also applies to storage temperature)
Degree of protection:IP 00 as per DIN 60529 (IEC529); Climate class 3K3 DIN EN 60721-3-3

Operating conditions: Process
Reference operating conditions:As per DIN IEC 60770, T = 25 °C
Media :Gases and liquids
Material :Diaphragm: aluminum oxide ceramic Al ₂ O ₃ (99.9 %)
Process temperature limits:-40 °C to +125 °C, compensation temperature -20 °C to +80 °C
Thermal change:Thermal change of the lower range-value in the compensation temperature range: max. ±0.75 % of span, with extended specification ±1 % of spanThermal change of output span in the compensation temperature range: max. ±0.5 % of span. With measuring ranges ≤0.4 bar ±0.8 % of span, with extended specification ±1 % of span
Limiting medium pressure range:Overload limit: see "Ordering information" section, Overload influence: negligible
Vacuum resistance:UCS2 with nominal value 400 mbar up to 70 bar: 0 mbar abs
                                UCS2 with nominal value 200 mbar: 500 mbar abs (Version M in Ordering information)
                                UCS2 with nominal value 100 mbar: 700 mbar abs (Version L in Ordering information)

Ordering information
Ceracore UCS2

Sensor range; Overload (other measuring ranges and special versions on request)

A   0...100 mbar / 10 kPa/1.5 psi absolute; 4 bar/400 kPa/60 psi

B   0 to 200 mbar /20 kPa/3 psi absolute; 6 bar/600 kPa/ 90 psi

C  0 to 400 mbar /40 kPa/6 psi absolute; 6 bar/600 kPa/ 90 psi

D  0 to 1 bar /100 kPa/15 psi absolute; 10 bar/1 MPa/ 150 psi

E  0 to 2 bar /200 kPa/30 psi absolute; 18 bar/1.8 MPa/ 270 psi

F  0 to 4 bar /400 kPa/60 psi absolute; 25 bar/2.5 MPa/ 375 psi

G  0 to 10 bar /1 MPa/150 psi absolute; 40 bar/4 MPa/ 600 psi

H  0 to 20 bar /2 MPa/300 psi absolute; 40 bar/4 MPa/ 600 psi

I   0 to 40 bar /4 MPa/600 psi absolute; 60 bar/6 MPa/ 900 psi

J   0 to 70 bar /7 MPa/1050 psi absolute; 105 bar/10.5 MPa/ 1575 psi

L  0 to 100 mbar /10 kPa/1.5 psi relative; 4 bar/400 kPa/ 60 psi

M  0 to 200 mbar /20 kPa/3 psi relative; 6 bar/600 kPa/ 90 psi

N 0 to 400 mbar /40 kPa/6 psi relative; 6 bar/600 kPa/ 90 psi

O  0 to 1 bar /100 kPa/15 psi relative; 10 bar/1 MPa/ 150 psi

P 0 to 2 bar /200 kPa/30 psi relative; 18 bar/1.8 MPa/ 270 psi

R 0 to 4 bar /400 kPa/60 psi relative; 25 bar/5 MPa/ 375 psi

S 0 to 10 bar /1 MPa/150 psi relative; 40 bar/4 MPa/ 600 psi

T 0 to 20 bar /2 MPa/300 psi relative; 40 bar/4 MPa/ 600 psi

U 0 to 40 bar /4 MPa/600 psi relative; 60 bar/6 MPa/ 900 psi

V 0 to 70 bar /7 MPa/1050 psi relative; 105 bar/10.5 MPa/ 1575 psi

Calibration; Unit

A see additional specification (special measuring ranges with extended specifications)

1 Sensor range; mbar/bar

2 Sensor range; kPa/MP

3 Sensor range; psi
