Ui-P120 Series Intelligent Multifunction Pressure Transmitter Controller
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
UI-P120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
0.2%Fs,0.25%Fs |
| Medium: |
to 316L Have No Corrosive |
| Form Of Pressure: |
Absolute Pressure,Gage Pressure,Vacuum |
| Working Voltage: |
12~32VDC,24V@200mA(Maximum) |
| Type Of Sensor: |
Diffuse Silicon Sensor |
| Measuring Medium: |
to 316L Have No Corrosive |
Product Description
UI-P120 Series intelligent multifunction pressure transmitter controller
all digital circuit,high precision AD,stability and reliability.

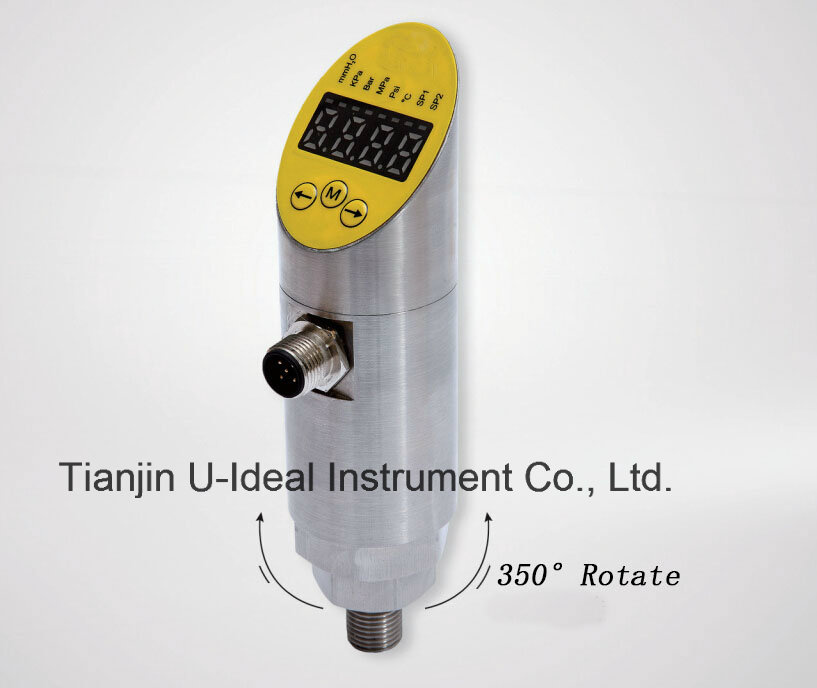

Display section can rotate 350 degrees, convenient installation and debugging
Current or voltage and RS485 function can be chose
two sets of relay output,have the function of backlash adjustable,sensitivity adjustable,hi-lo signal alarm,delayed.
-0.1to 100MPa all range is optional.
UI-P120 Series intelligent multifunction pressure transmitter controller has many function such as display,transmission,switching value,communication.
relative pressure:
Maximum measuring range:0.0~6.0MPa Minimum measuring range:0.0~10.0kPa
absolute pressure:
Maximum measuring range:0.0~6.0MPa Minimum measuring range:0.0~+10.0kPa
negative relative pressure:
Maximum measuring range::-0.1~+2.4MPa Minimum measuring range:-5.0~+5.0kPa
stability:precede 0.1%FS/year
temperature range:medium -20ºC~+280ºC
environment -20ºC~+70ºC
keeping -40ºC~+80ºC
