Product Description
Differential Pressure

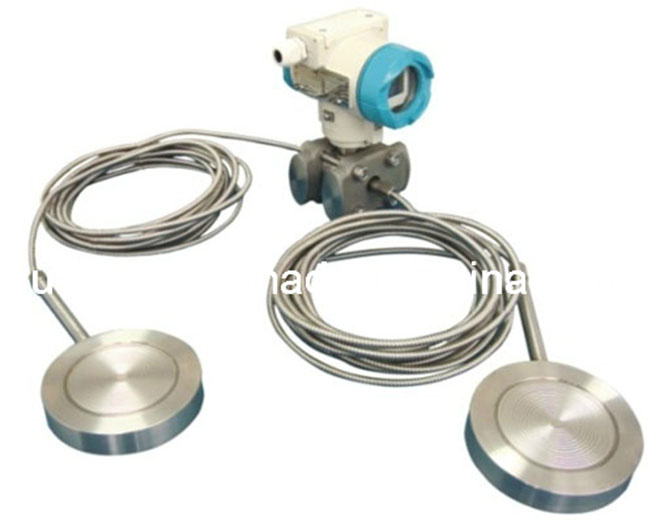

Transmitter-pressure sensorUI-P61 type Remote transmitter type pressure/differential pressure transmitter
UI-P61 Remote Differential pressure/pressure transmitter added sealed remote transmitting device. It can avoid the transmitter sensing parts contact with fluid directly. Is selected when the local condition as following:
1. The measured medium is corrosive;
2. The measured medium operation temperature is high;
3. High viscosity Medium or medium with solid particle susceptible to plugging.
4. The medium is easily solidify or frozen If leading pressure by extra tube.
5. Need wash the transmitter to avoid mixing when changing medium.
6. Must keep clean to prevent the pollution.
Specifications
1. Excellent performance and stability
2. Compact and light-weight design
3. Fieldbus communication capabilityDifferential Pressure Transmitter Produce by the cooperation of our Tianjin manufacture and Siemens. As other instruments, it is with high quality and good price.
Detailed Product Description
Tianjin U-ideal Instrument Co., ltd's UITDS Series differential pressure transmitter, in addition to measuring the medium differential pressure, pressure, absolute pressure of the process basic parameters, it include Flange type level transmitter, Remote transmission type differential pressure transmitter and pressure transmitter with capillary. We supply the corresponding fittings of installation, debugging and maintenance; Accessories such as contains various valves, transition joints and SIMATIC PDM field instruments management software.
Differential pressure transmitter Pressure transmitter
Measured medium: Gas, steam, liquid
High accuracy: 0.075% (including the dead zone, return difference, repeatability, etc. )
Wide rangability: 100: 1
A wide measuring range (not move):
Differential pressure range: 0-100PA ~ 3 MPa
High stability and reliability.
Long-term drift 0.1% / FS/five years, actually < 0.1% / 5 years
Five years don't need maintenance, saving maintenance costs
Effect of temperature and static pressure is minimal, negligible
One-way overvoltage characteristic is excellent.
High static pressure: 16 MPa, 42 MPa.
Wide range of temperature:
Ambient temperature - 40 ~ + 85 º C
The measured medium temperature: - 40 ~ + 120 º C
Output fit to a variety of field bus: 4 ~ 20 ma/HART, PROFIBUS PA, FF.
"Universal debug software SIMATIC PDM product can realize all transmitter remote online management.
Lightning protection, electromagnetic interference resistance prevention, vibration resistance, resistance to wet, over voltage resistance and environment temperature changing protection.
Abundance of debugging method: In field button, hand-held drill, SIMATIC PDM, control system.
Self diagnosis, fault alarm, circuit testing, self configuration
Universal mounting bracket
Fast dynamic response
Complete explosion-proof certification
Exia II CT6
UIP-T61 GP/DP Remote transmitting type pressure transmitter model selection
| UIP-T61 | Ordinary Type |
| UIP-T61C | Integrated |
| Code | Product Name |
| GP | Remote pressure transmitter |
| DP | Remote Differential pressure transmitter |
| Code | release valve |
| 4 | 6.2-37.4kPa |
| 5 | 31.1-186.8kPa |
| 6 | 117-690kPa |
| 7 | 345-2068kPa |
| Code | Flange adaptor |
| E | 4-20mA,Linear, Analog /damping adjustable |
| N | 4-20mA, digit intelligent type |
| S | 4-20mA,intelligent, HART protocal |
| Code | flange & Joints | drain/vent | diaphragm |
| 22 | 316SS | 316SS | 316L SS |
| Code | Liquid filling | Temperature |
| A | D.C silicon 200 | -40ºC~149ºC |
| B | D.C silicon 704 | 15ºC~315ºC |
| C | Inertia Fluid | -45'ºC~205ºC |
| Code | Remote Device |
| S1 | One remote device |
| S2 | Two remote device |
| Code | Indicator (If don't need local display, don't select) |
| M1 | Analog Scale, Linear head, 0-100% scale |
| M3 | LCD, linear head, 0-100% selectable |
| Code | Mounting bracket |
| B1 | Tube bending plate ( tube outside diameter Φ50~60) |
| B2 | Plate bending plate |
| B3 | Tube flat plate ( tube outside diameter Φ50~60) |
| Code | Flange adaptor |
| N | no flange adapter {with 1/4NPT female at flange to connect the press-leading lines |
| C1 | 1/2NPT female screw type flange adapter, connect pilot pressure joint and welding press-leading tube(stainless steel) |
| C2 | M20x 1.5 Male screw flange adapter, connect pilot pressure joint and welding press-leading tube(stainless steel) |
| Code | Explosion-proof (don't select is standard type) |
| d | explosion-proof Exd II CT6 |
| i | Intrinsically safety Exia II CT6 |
| Code | length or remote device capillary tube |
| | Unit: m write length directly |
| / | Remote device flange model see to table after (PFW, RTW, RFW, EFW) |
| Typical Model: UIP-T61 DP 4 E 22 A S2 M1 B1 N-5m |
Note:E type minimum range is URU6; N, S type minimum range is URU15.
