UK-16n Parallel Wire Connector Electric Meter Terminal Block

Name: UK-16n Parallel Wire Connector Electric Meter Terminal Block
Brand: all-electronics-online.com
SKU: 716409015
Availability: InStock
Rating: 4.7 (44 reviews)

Price:	US $ 0.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Protection:	Resistance to Environmental
Application:	Wer Supply
Connection Mode:	In-Line Connector

Product Description

UK series Insulation Voltage: 600V. Proof voltage: 2500V IMIN.

Resistibility: 100 M ohm
UK3N, UK5N, UK6N, UK10N, UK16N, UK35N, UK series Insulation Voltage: 600V. Proof voltage: 2500V IMIN. Resistibility: 100MΩ MIN.

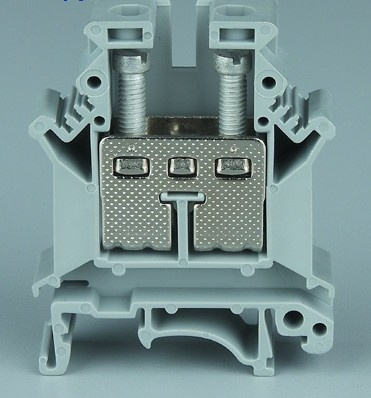

UK-16N parallel wire connector electric meter terminal block

Summarize and Trait:
(1)End cover , Thickness: 1.5mm2
(2) 10 center connection-strips can be divided into 2 position 3 position
(3) Separating plate be used for electrical sepatation of neighbouring bridges
(4) Parition plate : thick 1.5mm
(5) Univfersal end fixed piece

Universal Terminal Blocks

Model:	UK-16N
W/T/H:	42.5/12.2/50.5
Screw nominal diameter:	M4
Torsion torque:	1.5-1.8
Stripping length:	11

Height mm	54/61.5/59
Depth/Width/Plate depth mm	12.2/42.5/1.5
Current/Cross-section A/mm²	101/25.0

Technical date

Rated date	IEC	UL	CSA	EN50019
Rated voltage	800	600	600	750
Rated current	101	85	85	88
Rated cross-section	16.0	AWG22-4	AWG22-4	16.0
Rated impulse withstand/Pollution severity	8KV/3
UL 94 flammability rating of insulation material	V-0 or V-2
Insulating material/Approval	PA66

(H05V/H07V) Lead Rated Cross-section

Solid/Flexible mm²	2.5-25.0/4.0-16.0
Flexible with ferrule mm²	1.5-16.0/1.5-16.0
Stripping length mm/in	11
Screw-thread/Tightening torque Nm	M4/1.2-1.5
