UK-35n Wire Connector Electric Hanroot PCB Terminal Block

Name: UK-35n Wire Connector Electric Hanroot PCB Terminal Block
Brand: all-electronics-online.com
SKU: 716411695
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 0.41/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection

Product Description

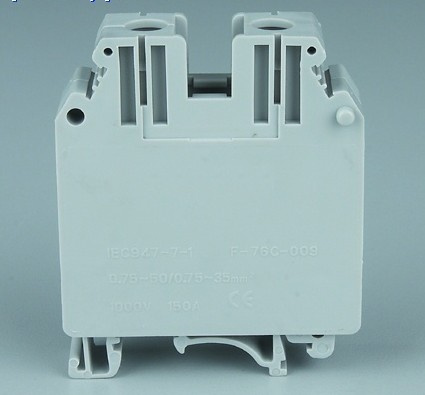

UK-35N track type terminal blocks

Characteristics:
1,Reasonable installation structure design, wide general-purpose nature, can be used both G type and TH type guide rail. If it is above 50mm2, adopts fasten accessory installation.

2,Small volume, complete set of specification, big connected conductor sectional area and good electrical conductivity, the one that is below 50mm2 adopts copper press line frame and copper fasten screw; and the one that is above 50mm2 adopts copper press line frame and steel screw and copper skirt plate. It has big tighten moment and self-locking function.

3,The strong combined function makes the connection of conductor be simpler .

UK terminal block data

UK-35N
Standard		IEC
Rated voltage		800V
Rated current		125A
Diameter		10-35mm 2
Thickness / width / Height		15.2/51.2/62mm
Rated impulse voltage / pollution level		8kV/3
Strip length		16mm
Screws Specifications		M6
Insulation material / flame retardant grade		PA/V-0

Model	Hard Wire (mm²)	Soft Wire (mm²)	Rated Current (A)	Rated Voltage (V)
UK2.5B	0.2-4	0.2-2.5	32	660
UK3N	0.2-4	0.2-2.5	32	800
UK5N	0.2-6	0.2-4	41	800
UK6N	0.2-10	0.2-2.5	57	800
UK10N	0.5-16	0.5-10	76	800
UK16N	2.5-25	4-16	101	800
UK35N	0.75-50	0.75-35	150	1000
UK50N	16-50	25-50	150	1000
UK95N	25-95	35-95	232	1000
UK150N	35-150	50-150	309	1000

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
