UK Series Split Core Current Transformer for Heyi Split Core CT 100/5 to 1000/5A

Name: UK Series Split Core Current Transformer for Heyi Split Core CT 100/5 to 1000/5A
Brand: all-electronics-online.com
SKU: 796332915
Availability: InStock
Rating: 4.4 (130 reviews)

Price:	US $ 1-25/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UK
Model:	UK Split Core Current Transformer 13mm
Is Customized:	Yes
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

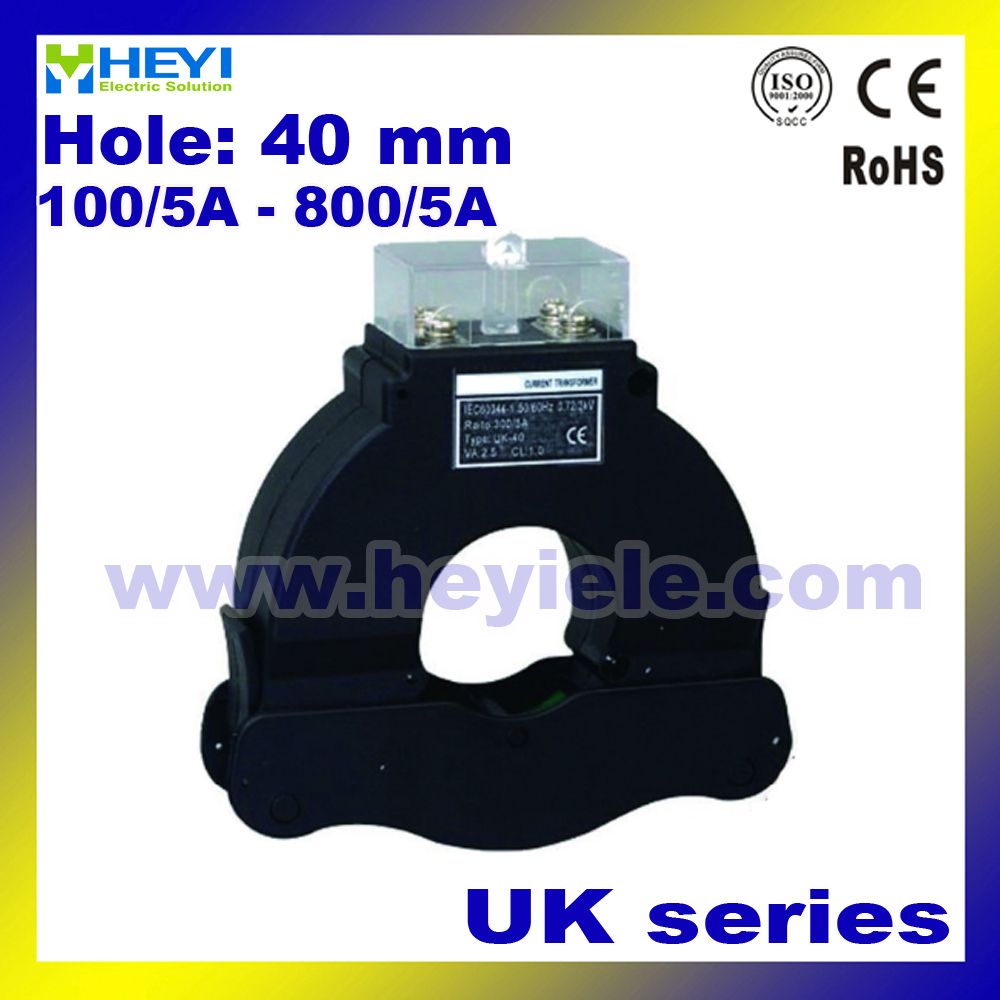

UK Series split-core current transformer has been specially designed to facilitate their installation in new or already existing networks.

They may be installed without opening any cable or bus-bar circuit.An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.It can save time and the installations costs.

Features

Doubie-screw fastening,safe,easy to install,portable.

Wide inner window,allowing clamping of big cables or bus-bars.

Wide range of sizes to accommodate all the existing installations.

Application

Current measurement,monitoring and protection for electrical wiring and equipment.

Current and power measurement for electric motors,lighting,air compressor,heating and ventilation system,air-condition equipment and automation-control system.

Current,power and energy monitoring device.

Relay protection device

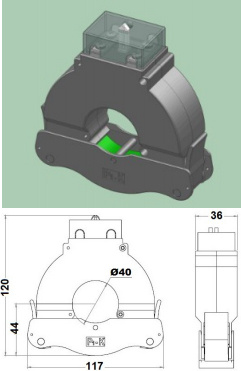

Circuit connection diagram

Technique Index

Electrical Paramenter		Mechanical Parameter

Frequency	50-400Hz	Case	PA/UL94-V0
Rated Input	100A-1000A	Bobbin	PA
Measuring range	5%In-130%In	Core	Silicon steel
Rated Output	5A/1A	Internal structure	Epoxy
Ratio	≤±0.5%	Construction	Tie
Phase angle	≤±30min	Operating Temp	_-25°C~+75°C
Dielectric strength	2.5KV/1mA/1min	Operating Humidity	≤85%
Insulation Resistamce	DC500V/100MΩmin	Output Connection	Terminal

Type Selection(Output:A)

Input/Output (A)	Burden(VA)/Class			Input/Output (A)	Burden(VA)/Class
	0.5	1.0	3.0		0.5	1.0	3.0
	0.5	1.0	3.0		0.5	1.0	3.0
100/5	1.5	2.5	3.75	100/1	1.5	2.5	3.75
150/5	1.5	2.5	3.75	150/1	1.5	2.5	3.75
200/5	1.5	2.5	5	200/1	1.5	2.5	5
250/5	1.5	2.5	5	250/1	1.5	2.5	5
300/5	2.5	2.5	5	300/1	1.5	2.5	5
400/5	2.5	3.75	5	400/1	2.5	3.75	5
500/5	2.5	3.75	5	500/1	2.5	3.75	5
600/5	2.5	3.75	5	600/1	2.5	3.75	5
800/5	5	10	15	800/1	5	10	15
1000/5	5	10	15	1000/1	5	10	15

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
