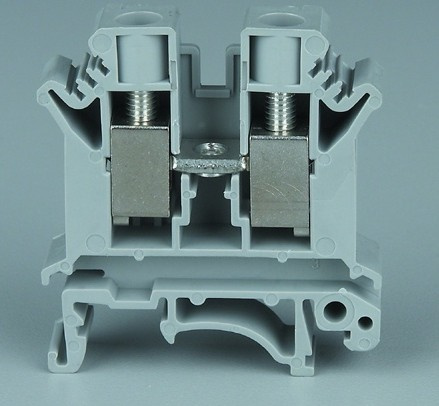

UK Type DIN Rail Terminal Block UK-10n

Name: UK Type DIN Rail Terminal Block UK-10n
Brand: all-electronics-online.com
SKU: 716408575
Availability: InStock
Rating: 4.3 (95 reviews)

Price:	US $ 0.32/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Integrated IC
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection

Product Description

UK series Insulation Voltage: 600V. Proof voltage: 2500V IMIN. Resistibility: 100 M ohm
UK3N, UK5N, UK6N, UK10N, UK16N, UK35N,

UK10N
Insulation Voltage 800V
Insulation Circuit 76A
Proof voltage 2500V, IMIN
Resistibility 100MΩ MIN
Use wire: 0.5-16mm2Max

product name	din rail terminal
model	UK3N
material	PA66, Alloy copper
main features	Rated voltage UN :800V
	Rated current IN:57A
	Rated cross-section:4 mm 2
	Rated surge voltage 8000V/min
	Material: PA66, Alloy copper,red copper
	Stripping length:10mm
	Strew-thread:M3
	Tightening torque:0.6-0.8Nm
	Inflammability class acc.toUL94 V0

UK terminal block data

Model	Hard Wire (mm²)	Soft Wire (mm²)	Rated Current (A)	Rated Voltage (V)
UK2.5B	0.2-4	0.2-2.5	32	660
UK3N	0.2-4	0.2-2.5	32	800
UK5N	0.2-6	0.2-4	41	800
UK6N	0.2-10	0.2-2.5	57	800
UK10N	0.5-16	0.5-10	76	800
UK16N	2.5-25	4-16	101	800
UK35N	0.75-50	0.75-35	150	1000
UK50N	16-50	25-50	150	1000
UK95N	25-95	35-95	232	1000
UK150N	35-150	50-150	309	1000
