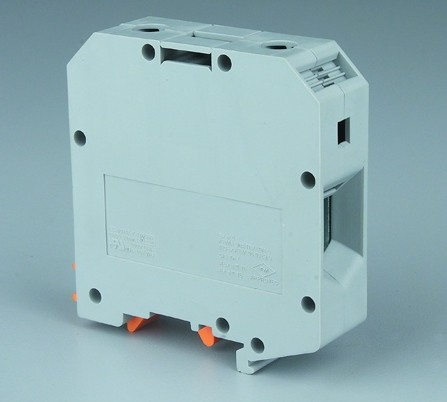

Ukh50 UK Series Universal Terminal Blocks

Name: Ukh50 UK Series Universal Terminal Blocks
Brand: all-electronics-online.com
SKU: 716411935
Availability: InStock
Rating: 4.5 (125 reviews)

Price:	US $ 0.33/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

UK3N, UK5N, UK6N, UK10N, UK16N, UK35N,
UK series Insulation Voltage: 600V. Proof voltage: 2500V IMIN. Resistibility: 100MΩ MIN.

UKH50
Type of connection: Screw connection
Cross section: 16 mm² - 50 mm²
Current: 150A
Voltage: 1000V
Width: 70.5mm
Color: Gray
Mounting type: TH35/7.5

Item	Designation	Description
Assembly
End clamp/end stopper	E/UK	for assembly on TH35/7.5 DIN rail
Bridges
bridge	FB1 12-10	Number of positions: 10, can be divided into 2 or 3 positions Material: aluminum
Marking
Marking stand	UBE/D	width: 15mm
	JHB1	width: 10mm
	EUK/B	transparent

Specifications
Part Name:UKH50 Screw Terminal Block
Wire Range:16.0-50.0 mm2/6-1/0AWG

Part Name:	UKH50 Screw Terminal Block
Wire Range:	16.0-50.0 mm2/6-1/0AWG
	IEC	UL	CSA	EN50019
Rated Voltage:	800V	600V	600V	750V
Rated Current:	101A	85A	85A	88A
Size (mm/in):	83.5/20/70.5 mm
Strip length (mm/in):	24mm/0.94in
Wires:	Applied for any kind of wires
Connect Ways:	screw-clipping
Entry Type:	Side-entry
Peak Voltage:	8KV
UL94 Insulation Material:	V 0 or V 2
Insulation Material:	PA66

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
