UL Approved 2pin Power Connector/Fast Latching Connector

Name: UL Approved 2pin Power Connector/Fast Latching Connector
Brand: all-electronics-online.com
SKU: 790900495
Availability: InStock
Rating: 4.6 (118 reviews)

Price:	US $ 5.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YP-20-C02PE-01-001&YP-20-J02SX-01-001
Cable Specification:	2.5mm-4mm2/14-12AWG
Diameter Range:	Od8-12mm
Rated Current:	20A
Operating Voltage:	500V
Protection Level:	IP65/IP67
Gender:	Male
Application:	UHF

Product Description

UL approved 2pin power connector/fast latching connector

Product Information:

YP-20 series electrical connectors:
1. multi-core design styles (2/3/4/5/7/9/12 pin);
2. Zinc alloy material against high frequency electromagnetic &radio interference;
3. gold-plated contacts, high-strength corrosion resistance;
4. electrical conductivity effectively deal with temperature rise;
5. PBT shell, stable electrical performance, anti-explosion;
6. unique docking design (extends infinitely long);
7. rated current: 20A;
8. protection level: IP65/ IP67 waterproof;
9. CNLINKO Provided Newest Product YP-20 2 Pin Female Male Power Cord Connector.

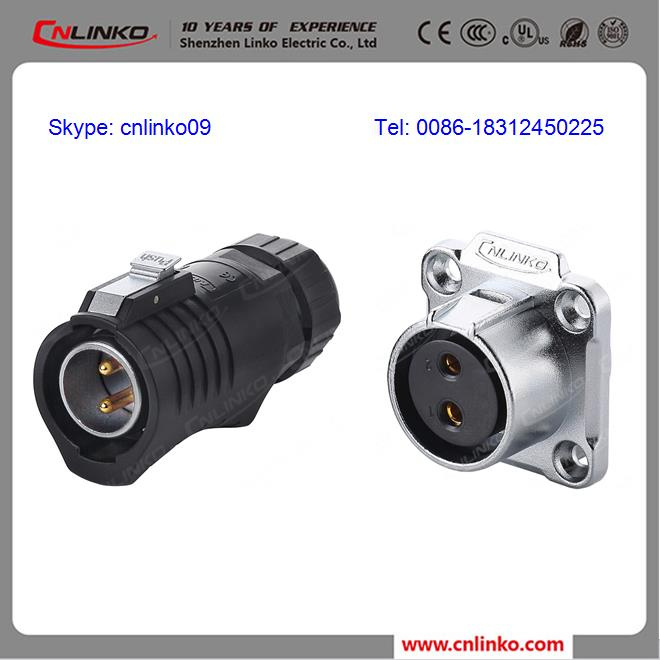

Product Photos:
Product Datasheet:

YP-20-C02PE-01-001&YP-20-J02SX-01-001
Specifications:
Connecting mode:	plug/ unplug
Protection level:	IP65/ IP67
Cable specification:	2.5mm2~ 4mm2/ 14~12 AWG
Diameter range:	Φ8mm ~ Φ12mm
Contact diameter×Qty:	Φ2.7×2
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating &unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Pressure &Solder
Flammability rating:	UL94-V0
Temperature rise:	20A contact temperature below 30°C; 25A contact temperature below 40°C; 30A contact temperature below 50°C

Material:
Shell &insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- plug/ unplug for more than 500 times, socket with metal cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Payment term & Contact Information:

Packaging:
10pcs/small box, 100pcs/middle box, 240pcs/master box
