UL Approved Insulation FEP Electrical Wire High Temperature Resistant Wire

Name: UL Approved Insulation FEP Electrical Wire High Temperature Resistant Wire
Brand: all-electronics-online.com
SKU: 839723865
Availability: InStock
Rating: 5 (126 reviews)

Price:	US $ 0.1-2/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	1333
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Teflon
Certification:	CSA,Ts16949
Application:	Home Application,LED Lamp, Oven,Machine
Conductor Material:	Tinned Copper
Sheath Material:	FEP
Range Of Application:	Home Application,LED Lamp, Oven,Machine
Brand:	Mysun

Product Description

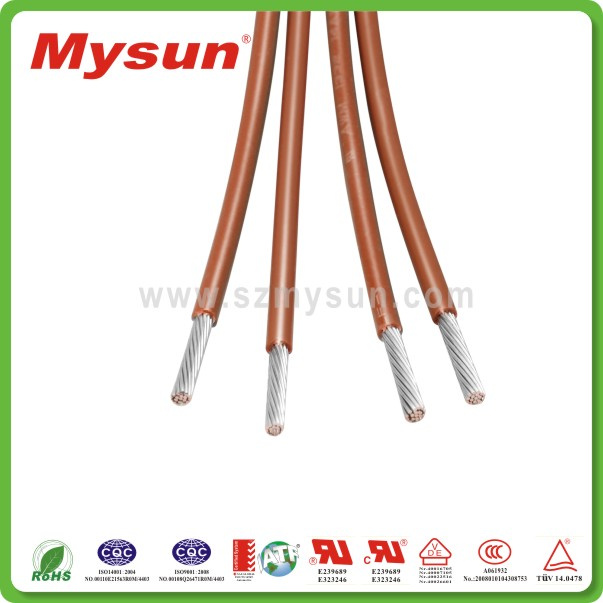

UL Approved Insulation FEP Electrical Wire High Temperature Resistant wire

Conductor			Insulation		Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
30	1/0.26	0.26	0.305	0.87	361	610/2000
30	7/0.10	0.30	0.305	0.91	361	610/2000
28	1/0.32	0.32	0.305	0.93	227	610/2000
28	7/0.12	0.36	0.305	0.97	227	610/2000
26	7/0.16	0.48	0.305	1.09	143	610/2000
26	19/0.10	0.48	0.305	1.11	143	610/2000
24	1/0.50	0.50	0.305	1.11	89.3	610/2000
	7/0.20	0.60	0.305	1.21
	19/0.12	0.60	0.305	1.21
22	1/0.65	0.65	0.33	1.31	56.4	305/1000
	7/0.254	0.76	0.33	1.42
	19/0.15	0.75	0.33	1.41
20	1/0.81	0.81	0.33	1.47	35.2	305/1000
	7/0.31	0.96	0.33	1.59
	19/0.19	0.93	0.33	1.59
18	1/1.12	1.02	0.33	1.68	22.2	305/1000
	7/0.39	1.17	0.33	1.83
	19/0.235	1.17	0.33	1.83
16	1/1.30	1.30	0.33	1.96	14	305/1000
	7/0.49	1.47	0.33	2.13
	19/0.30	1.50	0.33	2.16
14	1/0.81	1.85	0.33	2.51	8.78	305/1000
12	7/0.31	2.35	0.33	3.01	5.53	305/1000
10	19/0.19	3.05	0.33	3.71	3.476	305/1000

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
