UL Awm High Temperature Flexible Silicone Electrical Wire

Name: UL Awm High Temperature Flexible Silicone Electrical Wire
Brand: all-electronics-online.com
SKU: 835673475
Availability: InStock
Rating: 4.5 (74 reviews)

Price:	US $ 0.1-0.5/Meter
Min Order:	6100/Meter
Pay Type:	Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3135
Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	Silicone Rubber
Certification:	CSA, Ts16949
Application:	Home Appliance, Head Lamp, Industrial Machine,
Conductor Material:	Tinned Copper
Sheath Material:	Silicone Rubber
Range Of Application:	Home Appliance, Head Lamp, Industrial Machine,
Brand:	Mysun

Product Description

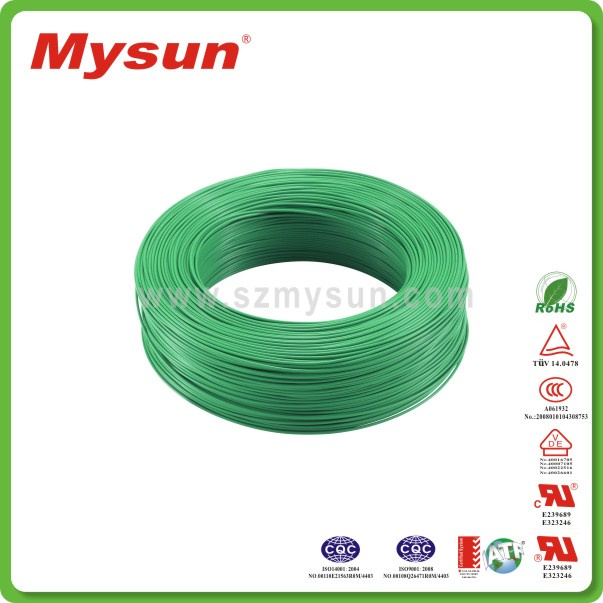

UL awm high temperature Flexible Silicone Electrical Wire

Specifications:

Retad voltage	600V
Retad temperature	200°C
Insulation	silicone rubber
Conductor	tinned copper wire
Standards	UL 758
Application	home appliances/ leds/industrial machine
M/FT	305/1000
Size	AWG 26,24,22,20,18,16,14,12
Color	white,black,red,brown,yellow,blue,green,transparent etc.

L3135 dimensions:

Conductor			Insulation		Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.Cond Resistance (Ω/KM)	Unit length (M)(Ft)
26	7/0.16	0.48	0.78	2.04	143	305/1000
24	7/0.20	0.61	0.78	2.17	89.3	305/1000
22	7/0.254	0.77	0.78	2.33	56.4	305/1000
20	7/0.31	0.94	0.78	2.50	35.2	305/1000
18	7/0.39	1.19	0.78	2.75	22.2	305/1000
16	7/0.49	1.49	0.78	3.05	14	305/1000
24	11/0.16	0.61	0.78	2.17	89.3	305/1000
22	17/0.16	0.76	0.78	2.32	56.4	305/1000
20	26/0.16	0.94	0.78	2.50	35.2	305/1000
18	41/0.16	1.18	0.78	2.74	22.2	305/1000
16	26/0.254	1.49	0.78	3.05	14	305/1000
14	41/0.254	1.87	0.78	3.43	8.78	305/1000
12	19/0.47	2.63	0.78	3.92	5.53	305/1000
0.30mm²	12/0.18	0.71	0.78	2.27	59.78	305/1000
0.50mm²	20/0.18	0.92	0.78	2.48	40.1	305/1000
0.75mm²	30/0.18	1.13	0.78	2.69	26.7	305/1000
1.00mm²	40/0.18	1.31	0.78	2.87	20	305/1000
1.25mm²	50/0.18	1.46	0.78	3.02	14.35	305/1000
2.00mm²	41/0.254	1.87	0.78	3.43	8.78	305/1000
2.50mm²	50/0.254	2.08	0.78	3.64	7.16	305/1000

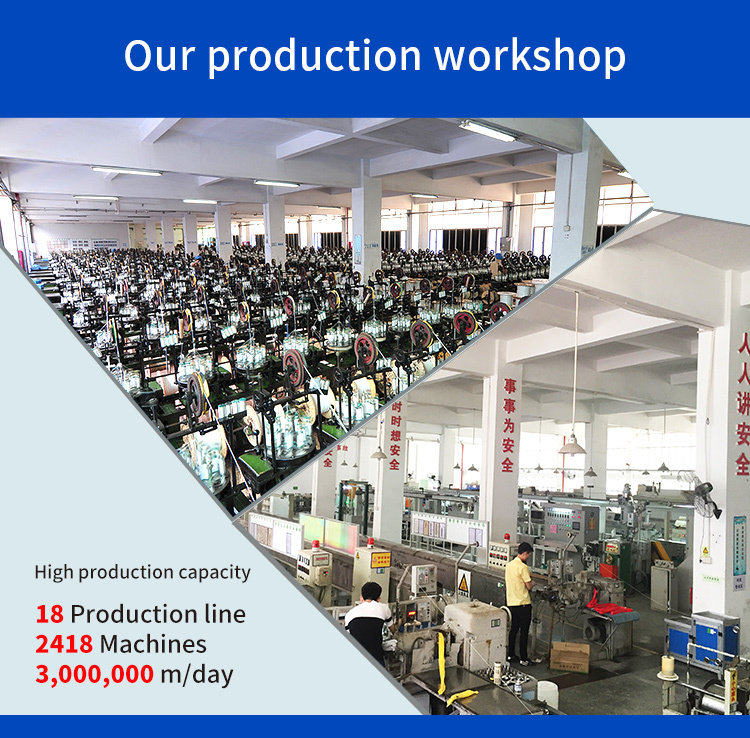

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
