| Prod Model: |
YM-20-C03PE-01-001 YM-20-J03SX-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
UL, CE, RoHS, CCC, ISO9001 |
| Protection Level: |
IP65/IP67 |
| Current Rating(a): |
20A |
| Shell & Insulated Parts: |
High Performance Engineering Plastics |
| Hardware Matel: |
Zinc Alloy (Pearl Hard Chromium) |
| Connecting Mode: |
1/4 Bayonet Connect |
| Assembly: |
Solder |
| Operating Voltage: |
500V |
| Contact Pin: |
Copper Alloy(Gold-Plated) |
| Export Markets: |
Global |
| Type: |
Three Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Brand: |
Cnlinko |
Product Description

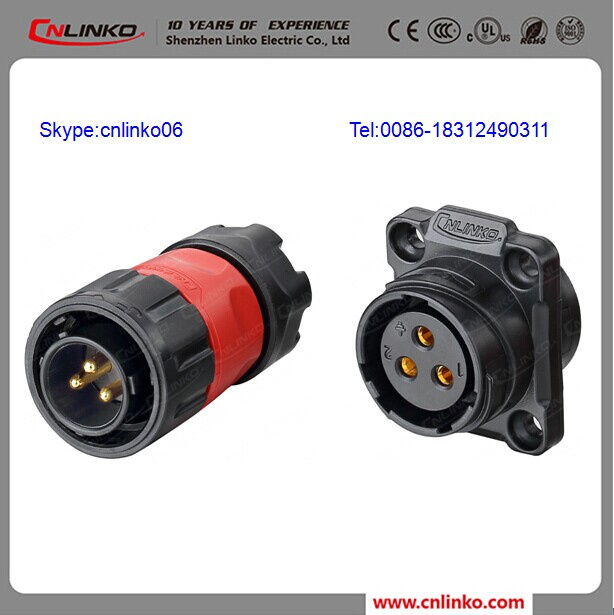

UL/CE/ROHS Certification Waterproof IP67 Solar Panel 220V 3Pin 20A Circular Connector
YM Series Product Description:
YM series connectors,using high-end injection molding PBT material,ensuring stable performance,multi-core design of the product,while meeting the needs of a number of power and signal equipment,the central shell distinctive logo,highlighting the latest design cnlinko.
1:Multi-pins(2-12 PINGS) for varies industrial demands
2:PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation
3:Gold-plated contact, high performance of corrosion resistance and electrical
4:Conductivity effectively deal with temperature rise.
5:1/4 mount connector, easy operation and installation
6:Dustproof cover design under off-working condition
7:Rated current is 20A rms
8:Protection level:IP65/67
Specifications:
Connecting mode | 1/4 bayonet connect |
| Protection level | IP65/67 |
| Cable specification | 2.5mm ² ~ 4mm ² /14~12AWG |
| Diameter range | Φ8mm ~Φ12mm |
| Contact diameter ×Qty | Φ2.7x3 |
| Current rating(A) | 20A |
| Operating voltage(AC.V.rms) | 500V |
| Withstand voltage(AC.V)1min | 2500V |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Prevent the combustion level | UL94-V0 |
| Temperature rise | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C |
| Color | Red |
| Protective housing | PBT Material |
| Install method | 1/4 Quick bayonet |
| Material | |
| Shell&Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Assembly wire | Solder |
| Copper needles | Copper alloy(gold-plated) |
| Waterproof | Silica gel |
