UL Certificate Good Quality PVC Insulated Wire UL1007

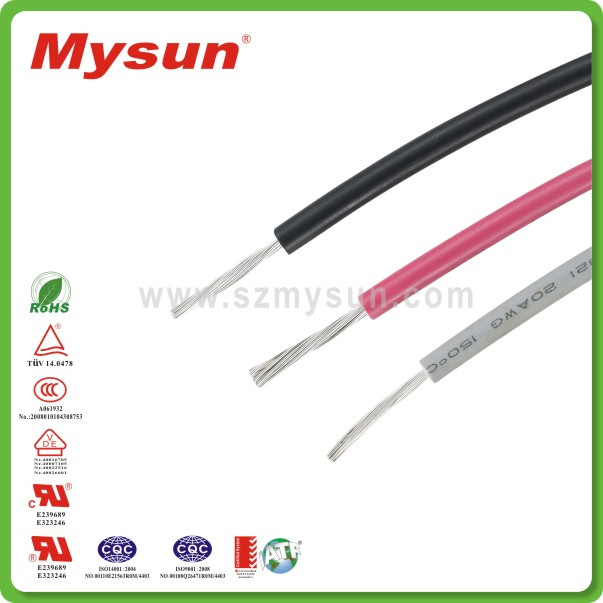

Name: UL Certificate Good Quality PVC Insulated Wire UL1007
Brand: all-electronics-online.com
SKU: 833187025
Availability: InStock
Rating: 4.9 (37 reviews)

Price:	US $ 0.05-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1007
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CSA, Ts16949
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

Product Description

Specifications:

Nominal voltage: 600V

Temperature range: 80C

Standard: UL 758

Conductor: Tinned copper

Insulation: PVC

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
32	7/0.08	0.24	0.38	1.00	542	610/2000
30	7/0.10	0.30		1.06	347
28	7/0.127	0.38		1.14	218
26	7/0.16	0.48		1.24	138
24	11/0.16	0.61		1.37	85.9	305/1000
22	17/0.16	0.76		1.52	54.3
20	21/0.18	0.95		1.71	33.9
18	34/0.18	1.21		1.97	21.4
16	26/0.254	1.50		2.26	13.5

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
