UL Certificated 600V Teflon Wire FEP Insulation Wire

Name: UL Certificated 600V Teflon Wire FEP Insulation Wire
Brand: all-electronics-online.com
SKU: 833338585
Availability: InStock
Rating: 5 (113 reviews)

Price:	US $ 0.1-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL1330
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Teflon
Certification:	CSA, Ts16949
Sheath Material:	Teflon FEP PFA PTFE ETFE
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

Product Description

Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL 758

Insulation: FEP

Conductor: tinned copper,nickel plated copper,silver plated copper

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Inside thickness(mm)	Diameter (mm)
28	7/0.12	0338	0.50	1.38
26	7/0.16	0.48	0.50	1.48
24	1/0.50	0.50	0.50	1.50	89.3	610/2000
24	7/0.20	0.60	0.50	1.60	89.3	610/2000
22	1/0.65	0.65	0.50	1.65	56.4	305/1000
	7/0.254	0.76		1.75
	19/0.15	0.75		1.75
20	1/0.81	0.81	0.50	1.81	35.2	305/1000
	7/0.31	0.96		1.96
	19/0.19	0.93		1.93
18	1/1.02	1.02	0.50	2.02	22.2	305/1000
	7/0.39	1.17		2.17
	19/0.235	1.17		2.17
16	1/1.30	1.30	0.50	2.30	14	305/1000
	7/0.49	1.47		2.47
	19/0.30	1.50		2.50
14	19/0.37	1.85	0.50	2.85	8.78	305/1000
12	19/0.47	2.35	0.50	3.35	5.53	305/1000
10	19/0.61	3.05	0.50	4.00	3.476	305/1000

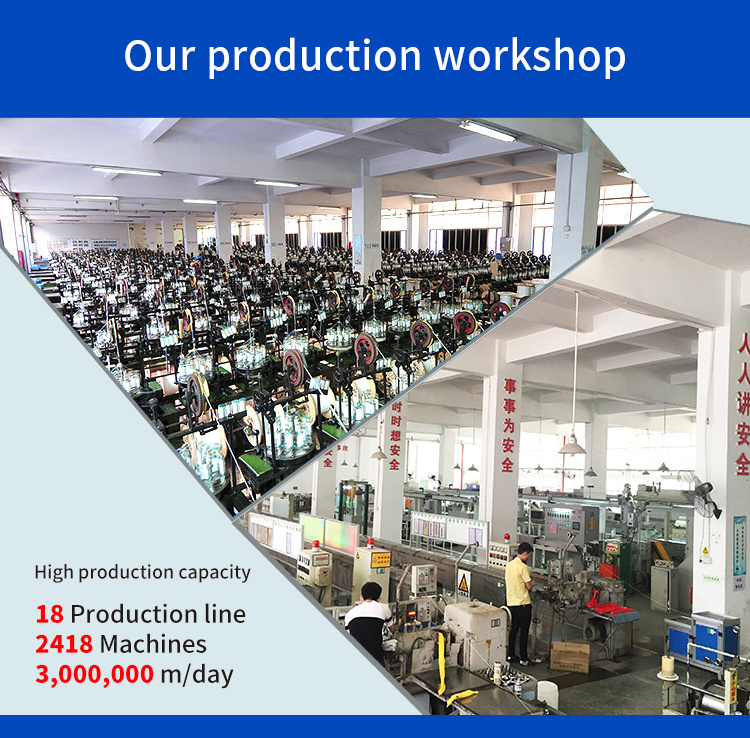

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
