| Prod Model: |
HW-MS03 |
| Supply Voltage: |
DC 3.7V-24V |
| Current: |
<8mA |
| Operating Voltage: |
Vcc=0V Vcc=+3.3V(by Custom) |
| Trigger Way: |
Repeat(Default) |
| Frequency: |
10.525GHz |
| Delay Time: |
Default 2 S-3s ( Adjustable) |
| Size: |
51*26mm |
| Distance: |
Normal=10m ,Custom=0.5m-20m |
| Angle: |
180-360 |
| Output: |
Directly with a Large Load |
| Metal Coating: |
Tin |
| Mode Of Production: |
SMT |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Customized: |
Customized |
| Condition: |
New |
| Certification: |
Ce |
Product Description
New Intelligent security lighting series microwave motion sensor module
Promotional 3.7V~24VDC input voltage Motion Sensor Detector detection Module for electronics products HW-MS03
Ultra-thin microwave sensor module for long distance motion sensor module Adjust distance and deleay time HW-MS03
HW-S03 microwave module , Samples can be sent to you for testing
1.Detail:

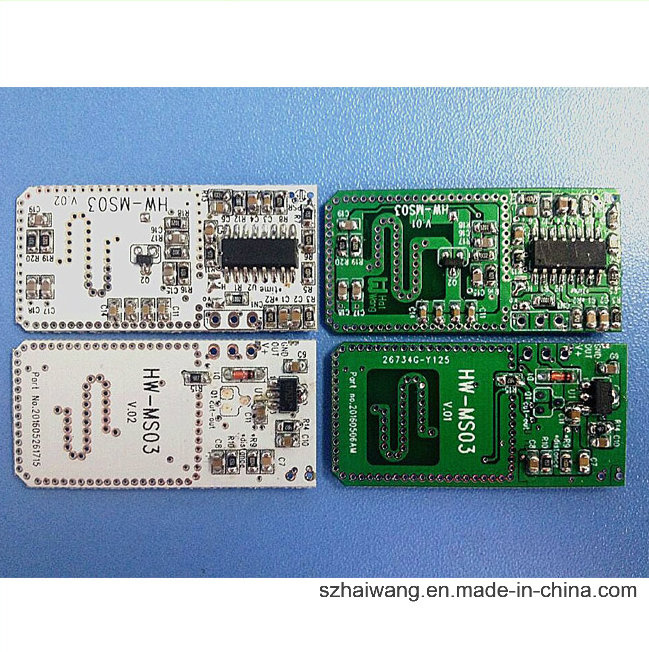

HW - MS03 is our company newly developed MS series in a single PCB microwave sensor module. The product is particularly suited to ultra-thin design of intelligent household appliances, security products, lighting products and other electronics. This unique circuit structure design, function expansion, the strength of the strong compatibility and high cost performance advantages, is the leading the market advantage of the single panel module.
We can custom the module as your request,welcome to ask me.OEM is highly welcomed.
2.Technical parameters:
| NO. | Items of parameter | Specifications of parameter |
| 01 | Power Supply input Voltage | 3.7V~24VDC(by custom) |
| 02 | Output voltage | Vcc=+3.3V |
| 03 | Input current | Static Iin≤5mA; Srends Iin≤6mA |
| 04 | Output Way | High Low Level VCC=3V |
| 05 | Sensor distance | Default:10m(indoor test) |
| 06 | Delay-time for output | Default:2sec. |
| 07 | frequency range | FT=2.5GHz-5.8GHz |
| 08 | Outline size | single-PCB:40X20mmx3mm |
3. Warm note:
1.Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an electric shock.
2.Avoid installed in the rain, to prevent damage or affect the lifetime.
3.Better install far away from the place of the magnetic field or the conductor to avoid wrong actions
