| Prod Model: |
GN800/1000 |
| Max. Power: |
800W |
| Net Weight: |
61kg |
| Warranty: |
1 Year |
| Supply 1: |
Lithium Ion Battery Materials |
| Supply 2: |
Lithium Ion Battery Machine |
| Supply 3: |
Thermal Battery Materials |
| Product Name: |
Ultrasonic Welding Machine |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Parallel Connection |
| Standard Voltage: |
220V |
| Usage: |
Lithium Ion Battery Machine |
Product Description
Welcom to contact us any time:

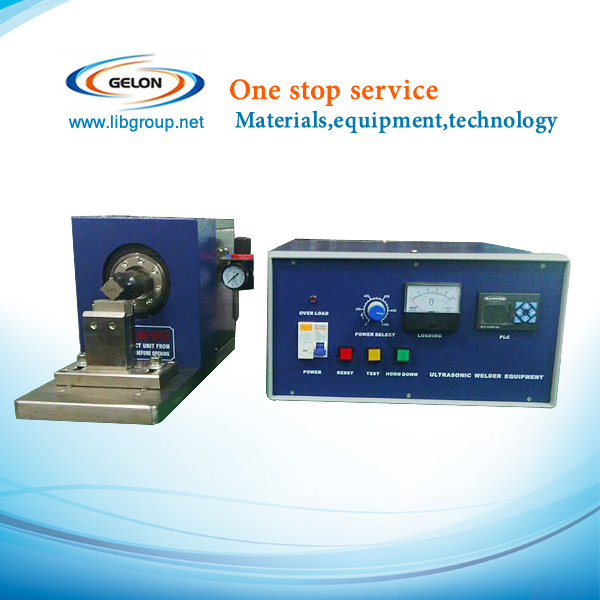

Mobile:+86 13255390189Ultrasonic welding machine GN800 for lithium ion battery GN-800 is a ultrasonic metal welder designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories.This welder is suit for max.of 20 layers electrodes welding.(If you need more layers welder,pls contact us) | Input Voltage | 220V AC 50Hz |
| Max. Power Consumption | 0-800W |
| Welding Area | 4mm(L) x 4mm(W) |
| Welding Head | Two welding heads and two welding bases are included
Welding Craft 1 welding pure Al 0.1mm+pure Al 0.012-0.018mm within 20 layers
Welding Craft 2 welding pure Ni 0.1mm+pure Cu 0.012-0.018mm within 20 layers |
| Ultrasonic Frequency | 30 - 40 kHz Adjustable frequency |
| Pneumatic Control | Air pressure at 0.5-0.8MPa (Air Compressor is not included) |
| Product Dimensions | Controller: 380mm(L) x 510mm(W) x 200mm(H)
Welder: 510mm(L) x220mm(W) x 290mm(H) |
| Warranty | One Year limited warranty with lifetime support |
| Net Weight | 61 kg (135 lbs) |
We could supply one stop solution ( turn key project) for lithium ion battery production line.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode batterymaterials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
PROJECT EXPERIENCES:
BOLIVIA TURN KEY PROJECT SUCCESSFULLY COMPLETE
Now we have successfully completed the lithium battery production line project (including mobile phone battery and E-bike battery production line project, and lab. line ) with Bolivia government. All of the materials, equipments and technology that used in the project is provided by our company.
The produced battery performance is very good, highly praised by Bolivia president.
And president personally attend the celebration dinner and take photos with our manager as a commemorate. Next project we will cooperate with Indonesia government.
TKS FOR YOUR TIME,WELCOME TO INQUIRY.
Gelon (Int) LIB Group Ltd. was set up as a manufacturer and exporter in 2007, dealing with lithium battery materials, equipments, technology, etc. Now we have Gelon New Battery Materials Co., Ltd., E-Battery Lithium Battery Co., Ltd., Linyi Dake Trading Co., Ltd., with total manufacturing facilities of around 100, 000 square meters and more than 500 staff. Owning a group of experienced engineers and staff, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.
Gelon New Battery Materials Co., Ltd. Focus on R&D, manufacturing and sales of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and we also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LiFePO4), Lithium Manganese Dioxide(LiMn2O4), Lithium Cobalt Oxide(LiCoO2), Lithium Nickel Manganese Cobalt Oxide(LiNiMnCoO2), Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) and separator and so on for new power lithium ion batteries.
Meanwhile, we have our own lithium ion battery factory- E-Battery Co., Ltd., mainly produces lithium ion battery for camera, mobile, EV application. Based on the factory, we can offer all services (Raw Materials, Equipments, Technology, etc. ) for full set of lithium battery producing line to help clients to establish a factory of lithium battery.
Our group also has a subsidiary exporting company -- Linyi Dake Trade Co., Ltd, mainly deals in all exporting business of group. We have a professional and experienced exporting team to supply perfect services for you. Through trading company, all of our products and services such as materials, equipments, technology, etc. Will be offered to clients from all over the world.
We are confidence on our quality and service. And we ensure that we will offer you the best services based on our specialty and empressement. Our aim is to be the comprehensive company dealing with one-stop services of lithium battery in the world.
Welcome batteries manufacturers all over world visit our company, and your inquiry will be appreciated.
