Underground Armored Cable Fiber Optics Cable

Prod Model:	GYTY53 Armored Fiber Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	GYTA53 Armored Fiber Cable
Fiber Count:	2-288 Core
Brand Name Of Fiber:	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material:	PBT
Loose Tube Filling Material:	Jerry
Color Of Loose Tube:	Blue, Orange,Green, Brown,Grey, White,Red etc
Central Strength Member:	Steel Wire or FRP
Double Armour Material:	Corrugated Steel and Aluminium Tape
Core Moisture Protection Methodology:	Water Blocking Tape or Filling Compound
Installation Style:	Direct-Burial and Duct
Application:	Armored Fiber Cable
Certification:	Reach,Tlc,etc
Type:	Single-Mode or Multi-Mode Fiber
Connection Structure:	Armored Fiber Cable
Allowed Lateral Pressure:	Short Term 3000n; Long Term 1000n
Allowed Tensile Strength:	Short Term 3000n; Long Term 1000n
Core:	2-288 Core
Brand:	Tw-Scie or OEM
Sheath Material:	MDPE / HDPE / Lszh PE

Product Description

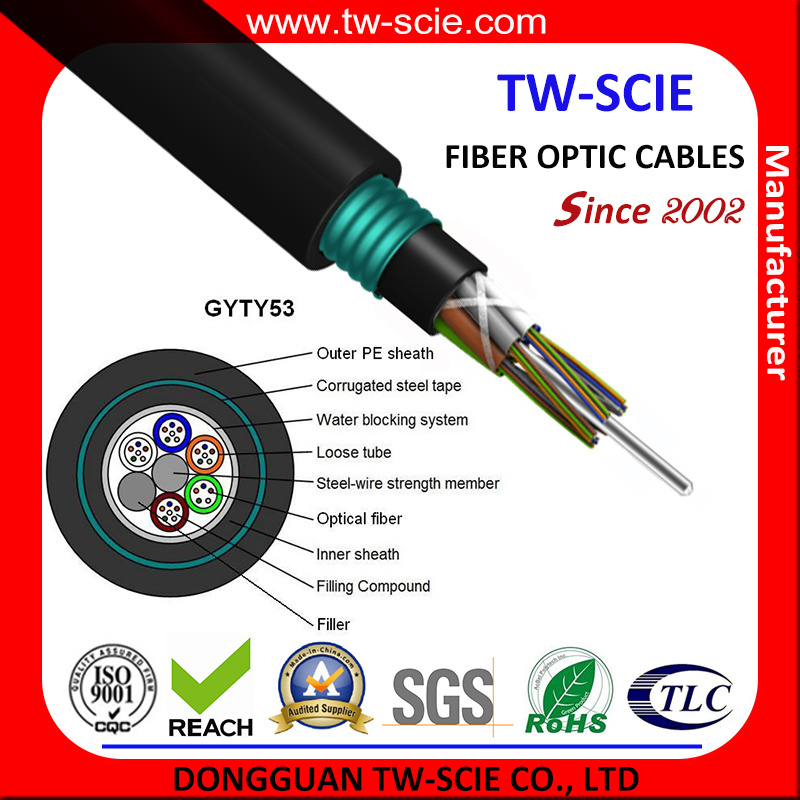

GYTA53 Underground Armored Cable Fiber Optics Cable Details:

Product Description
This GYTY53 Armored Fiber Cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.


GYTY53 Armored Fiber Cable Features & Application:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible  bending radius
Long haul / backbone application

GYTY53 Armored Fiber Cable Optical Fiber Technical data:

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
			Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620

GYTY53 Armored Fiber Cable Packaging Detail:
GYTY53 Armored Fiber Cable package are  wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

As professioanl manufacturer on optical fiber cables, we can not only offer you optical fiber cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.

Contact with me for this GYTA53 Underground Armored Cable Fiber Optics Cable.
