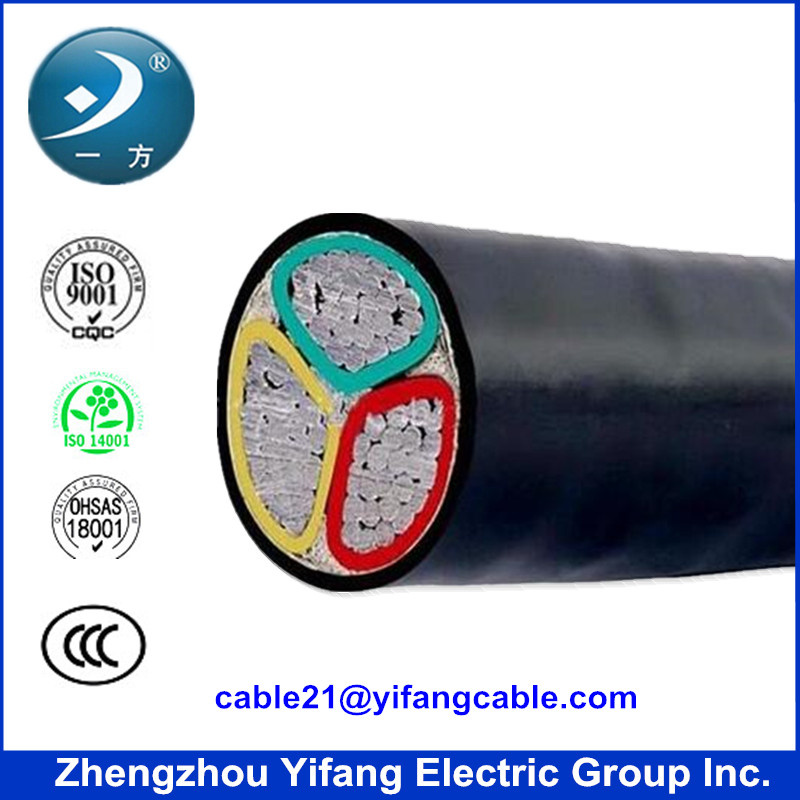

Underground Armoured Electrical Power Cable for 0.6/1kv

Name: Underground Armoured Electrical Power Cable for 0.6/1kv
Brand: all-electronics-online.com
SKU: 710859282
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	US $ 0.88meters
Min Order:	500meters
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV32
Sheath Color:	Black
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Brand:	Yifang

Product Description

xlpe 11kv 25mm2 4c aluminium power cable
The XLPE insulated PVC or PE sheath power cable
The power cable as one of our main products, the specification and appliance of the power cable are listing as follows:

1. The standards
The power cable is mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS, DIN, ASTM, VDE, NFC standards, and so on.

2. The construction of the power cable for different voltage grade
2.1 low voltage cable power cable
Low voltage (0.6/1 kv)
Single core or multi-core
Copper or aluminium conductor
Pvc inusulation
Steel tape armored or galvanized steel wire armored or unarmored
Pvc outer sheath
Power cable.

2.2 medium voltage cable power cable
Voltage grade is up to 35kv,
Cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).

Nominal Cross Section mm 2	Main cores	2.5	4	6	10	16	25	35	50
Nominal Cross Section mm 2	Neutral cores	1.5	2.5	4	6	10	16	16	25
Nominal Cross Section mm 2	Main cores	70	95	120	150	185	240	300	400
Nominal Cross Section mm 2	Neutral cores	35	50	70	70	95	120	150	185

Nominal Cross Section mm 2	1.5	2.5	4	6	10	16	25
Cu core Ohm/km	12.1	7.41	4.61	3.08	1.83	1.15	0.727
Al core Ohm/km	18.1	12.1	7.41	4.61	3.08	1.91	1.2
Nominal Cross Section mm 2	35	50	70	95	120	150	185
Cu core Ohm/km	0.524	0.387	0.268	0.193	0.153	0.124	0.0991
Al core Ohm/km	0.868	0.641	0.443	0.32	0.253	0.206	0.164
Nominal Cross Section mm 2	240	300	400	500	630	800	1000
Cu core Ohm/km	0.0754	0.06	0.047	0.0366	0.0283	0.0221	0.0176
Al core Ohm/km	0.125	0.1	0.0778	0.0605	0.0469	0.0367	0.0291

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
