Underground Low Voltage 0.6/1kv Copper Conductor XLPE Electric Power Cable

Name: Underground Low Voltage 0.6/1kv Copper Conductor XLPE Electric Power Cable
Brand: all-electronics-online.com
SKU: 835565665
Availability: InStock
Rating: 4.8 (115 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.6/1KV copper power cable
Product Name:	0.6/1kv Copper Power Cable
Rated Voltage:	0.6/1 Kv
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

Operating Characteristics
Rated voltage: 0.6/1(1.2)kV

Max. permissible continuous operating temperature of conductor: 70oC

Max. temperature of conductor during short-circuit (5s max. duration) shall not exceed:

Nominal cross section of conductor ≤300mm2: 160 oC;

Nominal cross section of conductor >300mm2: 140 oC

The ambient temperature under installation should not be lower than: 0 oC

The bending radius of cable is recommended as following:

For single core cable: not less than 20 times of the diameter of cable

For multi-core cable: not less than 15 times of the diameter of cable

Application

The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or in conduit, unable to bear external mechanical force.

Manufacturing Standards

GB/T 12706-2008, IEC 60502-1

Description

Type	Description	No. of cores	Nominal cross section of conductor
VV	Copper conductor/PVC insulation/PVC outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
VY	Copper conductor/PVC insulation/PE outer sheath Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
ZA-VV ZB-VV ZC-VV	Copper conductor/PVC insulation flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~630mm2
NH-VV	Copper conductor/PVC insulation fire-resistant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2

Specifications and Names

Type		Designation
Copper conductor	Aluminium conductor	Designation
YJV	YJLV	XLPE insulated and PVC sheathed power cable
YJV22	YJLV22	XLPE insulated, steel tape armored and PVC sheathed power cable
YJV23	YJV23	XLPE insulated, steel tape armored and PE sheathed power cable.
YJV32	YJLV32	XLPE insulated, steel wire armored and PVC sheathed power cable.
YJV33	YJV33	XLPE insulated, steel wire armored and PE sheathed power cable.

Production Range of Cable

TYPE	Number of cores	Rated Voltage (U0/U)kV
		6/6	6/10 8.7/10	8.7/15 12/20	18/20 21/35 26/35
		Nominal cross-section area of conductor mm²
YJV YJV32(42)	1	25~630	25~630	25~400	50~500
YJLV YJLV32(42)		35~630	35~630	35~300	50~630
YJV22		25~500	25~500	35~500	-
YJLV22		35~500	35~500	35~500	-
YJV YJV22	3	25~300	25~300	35~300	50~300
YJLV YJLV22		35~300	35~300	35~300	50~300
YJV32 YJLV32		25~300	35~300	35~300	50~300
YJV42 YJLV42		35~185	35~185	35~150	50~300

*Note:The single-core armoured cables are used for d.c.system only, as for a.c.system, non-magnetic aromour material should be used or a magnetic isolation should be applied

We also can manufacture many other specifications, if you have interest, welcome your enquiry! Everything we do is trying to make your business more successful.

Luxing Factory : our production base

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Certificates

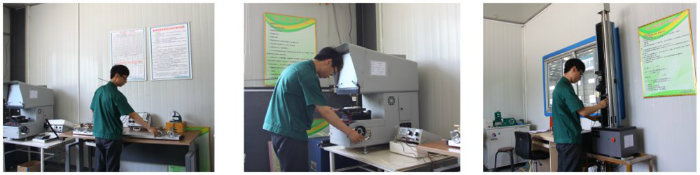

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
