| Prod Model: |
2CH Transmitter and Receiver -A |
| Application: |
Industrial Machinery |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Transmission Distance: |
>100m |
| Voltage: |
12V |
| Material: |
Metal |
Product Description

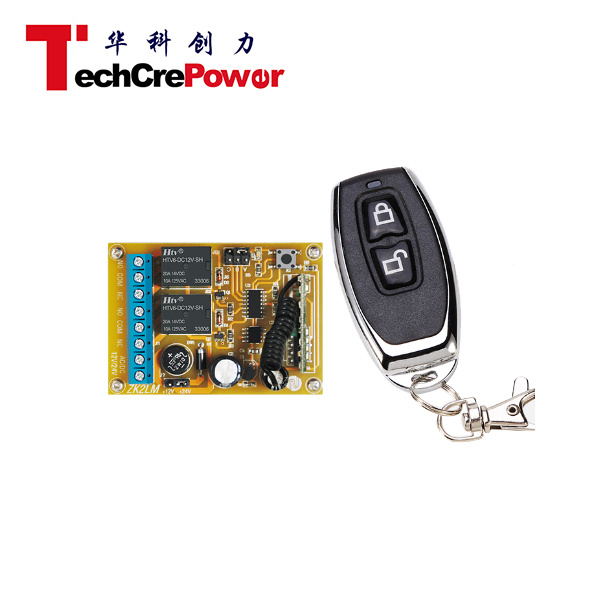

Universal 2 keys metal case wireless remote control 100m learning code 2 relays 12V/24V wireless receiver
Application:
Mainly used in electric doors, windows, lifting equipment, gateways, industrial control, security and protection field(wired to wireless switching system) ,it can support remote control , which can composite a set of wireless intelligent remote control components . Commonly used to control all kind of wireless products in family, office, hotel, hospital, shopping malls, warehouse etc.
Specifications About ZK2LM:
| Product Parameter | Parameter Description |
| Operating voltage | DC12V/24V |
| Operating frequency | 315/ 433.92 MHz |
| Frequency deviation | ± 0.2MHz |
| Operating temperature | -40'C ~ +80'C |
| Receiving sensitivity | 108dBm |
| Modulation | AM |
| Signal output method | L4:Latch-signal,M4:Momentary-signal,T4:Toggle-signal |
| Decoder chip | fixed code (PT2272/ PT2262/PT2264/SC2262 ),learning code(EV1527),Rolling code(HCS301) |
| Size (L*W*H) | 68*48*16.8mm |
| Transmitting Distance | 100m/200m/1km/3km |
Specifications About ZY16-E:
| Product Parameter | Parameter Description |
| Operating voltage | 6V |
| Operating current | 12mA |
| Transmitting power | >10mW |
| Modulation mode | ASK |
| Quiescent Current | 0uA |
| Operating frequency | 315MHZ,433.92 MHZ |
| Transmitting distance | 60-100m(open space , receiving sensitivity : -108dBm) |
| Encoding type | fixed code, learning code, rolling code |
| Ecoding Chip | EV1527 |
| Size | 55mm*30mm*13mm |
Brief Introduction:
This wireless receiving controller, high confidentiality, Large memory, stable performance, low power consumption, convenient using , without using traditional jumpers or switches coding, just make the receiving controller receive and save the signals from wireless remote control, then they can be realized to use together . If the learned control is lost in using process, just clear the information stored in the controller, the loss of remote control cannot control the receiving controller , must learn once again before using. There are four state of output : (non-locking, interlocking, self-locking), choosing different working conditions, decided by learning different remote keys.

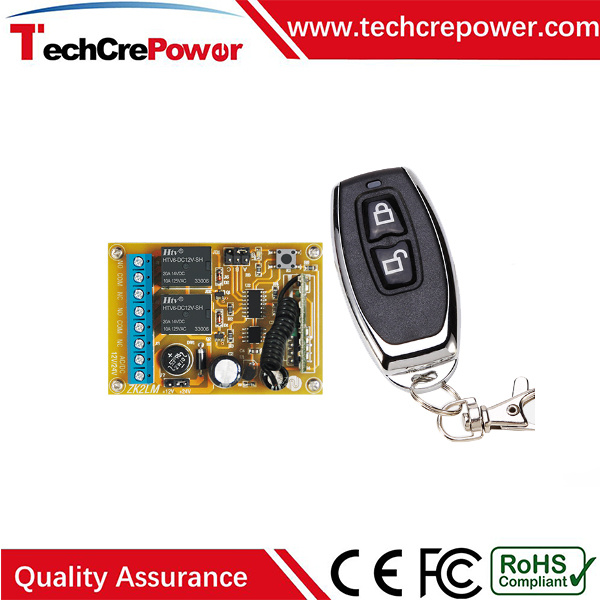

Product Photo:
Product Certification:
Our Factory:
Our Advantage:
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products. Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
How to Pay
By T/T, paypal, western union, Moneygram, L/C.
How to Deliver
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
