| Prod Model: |
DK-CL105 |
| Shell Material: |
Flame Retardant PC Alloy |
| Socket Standard: |
Universal Socket |
| Protection Level: |
IP20 |
| Rated Power: |
2200W |
| Flame Retardant Property: |
UL94V-0 |
| Nominal Discharge Current In(8/20): |
10ka |
| Maximum Discharge Current(8/20): |
20ka |
| Limiting Voltage(up): |
Less Than 600V |
| Line Protection: |
Core-Shield; Shield-Ground |
| Respond Time: |
Less Than 25ns |
| Grounding: |
Standard Grounding |
| Type: |
With Switch |
| Application: |
Portable |
| Hole-Digit: |
4 Digits |
| Cable Length: |
2 Meter |
| IP Rating: |
IP20 |
| Color: |
Black |
| Certification: |
RoHS |
| Customized: |
Customized |
| Condition: |
New |
Product Description

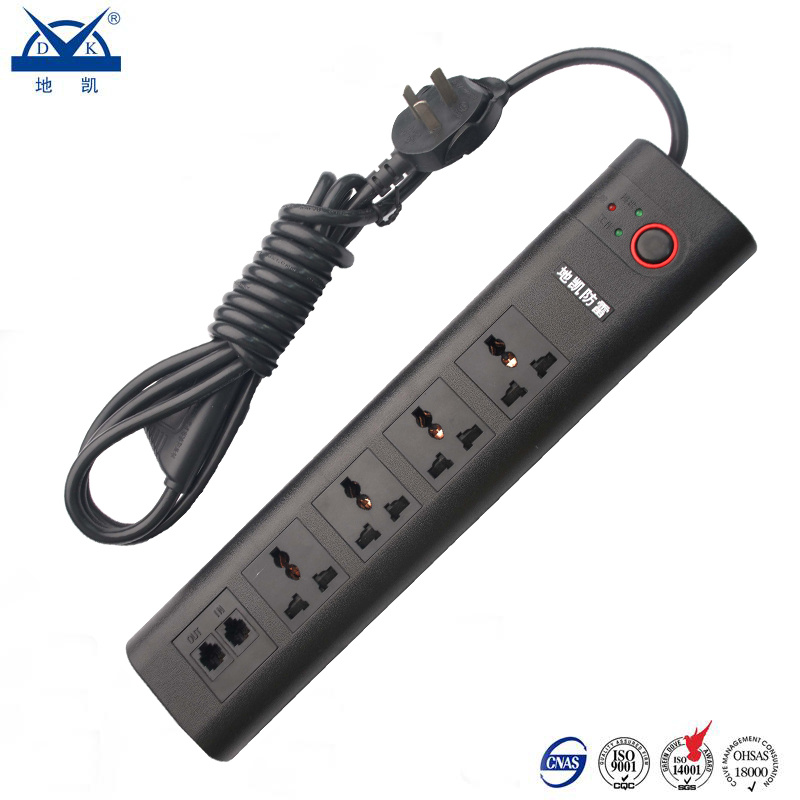

Black universal 4 ways pc 10A power strip extension socket
Brief Introduction
Plug Seat Power SPD is designed according to the national standard, assembled Working Indicator, Power Switch, Malfunction Indicator
This product can realize dual protection of lightning. Low residual voltage, simple installation, it is suitable for fine lightning protection of terminal equipments.
Technical Parameter
| Item.No | DK-CL105 |
| Protected Object | Power Port |
| Max Continuous Working Voltage Uc | 320V AC |
| Nominal Discharging Current In | 10kA |
| Max. discharging Current Imax | 20kA |
| Voltage Protection Level Up | Less than 1.8KV |
| Respond Time | Less than 25ns |
| Rated Power | 2200W |
| Working Temperature | -40ºC ~+ 85ºC |
| Shell Material | High Performance Flame Retardant PC Alloy |
| Flame Retardant Property | UL94 V-0 |
| Protection Level | IP20 |
| Dimension(mm) | 330*75*40mm |
| Connector Wire Length | 2m |
| Socket Standard | Universal Socket |
| Power and Phone Surge Protection |
| Type of Input Port | RJ11 |
| Type of Output Port | RJ11 |
| Max. Continuous Running Voltage | 300V |
| Norminal Discharging Current (8/20) | 1kA |
| Maximum discharging currents (8/20) | 2kA |
| Limiting Voltage(Up) | Less than 600V |
| Power and TV surge protection |
| Type of Input Port | TV (Q9 Video) |
| Type of Output Port | TV (Q9Video) |
| Line Protection | Core-shield; Shield-ground |
| Nominal Discharging Current In (Core-Shield) | 10kA(8/20) |
| Max. Discharging Current Imax (Shield-Ground) | 20kA(8/20) |
| Maximum Continious Working Voltage (V) | 72V |
| Voltage Protection Level | Less than 600V |
Application Scope
Machinery House: Computer Room, Communication Room, Monitoring Room, Control Room and other Low Voltage Power Equipments' Input Terminal.
Office: Office Computer, Fax Machine, Printer, Projector etc.
Home: Television, Freezer, Computer, Phone, Modem etc.
Warm Prompt
OEM & ODM are acceptable.
Please kindly send us your special requirements of your Extension Socket. We can produce the Extension Socket of American Type, UK Type, European Type, South Africa, and so on.
About Dikai Company
-More than 26 years specialized.
-25,000 square metres industrial park.
-More than 100,000 cases of lightning protection project services.
-Five series lightning protection products, more than 160 items.
-ISO ,OHSAS & CE certificated.
-CNAS National Laboratory.
Established in June, 1989, Guangxi Dikai Sci&Tech Co., Ltd. Arouses its all efforts and strives for progress for near 30 years to be the earliest founding and most well-known professional lightning protection company with the most complete lightning protection products and highest lightning protection qualification.
Dikai Company is consist of Guangxi Dikai Sci&Tech Co., Ltd. And Guangxi Dikai Dikai Lightning Protection Engineering Co., Ltd. Guangxi Dikai Sci&Tech Co., Ltd. Concentrates on new technology of lightning protection, research and development on new products, production and service. Guangxi Dikai Dikai Lightning Protection Engineering Co., Ltd. Concentrates on design of lightning protection engineering, construction, inspection and maintenance, technical consulting service. It has provided more than 10 millions cases of lightning protection project design, product installation, inspection and maintenance, technical consulting service to electric power, transportation, communication, security, civil aviation, finance, petroleum and petrochemical, education, radio and television, military, industrial and mineral enterprises, etc. Dikai Company has started business with USA, Malaysia, Indonesia, Philippines, Korea, India, Sri Lanka, Rwanda, Nigeria, Cambodia, Kazakhstan, Bulgaria, and so on.
Dikai Company covers five product series: Direct lightning protection products, power line surge protection products, signal line surge protection products, combined series surge protection products, and grounding resistance reduction products, with more than 100 varieties of products. It is the one top purchasing and service provider of surge & lightning protection products.
