Unshielded Battery Car Inner System Wire
| Price: |
US $ 0.1-2/Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Money Gram |
| Prod Model: |
EV Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Ambient Temperature: |
-40c-125c |
| Rated Voltage: |
1500V |
| Conductor Materi: |
Stranded Flexible Annealed Copper |
| Insulation: |
125c Environmental TPE |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Insulation Material: |
TPE |
| Brand: |
Jiukai or OEM |
Product Description

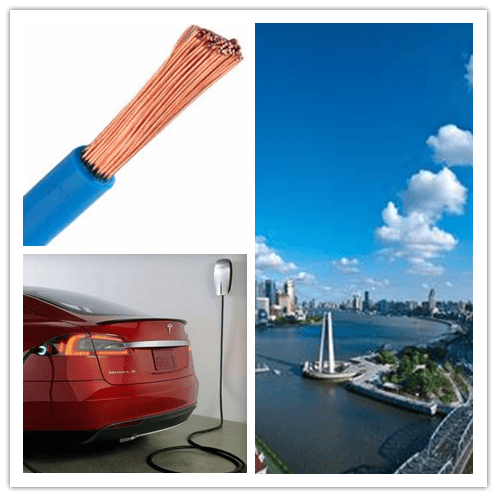

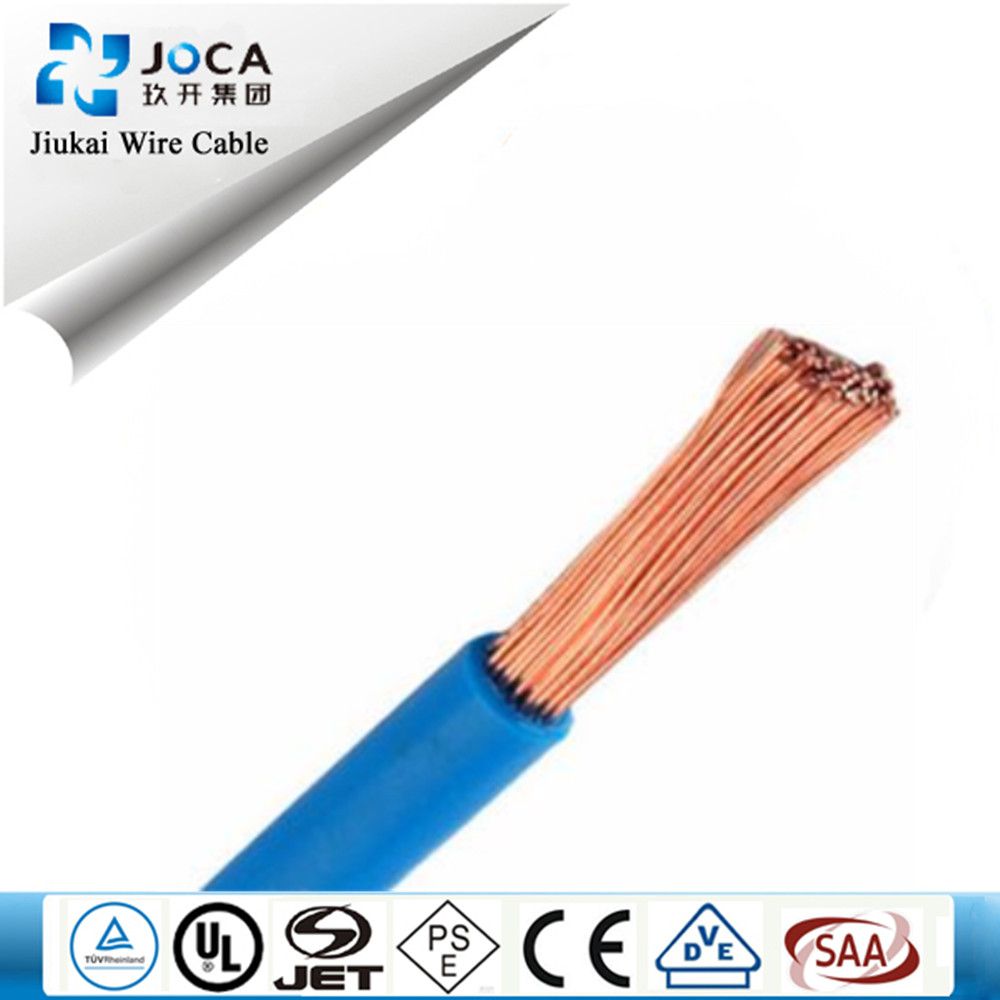

Unshielded Battery Car Inner System Wire
Product Description & Parameters
Used high voltage system of electric vehicle inner battery.
1.Bendable, bending radius 5×OD (Cable nominal diameter), easy installation and usage
2. High working temperature (GB/T25085/ISO 6722 Level C:125C)
3. Good oil-resistant property (Resistant to gasoline, diesel and engine oil.)4. Superfine flexibility on low temperature (Low temperature bending test: GB/T25085/ISO6722)EV CABLE 1500V
Model |
Size (N*mm2) |
Conductor Structure (N*mm) | Insulation Thickness (mm) |
REF. OD
(mm) | Max conductor resistance per length m/m at 20C
plain copper | Max conductor resistance per length m/m at 20C
sn-plated copper
|
| EV | 0.5 | 28/0.15 | 0.6 | 2.3 | 37.1 | 38.2 |
| EV | 0.75 | 42/0.15 | 0.6 | 2.5 | 24.7 | 25.4 |
| EV | 1.0 | 56/0.15 | 0.6 | 2.7 | 18.5 | 19.1 |
| EV | 1.5 | 84/0.15 | 0.6 | 3.0 | 12.7 | 13.0 |
| EV | 2.5 | 140/0.15 | 0.6 | 3.6 | 7.6 | 7.82 |
| EV | 4.0 | 224/0.15 | 0.8 | 4.4 | 4.71 | 4.85 |
| EV | 6.0 | 189/0.20 | 0.8 | 5.0 | 3.14 | 3.23 |
| EV | 10 | 313/0.20 | 1.0 | 6.5 | 1.82 | 1.85 |
| EV | 16 | 494/0.20 | 1.0 | 8.3 | 1.16 | 1.18 |
| EV | 25 | 779/0.20 | 1.3 | 10.4 | 0.743 | 0.757 |
| EV | 35 | 1110/0.20 | 1.3 | 11.6 | 0.527 | 0.538 |
| EV | 50 | 1554/0.20 | 1.5 | 13.5 | 0.368 | 0.375 |
| EV | 70 | 962/0.30 | 1.5 | 15.5 | 0.259 | 0.264 |
| EV | 95 | 1332/0.30 | 1.6 | 18.0 | 0.196 | 0.200 |
| EV | 120 | 1665/0.30 | 1.6 | 19.7 | 0.153 | 0.156 |
Note: The detailed comply with the related spec sheetPackaging & Shipping
| Packaging Details: | Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
|---|
| Delivery Detail: | 7-15 days |
|---|
Certification
Related Product
1: Solar Cable
2: UL Electrical Insulation and hook Up wire
3: Elevator Cable
4: Coaxial CableWhy Choose Us
We are a professional wire and cable manufacturer- Quality control: Our defective products rate is 0.01%
- Economically priced, exquisitely made
- Adequate supply capacity, punctual delivery time
- Best of sales service are provided

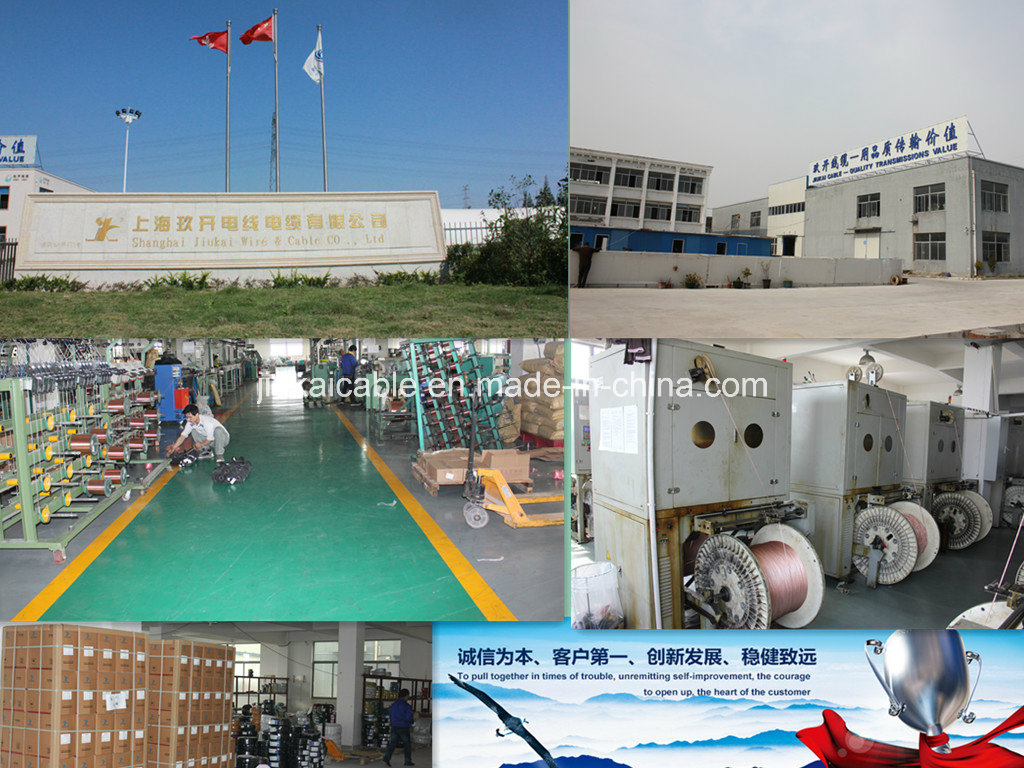

Company Information
