up to 288 Core Self-Supported Fiber Cable GYTC8S

Prod Model:	GYTC8S fiber optic cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Messenger Material:	Steel Wire
Application:	Glass Fiber
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Fiber Optic Cable
Sheath Material:	LSZH, HDPE, MDPE

Product Description

Up to 288 Core Self-Supported Fiber Cable Gytc8s

Dong Guan Tw-Scie Co., Ltd. Is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
Central tube fibure 8 aerial optical fiber cable GYXTC8S

Application:
The figure 8 cables are auitable for installation in aerial environment for long haul communication.

Features:
1. Up to 24 fibers The loose tube OS centrally situated with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath prociding providing property crush resistance and gun shot resistance features.

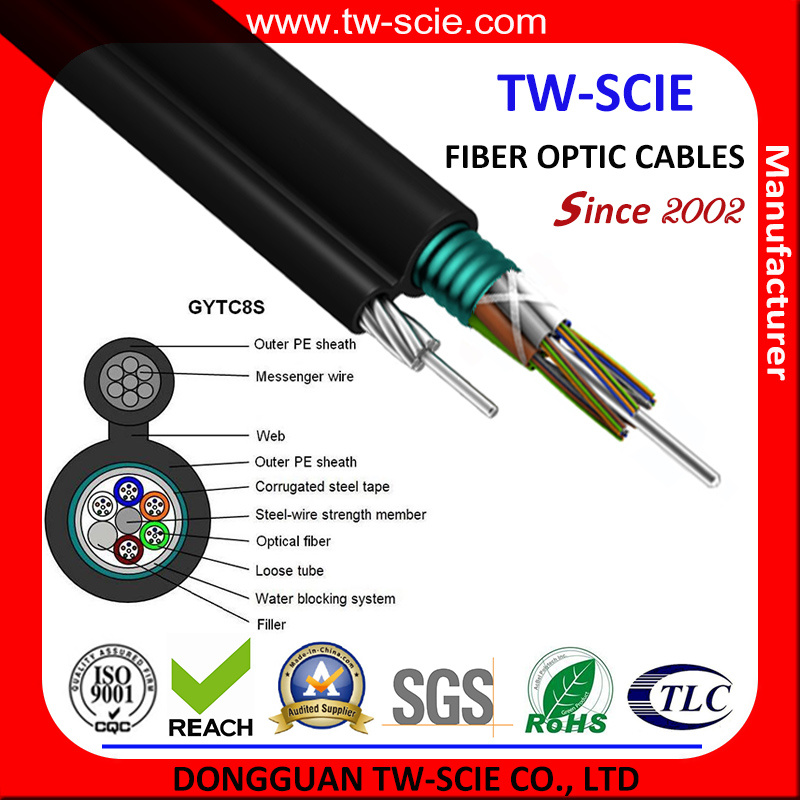

3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.


Fiber count	Cable dia.(mm)	Cable net weight(Kg/km)	Min. bending radius(mm)		Min. tensile strength(N)		Min. crush pressure(N/100mm)
			Static state	Dynamic state	Short term	Long term	Short term	Long term
12	8.3	135	110	220	3000	1000	1000	300
14~24	10	150	120	240	3000	1000	1000	300
Suspension line			Diameter: 5.1 mm, Weight: 86 kg/km
Web			Dimension :3.5×2.6 mm, Weight: 9 kg/km
