UPS for Lift Control
| Price: |
US $ 2-5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Lift UPS series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Install: |
Wall Mount |
| Waveform: |
Pure Sine Wave |
| Usage: |
Lift Usage |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overcurrent |
| Brand: |
Jetpower |
Product Description
Lift UPS 300W for lift control system.Main Features: 1) Wall-mounted
2)The depth is only 100mm (800H*420W*95D)
3)The max battery capacity can be 12V/80AH(12v20AH 4pcs in parallel)
4)The ups max output power can be 300W.
5) DC input voltage: 12Vdc
6) Input voltage: 220Vac +/-25%
7) Output voltage: 220Vac

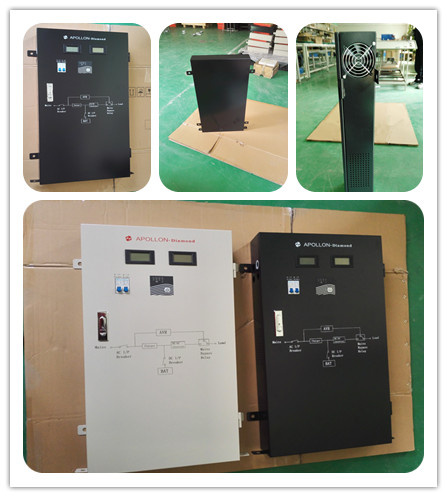

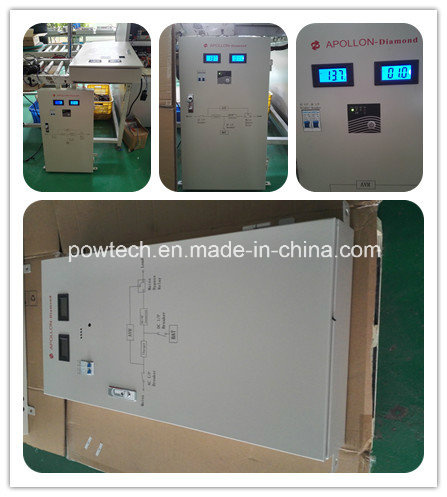

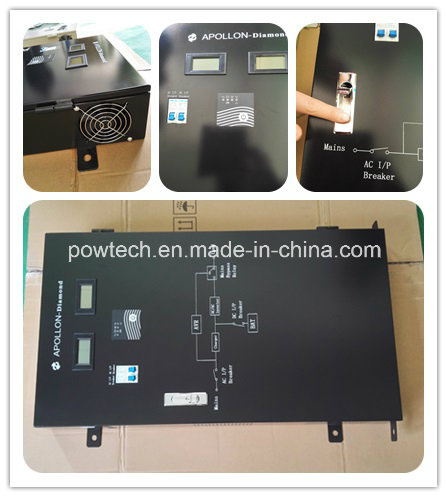

Inside pictures:
Technical data sheet:
| Model Name | Lift-150 | Lift-300 |
| Capacity | 150W | 300W |
| Outlook | Wall-mount | Wall-mount |
| Design Type | Line Interactive | Line Interactive |
| Waveform | Sine wave | Sine wave |
| AVR Function | Boost, Buck | Boost, Buck |
| Input | I/P Nominal Voltage | 115 or 230Vac | 115 or 230Vac |
| I/P Voltage Range | 72~144V/145~275V | 72~144V/145~275V |
| I/P Voltage Range (Duble AVR) | No | No |
| I/P Frequency Range | 60Hz-->115V/50Hz-->230V±6Hz | 60Hz-->115V/50Hz-->230V±6Hz |
| I/P Power Line Surge (115V/230V) | 1482/476 Joules | 1482/476 Joules |
| I/P Socket Type | Power Cord+C.B->115V Inlet Socket+C.B->230V | Power Cord+C.B->115V Inlet Socket+C.B->230V |
| Output | O/P Nominal Voltage | 115/230Vac | 115/230Vac |
| O/P Voltage Range (AC Mode) | 100~127V/200~253V (+10~-13%) | 100~127V/200~253V (+10~-13%) |
| O/P Voltage Range (Double AVR) | No | No |
| O/P Voltage Range (Batt. Mode) | 115/230v±6% | 115/230v±6% |
| O/P Frequency Stability | 50/60Hz +/- 0.5% | 50/60Hz +/- 0.5% |
| O/P Manual Configature Set | No | No |
| O/P Socket Q'ty (Backup+Surge) | (NEMA/IEC)*2 | (NEMA/IEC)*2 |
| Transfer Time | < 4ms (typical) | < 4ms (typical) |
| Overload | Overload Protection (AC Mode) | 100%~120% 1min S/D | 100%~120% 1min S/D |
| Overload Protection (Batt Mode) | 100%~ 120%->25Sec S/D, >120%->immed UPS Off. | 100%~ 120%->25Sec S/D, >120%->immed UPS Off. |
| Battery | Backup Time-Full Load | Depend on the battery capacity | Depend on the battery capacity |
| Back-up Time-Half Load | Depend on the battery capacity | Depend on the battery capacity |
| Battery Volatge & Quantity | 12VDC | 12VDC |
| Battery Cold Start (DC Start) | Yes | Yes |
| Battery Replacement | Easy Replacement | Easy Replacement |
| External Battery | Yes | Yes |
| Charger Current (STD) Internal | N/C | N/C |
| Charger Current (Large) External | 6~10A Max. | 6~10A Max. |
| Charger Over Protection | Yes | Yes |
| Charging When UPS off | Yes | Yes |
| Microprocessor Control | Yes | Yes |
| Communication | Intelligent Interface | RS232 | RS232 |
| Monitoring Software | UPSilon2000 | UPSilon2000 |
| SNMP Card(option) | Inbuilt (DP520) | Inbuilt (DP520) |
| Safety & EMC Approved | CE | CE |
| Indicators LED Display | 4 LEDs on Front Panel | 4 LEDs on Front Panel |
| LED Status | Line ,Batt Mode/charger,Overload/Fault | Line ,Batt Mode/charger,Overload/Fault |
| Environment | Temperature | 0-40 degree C | 0-40 degree C |
| Humidity | 3000 Meters max Elevation 10-95% | 3000 Meters max Elevation 10-95% |
| Audible Noise | Less than 45dBA (at 1M) | Less than 45dBA (at 1M) |
| Physical | Dimension(DxWxH) | 800H*420W*95D | 800H*420W*95D |

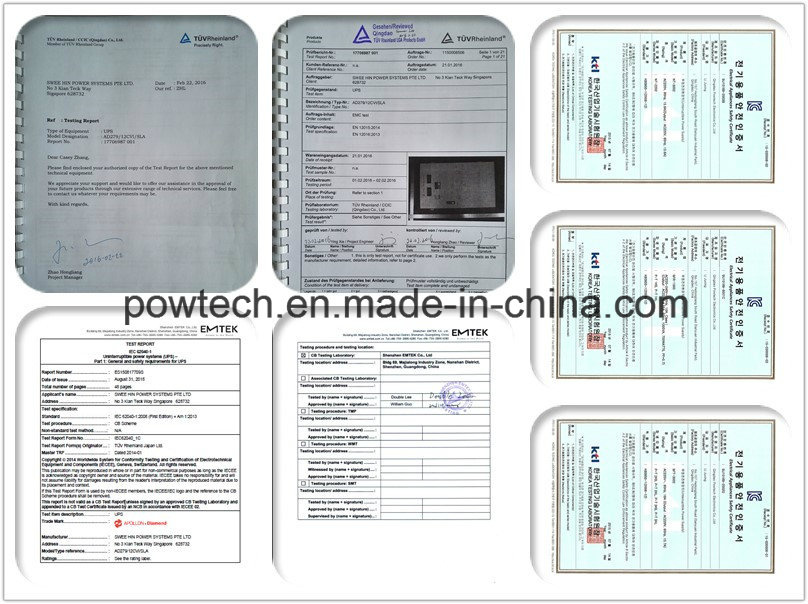

TUV EMC/ Korea Certificate:
