UPS Power Supplies, With Battery Back-Up, for Telecommunication Networks
| Price: |
US $ 20-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,D/P,Western Union,Money Gram |
| Prod Model: |
EX1K-EX3K/EX1KL-EX3KL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| UPS Type: |
True Online UPS |
| Technology: |
CPU Control, Double Conversion, IGBT |
| Wave: |
Pure Sine Wave |
| Remote Control: |
Snmp Upsilon 2000 |
| Product Name: |
UPS Power Supplies, with Battery Back-up, for Tele |
| Capacity: |
1kVA 2kVA 3kVA |
| Model: |
Ek1k/Ek1kl/Ex2k/Ex2kl/Ex3k/Ex3kl |
| Input Voltage: |
110/115/120VAC or 220/230/240VAC |
| Backup Time: |
Depend on The Battery Pack |
| Phase&Wave Form: |
Single Phase & Pure Sine Wave |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
Uninterruptible Power |
| Brand: |
Zlpower |
Product Description
UPS Power supplies, with battery back-up, for telecommunication networks.
UPS-uninterrupted power supply, Digital display, IGBT online UPS, EX1K-EX3K, SAI, double conversion online UPS (EX series)
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
UPS APPLICATION:Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...
UPS KEY FEATURES:High frequency tower UPS 1KVA-3KVA, with cold start and self test when start function, larger LCD display
True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function

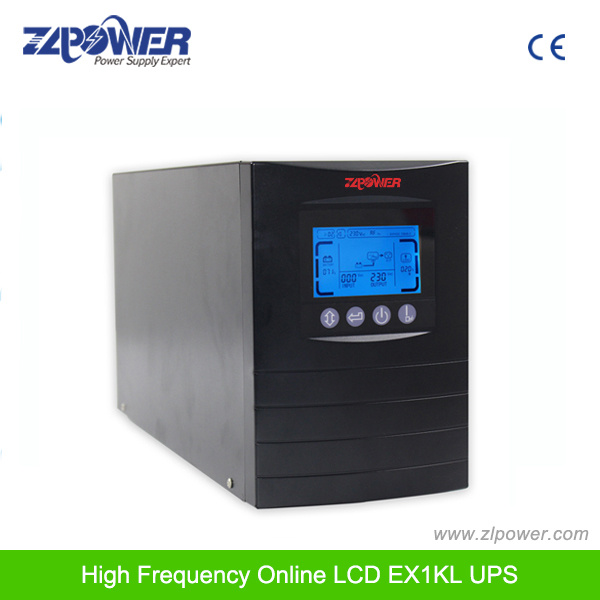

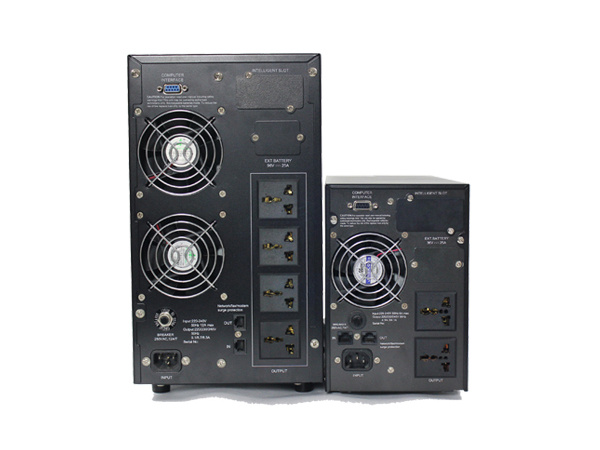

PHOTOS:
SPECIFICATION:| UPS power supplies Model | EX1K | EX1KL | EX2K | EX2KL | EX3K | EX3KL |
| Capacity | 1000VA/700W | 2000VA/1400W | 3000VA/2100W |
| Input | Voltage | (115~300) VAC |
| Frequency | 46~54Hz/56~64Hz (Adjustable via LCD panel) |
| Output | Voltage | 220/230/240 (1± 1%) VAC (Adjustable via LCD panel) |
| Frequency | 50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode(AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%) |
| Output Wave Form | Sine Wave |
| Back-up Time | Full Load | ≥ 5′ | Depends on the capacity of the external battery bank | ≥ 9′ | Depends on the capacity of the external battery bank | ≥ 5′ | Depends on the capacity of the external battery bank |
| Half Load | ≥ 14′ | ≥ 21′ | ≥ 15′ |
| Battery Nominal DC Voltage | 36VDC | 96VDC |
| Transfer Time | 0ms |
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms |
| Communications | RS-232+Intelligent Slot |
| Environment | Temperature | 0C~40C |
| Humidity | 15%~90% |
| Dimensions (W*D*H)mm | 145*400*220 | 192*460*340 |
| Net Weight (Kg) | 14 | 7 | 34 | 13.5 | 34.5 | 14 |
