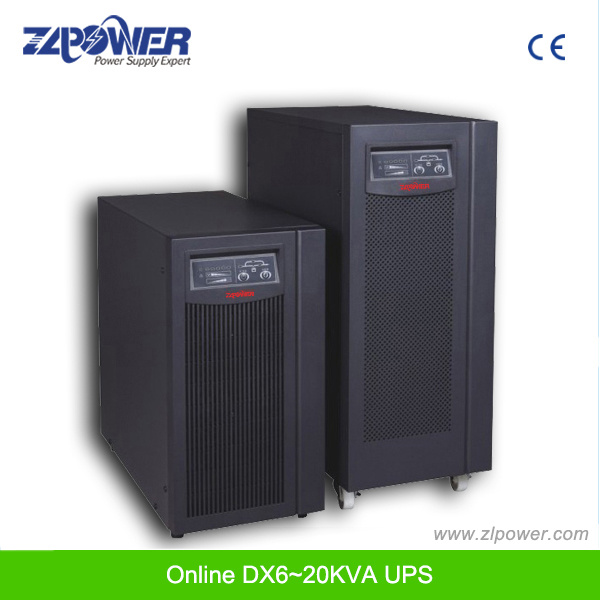

UPS Power Systems 6KVA-10KVA

Name: UPS Power Systems 6KVA-10KVA
Brand: all-electronics-online.com
SKU: 673799535
Availability: InStock
Rating: 4.8 (150 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	UPS
Capacity:	6kVA-10kVA
AC Output Voltage:	220VAC/230VAC/240VAC
Weight:	35kgs
Package:	Standard Package
Phase:	Single Phase
Type:	On-line
Protection:	Overcurrent
Brand:	Zlpower

Product Description

UPS Power Systems 6KVA-10KVA
Product Features

IP/OP: 220/230/240VAC 50/60Hz
IP/OP: 380/220VAC 50/60Hz

KEY FEATURES
True online double conversion technology
Wide input voltage range
Zero transfer time
Protection against all types of power problems
No add-on CNTL unit required for parallel connection
Low initial investment and flexible for future expansion
Highest reliability and maximum performance for power sharing and redundancy
Equipped with maintenance bypass switch
Smart RS232 and intelligent slot interface
Sealed lead acid, maintenance free battery

APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc

Product performance

TECHNICAL SPECIFICATION
Model T6K T6KL T10K T10KL 3T10KL 3T15KL 3T20KL
Capacity 6KVA/4200W 10KVA/7000W 15KVA/10500W 20KVA/14000W
Input Nominal Voltage 220V 380V
Voltage Range 176~276VAC 304~478VAC
Frequency 46~54Hz/56~64Hz
Output Voltage 220/230/240(1± 1%)VAC
Frequency 50/60Hz(adjustable)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz): Battery Mode: 50Hz(1± 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)
Current Crest Ratio 3: 1
Output Wave Form Sine Wave
Back-up Time Full Load ≥ 7' Depends on the capacity of the external batteries bank ≥ 5' Depends on the capacity of the external batteries bank
Half Load ≥ 20' ≥ 13'
Battery Nominal Voltage 240VDC
Transfer Time 0ms
Overload Capacity 105%~130% 10min, over 150%1min
Communication RS-232+Intelligent Slot
Operating Environment Temperature 0C~40C
Humidity 15%~90%
Dimensions(W*D*H)mm 260*570*717
Net Weight(Kg) 90 35 93 38 39 55 55

Model		T6K	T6KL	T10K	T10KL	3T10KL	3T15KL	3T20KL
Capacity		6KVA/4200W		10KVA/7000W			15KVA/10500W	20KVA/14000W
Input	Nominal Voltage	220V				380V
	Voltage Range	176~276VAC				304~478VAC
	Frequency	46~54Hz/56~64Hz
Output	Voltage	220/230/240(1±1%)VAC
	Frequency	50/60Hz(adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz): Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode:60Hz(1±0.2%)
	Current Crest Ratio	3:1
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥7′	Depends on the capacity of the external batteries bank	≥5′	Depends on the capacity of the external batteries bank
	Half Load	≥20′		≥13′
Battery Nominal Voltage		240VDC
Transfer Time		0ms
Overload Capacity		105%~130% 10min, over 150%1min
Communication		RS-232+Intelligent Slot
Operating Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions(WDH)mm		260570717
Net Weight(Kg)		90	35	93	38	39	55	55

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
